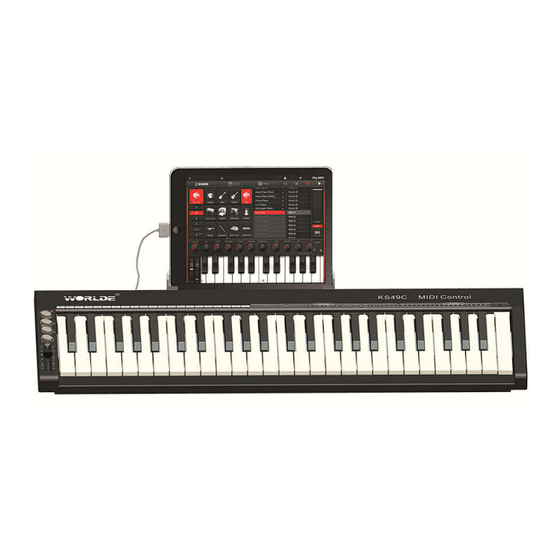

- Page 1 HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 ____________________________________________________________________________________________________________ KS49C-A MIDI CONTROLLER User Manual...
-
Page 2: Table Of Contents
HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 ____________________________________________________________________________________________________________ ■Contents Introduction ..........................3 Features ........................... 3 Keyboard overview ......................... 4 Front panel ..........................4 Rear panel ..........................4 Side panel ..........................5 Basic Functions ........................ -
Page 3: Introduction
Adjust the settings as described in the owner’s manual for your application. Features *49 note keyboard with velocity (Can be edited by WORLDE KS49C-A control editor) *1 x Assignable Pedal Interface (Can be edited by WORLDE KS49C-A control editor) *1 x Master Volume Slider. -
Page 4: Keyboard Overview
HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 ____________________________________________________________________________________________________________ Keyboard overview Front panel Rear panel... -
Page 5: Side Panel
HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 ____________________________________________________________________________________________________________ Side panel Basic Functions ③ ④ ① ② ⑤ 1.‘M.P.V_Mode’ button Switches the control mode of the slider. -
Page 6: Slider
Press the ‘M.P.V_Mode’ button again to enter into Modulation mode, with the ‘M’ indicator on at the same time. The slider can be assigned as 135 controllers by the WORLDE KS49C-A control editor. 3. EDIT button This switches the control mode of OCTAVE, TRANSPOSE and EDIT. -
Page 7: Midi Out Jack
Can be connected to a compatible MIDI device. 7. Continual pedal jack Can be assigned as 135 controllers by the WORLDE KS49C-A control editor. 8. Phones jack (for model with sound source) A pair of stereo headphones can be connected to this jack. -
Page 8: Usb Port
Windows XP(SP2)or higher *G3/G4 accelerator cards are not supported (Windows 98,Me,NT or 2000 not supported) Making detailed settings The following settings cannot be edited on the KS49C-A instrument, so you need to use the WORLDE KS49C-A Control Editor on the included CD. -
Page 9: Global Midi Channel
TEL:86 571 88730848 ____________________________________________________________________________________________________________ Global MIDI Channel Global MIDI channel [1...16] This specifies the MIDI channel which KS49C-A will use to transmit note messages. This should be set to match the MIDI channel of the MIDI application that you’re controlling. -
Page 10: Pedal
HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 ____________________________________________________________________________________________________________ Pedal CC Number [0...127] Specifies the control change number of the control change message that is transmitted. Upper/Right Value [0...127] Specifies the value of the control change message transmitted when you press the pedal all the way downward. -
Page 11: Buttons
HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 ____________________________________________________________________________________________________________ downward. C C Number [0...127] Specifies the control change number of the control change message that is transmitted. Upper/Right Value [0...127] Specifies the value of the control change message transmitted when you move the slider all the way upward. -
Page 12: Keyboard Operation In Edit Mode
HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 ____________________________________________________________________________________________________________ transmit a MIDI message. Key Behavior [Momentary/Toggle] Selects one of the following two modes: Momentary Pressing the button will send a control change message with the On value, releasing the button will send a control change message with the Off value. - Page 13 HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 ____________________________________________________________________________________________________________ Twenty-one keys of the keyboard will function as independent buttons to transmit control change messages. You can specify whether each key is enabled or not, the key type, the control change number, as well as the On and Off value.
-
Page 14: Specifications
HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 ____________________________________________________________________________________________________________ Specifications Connectors: USB connector Power supply: USB bus power mode Current consumption: 100 mA or less Dimensions (W x D x H): 28.27 x7.68 x1.97 inches / 718 x 195 x 50 mm Weight: 63.5 oz / 1800 g...
