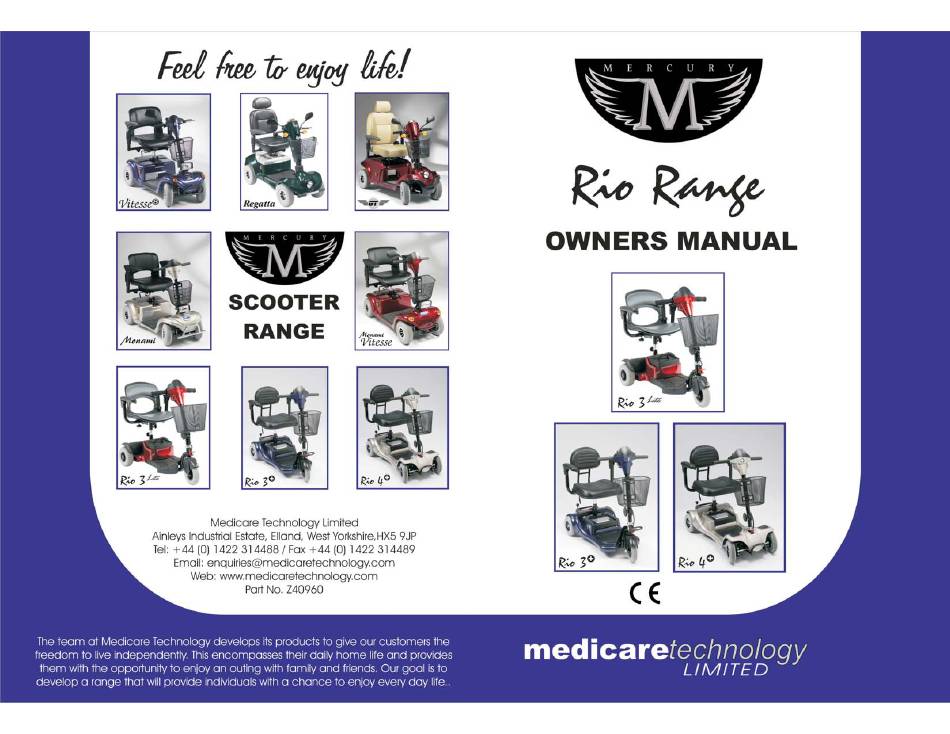

- Page 2 RIO ELECTRIC MOBILITY SCOOTER RIO 3+ RIO 4+ RIO LITE RIO 3+ RIO 4+ RIO LITE RIO 3+ RIO 4+ RIO LITE RIO 3+ RIO 4+ RIO LITE RIO 3+ RIO 4+ RIO LITE RIO 3+ RIO 4+ RIO LITE RIO 3+ RIO 4+ RIO LITE RIO 3+ RIO 4+ RIO LITE RIO 3+ RIO 4+ RIO LITE RIO 3+ RIO 4+ RIO LITE RIO 3+ RIO 4+ RIO LITE RIO 3+ RIO 4+ RIO LITE RIO 3+ RIO 4+ RIO LITE RIO 3+ RIO 4+ RIO LITE RIO 3+ RIO 4+ RIO LITE RIO 3+ RIO 4+ RIO...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. PREFACE …………………………………………………………………………………………….. 2 2. SAFETY NOTICE …………………………………………………………………………………… 3 2.1 Before Driving 2.2 Whilst Driving 2.3 Labelling 2.4 Electromagnetic Interference 3. PARTS INTRODUCTION …………………………………………………………………………… 8 4. OPERATION …………………………………………………………………………………………. 9 4.1 Control Panel 4.2 How to Operate Your Scooter 4.3 How To Set Freewheel Mode 5. -
Page 4: Safety Notice
N Warning Improper usage could result in serious injury F Attention improper usage could lead to injury and/or damage to your scooter. & Suggestion follow these instructions to keep your vehicle in a good operating order. ♦ This manual includes a repair and maintenance record chart and warranty information. Please keep it in a safe place or with the scooter. -
Page 5: Whilst Driving
♦ Be sure someone accompanies you for safety when driving for the first time. ♦ Only use higher speed setting when you are confident that you can easily operate and control your scooter. ¦ The scooter is only to be used by one person at a time Do not carry passengers on your scooter (including children) ¦... -
Page 6: Labelling
wheels stuck. ♦ Please slow down when driving on roads with gradients. ♦ Do not make sudden turns when driving on gravel roads or ramps. ♦ Always lean forward when climbing a steep gradient ♦ Do not travel on gradients exceeding those stated on the diagram overleaf: N WARNING! ♦... -
Page 7: Electromagnetic Interference
This portion of the content will provide the user with basic information that describes the problems with EMI, known sources of EMI, protective measures either to lessen the possibility or exposure or to minimize the degree of exposure, and suggested action should unexpected or erratic movement occur. Attention: It is very important that you read this information regarding the possible effects of electromagnetic interference on your Rio scooter. - Page 8 2.4.2 POWERED SCOOTER ELECTROMAGNETIC INTERFERENCE (EMI) Because EM energy rapidly becomes more intense as one moves closer to the transmitting antenna (source), the EM fields from hand-held radio wave sources (transceivers) are of special concern. It is possible to unintentionally bring high levels of EM energy very close to the control system of the scooter while using these devices.
-
Page 9: Parts Introduction
3. PARTS INTRODUCTION Mercury Rio Electric Scooter Page 8 of 28 Owner’s Handbook (Part Code: Z40968 Rev D) -
Page 10: Operation
4. OPERATION 4.1 CONTROL PANEL Please see the diagram on the right. Speed Dial Horn Button Wigwag Paddle Key Ignition Charger Socket Battery Indicator Power Eye 4.2 HOW TO OPERATE YOUR SCOOTER § Key Ignition § The key ignition acts as the power switch for the scooter. To switch the power on, turn the key clockwise in the ignition. - Page 11 § Braking § Electromagnetic brake: Release the wigwag paddle completely, and the electromagnetic brake will be activated automatically, and the scooter will stop. N Warning When on a gradient NEVER set the vehicle to the freewheel mode. The electromagnetic brakes will not be applied.
-
Page 12: How To Set Freewheel Mode
& Suggestion 1. You should recharge the batteries after each time the vehicle is used to ensure maximum range. The batteries should be charged up at least once a week even if the scooter is not used. 2. After charging or replacing a new battery, drive the vehicle for 2-3 minutes to make sure the battery capacity is sufficient. - Page 13 § Tiller Adjustment § The tiller can be adjusted in to many different positions to suit each driver. § The tiller can be adjusted by following the steps below. Step 1: § Loosen the knob (as being performed in the photo by the lower hand) so the tiller can move.
-
Page 14: Driving On The Road
5. DRIVING ON THE ROAD § Starting and Driving 1. Make sure the seat is installed properly. 2. Make sure the tiller has been secured properly. 3. Fold down the armrests so you can rest your arms on them. 4. Turn the power switch to “ON”. 5. -
Page 15: Battery Charging And Care
§ Main Circuit Breaker (Reset Button) When the voltage in your scooter’s batteries becomes low or the scooter is heavily strained because of excessive loads or steep inclines, the main circuit breaker may trip to protect the motor and electronics from damage. The arrow shows the location of the circuit breaker on the photograph (left). - Page 16 Above: On Board Charging Above: Off Board Charging & Suggestion Do not disconnect the charger cord if charging is not completed. The battery life will be seriously shortened or decayed if the battery is repeatedly used without being fully charged. Therefore be sure to charge the battery fully every time.
-
Page 17: Charger
6.2 CHARGER The charger supplied with the Rio has an LED which changes colour depending on its status: • If the LED is lit ORANGE then the charger is switched on and charging • If the LED is lit GREEN then the charger is switched on and has finished the bulk of its charging and the batteries can be used. - Page 18 § Charging the Batteries § Using the charger supplied with the scooter, the charging duration is about 8 hours. § However, to ensure optimum performance we recommend a 12-hour charge. § We also recommend that the batteries are not charged for more than 24 hours. §...
-
Page 19: Inspection And Maintenance
(-) on the other battery 7. INSPECTION AND MAINTENANCE 7.1 DAILY CHECKING Check the following items before driving. If you find anything abnormal, contact your Medicare Technology dealer for further inspection or advice before using the scooter. Item Inspection Content ♦... -
Page 20: Regular Checking Record
Go to your dealer for inspection and maintenance if you find anything wrong. 7.2 REGULAR CHECKING RECORD To make sure your scooter is correctly serviced, take it to your Medicare Technology dealer for regular maintenance checks. This should be at six monthly intervals after an initial inspection after one month. Your dealer may charge a fee for this. -
Page 21: Maintenance
& Suggestion Ask for help from your dealer to inspect or replace the fuse, since the tiller shroud has to be removed first before you can replace the fuse. § Tyres § The condition of the tyres depends on how you drive and use your scooter. §... -
Page 22: Moving About
& Suggestion Please store the scooter in a location where it is out of direct sunlight, rain, or dew. When storing for a long time, charge the battery to full power and then disconnect the battery terminal. For more details contact to your dealer. -
Page 23: Assembling The Scooter
7.8 ASSEMBLING THE SCOOTER & Suggestions The assembly process is essentially the disassembly process in reverse. First study the text and photographs in the disassembly procedure before re-assembling the scooter. 1. Position the front and rear sections of the Rio. 2. - Page 24 4. Lock the front wheel and tiller by pulling the wheel lock catch down. 1. Unscrew the 3. Loosen the tiller 2. Lift up the battery pack tightening knob using the handle (as shown adjustment knob. Lower securing the seat the tiller and retighten above) the knob to secure.
-
Page 25: Troubleshooting
8. TROUBLESHOOTING If you have trouble with your scooter, you can inspect the following before taking your scooter to the dealer: If you cannot solve the problem, contact your dealer for assistance. Problem Symptom Remedy Scooter will not switch on Batteries not connected Check batteries are connected Rear and front sections not... - Page 26 Model Reference Rio 3+ Model Reference Rio 3+ (continued) Dimension 950 x 470 x 870mm Control Method Wigwag paddle (L x W x H) 37½ x 18½” x 34¼ ” Total Weight 42.3kg / 93lb Top Speed (Forward) 6.4kph / 4.0mph Without battery 32.5kg / 71.5lb Reverse...
-
Page 27: Warranty
For more detail, please see the Warranty Conditions below. Warranty Conditions: Any work or replacement part installation must be carried out by an authorized Medicare Technology dealer / service agent. To apply the warranty should your scooter require attention please contact the designated service agent listed below. - Page 28 As well as the above, there are a number of larger scooters and general scooter accessories available from your Medicare Technology dealer Your Rio scooter is a Mercury branded product. For more information contact: Mercury is a brand of Medicare Technology Ltd. Medicare Technology Medicare Technology is a high quality ISO 9001 Ainley’s Industrial Estate,...
- Page 29 NOTES AND ADDITIONS Mercury Rio Electric Scooter Page 28 of 28 Owner’s Handbook (Part Code: Z40968 Rev D)
