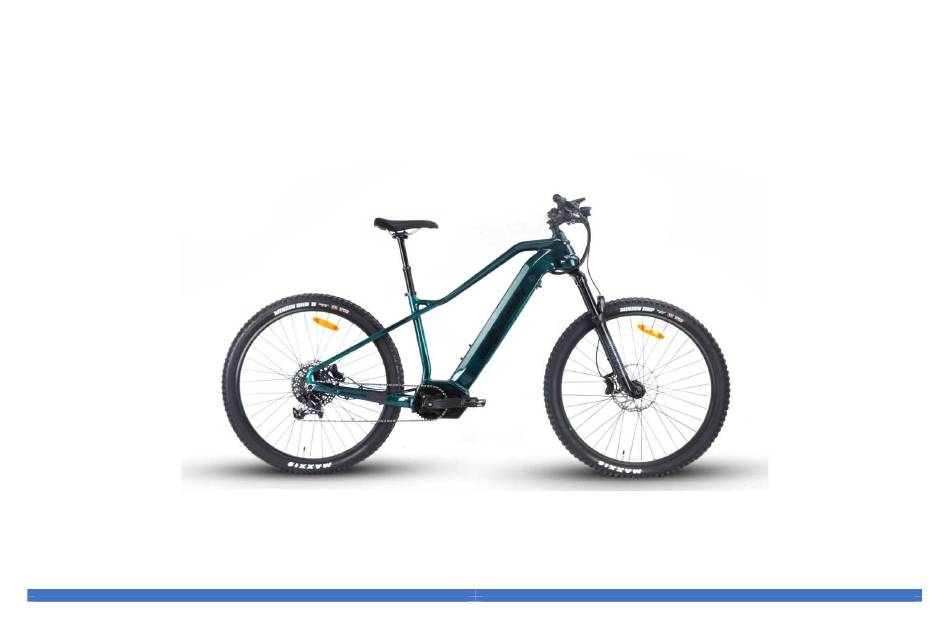

- Page 1 Greenwood MANUAL WATTWHEELS LTD...
-
Page 2: Table Of Contents
RIDER SEAT HEIGHT & COMFORT PAGE 10 BATTERY & CHARGING PAGE 11-12 USEFUL TIPS PAGE 13 PARKING STORAGE & TRANSPORT PAGE 14 SAFETY CHECKS & BASIC TROUBLESHOOTING PAGE 15-16 ERROR CODES PAGE 17 SERVICING PAGE 18 WARRANTY INFORMATION PAGE 19-20 WATTWHEELS LTD... -
Page 3: Introduction
WELCOME First off, welcome to the Wattwheels family! We’re so happy to have you on board! You have picked a great bike and, in this manual, we’re going to break down the basics to make sure that it remains in tip top shape and performs to the highest standard. -
Page 4: Installation
Wattwheels makes every effort to ensure accuracy of its documentation and assumes no responsibility of liability if any errors or inaccuracies appear within. INSTALLATION (IF REQUIRED): 1. COMPLETLEY CHARGE THE BATTERY BEFORE THE FIRST USE (Red light is on when battery is charging, green when fully charged. Approx. time is around 4-5 hours) 2. -
Page 5: Lcd Display
LCD DISPLAY FEATURES The image shows the various features and information displayed on the LCD display. The display is controlled using the 5-button remote mounted on the left side of the handlebar. WATTWHEELS LTD... - Page 6 PAS (Pedal Assist Modes) Your Greenwood has 5 levels of PAS. PAS levels 0-5 will be displayed as OFF, ECO, TOUR, SPORT, TURBO and BOOST. ECO is the first pedal assist level and will give you some slight assistance. Press the plus and minus buttons on the control panel to toggle between the levels. As you select the higher levels, the assistance will increase with BOOST basically doing all the work for you.
- Page 7 Select the return option to return to the main menu. Please see the separate display manual for more detailed information Please contact your local retailer if you need any assistance on this. Alternatively, you can check Wattwheels website for up-to-date instructional videos.
-
Page 8: Brakes, Shift Sensor, Tyres, Chain
RIDING RANGE The range of your Greenwood is the distance the bike will travel on a single full charge of the battery pack. The range values in this manual are estimates based on expected usage characteristics. Some of the factors which effect range include changes in elevation, speed, payload, and acceleration, number of starts and stops and ambient air temperatures. - Page 9 As mentioned, it is good to do a few smaller rides first to get familiar with the bike and the range you can get depending on what settings you have the bike on. Pay close attention to the section in looking after your battery to prolong and maximise its life. WATTWHEELS LTD...
-
Page 10: Rider Seat Height & Comfort
While sitting on the bicycle with one pedal at its lowest point, place the ball of your foot on that pedal. The correct saddle height will allow the knee to be slightly bent in this position. WATTWHEELS LTD... -
Page 11: Battery & Charging
DO NOT spray with high-pressured water as it may cause damage or possible short-circuiting. Only charge the battery with the supplied charger as others may not function properly, and this increases the possibility of fire or explosion. Do not store the charger or battery in a wet/damp place or in direct sunlight. WATTWHEELS LTD... - Page 12 Lithium-ion batteries can last longer if you recharge with 10-15% of the charge remaining to prevent damage to the cells. Keep both the battery and charger out of the reach of children and if there appears to be an issue with the charger or battery, stop use immediately and contact either the manufacturer or Wattwheels at admin@wattwheels.co.nz BEST PRACTISES FOR EXTENDING BATTERY LIFE o assist the motor by pedalling when climbing hills and accelerating from a stop.
-
Page 13: Useful Tips
• Please don't dismantle and repair parts by yourself. Please go to your local bike shop. This bike comes with a manufacturer’s warranty (document included) so for warranty claims please contact Wattwheels and we will arrange a service agent close to you to look at the bike. We carry spare parts so anything electrical that a standard bike shop doesn’t have we will ship to your nearest retailer. -
Page 14: Parking Storage & Transport
Greenwood must be parked in accordance with local rules and regulations. o If you must park outdoors in rain, or wet conditions you should only leave your Greenwood outside for a few hours. Please thoroughly dry the bike then proceed to park the bike in a dry location afterwards to allow all the systems to dry out. -
Page 15: Safety Checks & Basic Troubleshooting
Ensure mid-motor is spinning smoothly and the motor bearings are in good working order. Throttle o Ensure battery is charged before use. 11. Battery Pack o Ensure there is no damage to battery pack. o Lock battery to frame and check to see that it is secured correctly. WATTWHEELS LTD... - Page 16 4. Repair or replace 1. Damaged motor bearings, cogs or seals 1. Replace Wheel or motor makes 2. Damaged wheel spokes or rim 2. Repair or replace strange noises 3. Damaged motor wiring 3. Repair or replace motor. WATTWHEELS LTD...
-
Page 17: Error Codes
ERROR DECTECTION Your Greenwood is equipped with an error detection system integrated into the LCD display and motor controller. In the case of an electronic control system fault an error code should appear on the display. The error codes are listed below and can help detect what the issue is with your bike. If your bike has an error code displayed at any time it is recommended that you stop using the bike and contact your local Wattwheels dealer. -
Page 18: Servicing
To ensure your bike remains in great shape it requires regular servicing. Failure to do so may void any potential warranty claims. Please retain your receipts for proof of service 2-3 MONTHS: 12 MONTHS: DATE: DATE: STORE/MECHANIC: STORE/MECHANIC: SIGNATURE: SIGNATURE: 6 MONTHS: 24 MONTHS: DATE: DATE: STORE/MECHANIC: STORE/MECHANIC: SIGNATURE: SIGNATURE: WATTWHEELS LTD... -
Page 19: Warranty Information
Wattwheels, the component will be replaced during the warranty period. Wattwheels will have no obligation under this warranty in the event the product is damaged or destroyed as a result of any of the following events: components used on a non Wattwheels product, damage, or destruction by abuse; collision; theft; improper maintenance or mishandling of the product; natural forces such as... - Page 20 Proof of purchase must be provided. The original Purchaser must contact the place of purchase or a Wattwheels representative to discuss the problem with the product. The original Purchaser is responsible for the return of the product, undamaged in transit, to Wattwheels for warranty work and for the costs associated with shipping the component(s) when returning them.
- Page 21 Unless otherwise provided, the sole remedy under the above warranty, or any implied warranty, is limited to the replacement of defective parts at the sole discretion of Wattwheels. In no event shall Wattwheels be responsible for direct, incidental, or consequential damages, including, without limitation, damages for personal injury, property damage, or economic losses, whether described on arrival and for the warranty period.
