Summary of Contents for Daewoo HEA1899

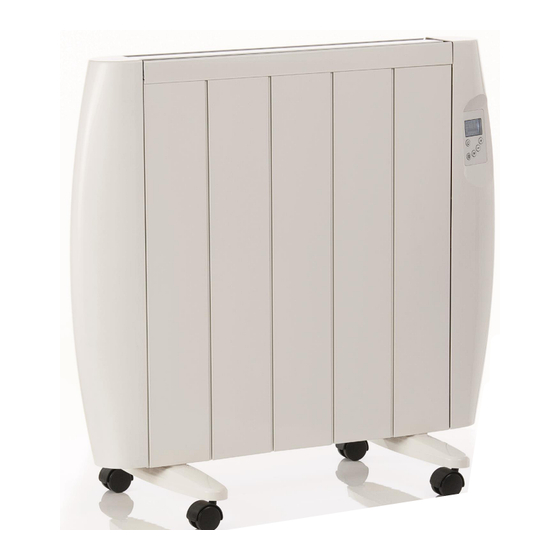

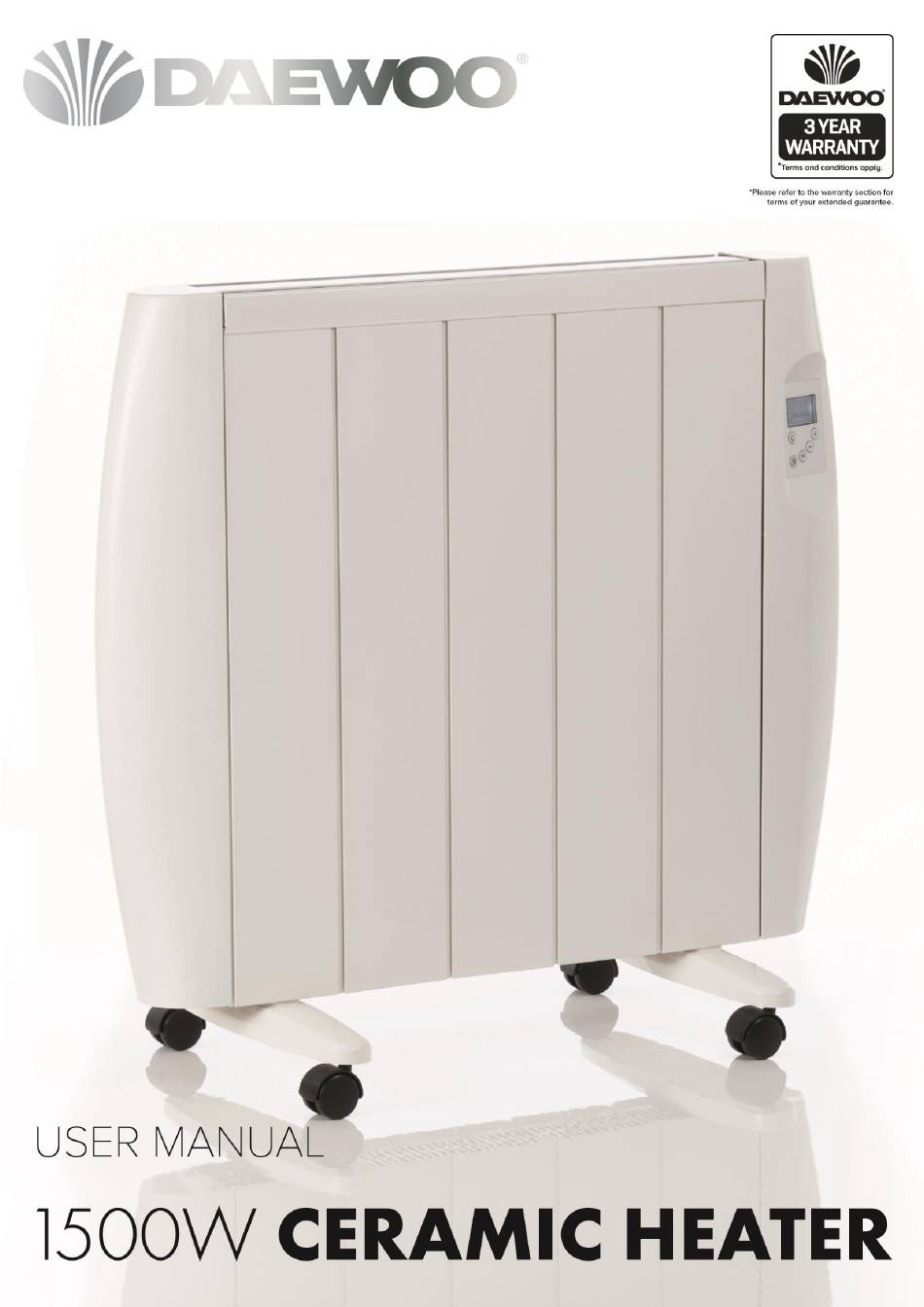

- Page 1 1500W 5 Fin Ceramic Radiator Model No. HEA1899 User Manual IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
- Page 2 1500W 5 Fin Ceramic Radiator Model No. HEA1899 User Manual READING AND STORING THE USER MANUAL Before using this product, please read through this manual carefully paying particular attention to the safety instructions. Failure to do so may result in personal injury or damage to the product.
- Page 3 1500W 5 Fin Ceramic Radiator Model No. HEA1899 User Manual • Close supervision is required when using this appliance near children. • DO NOT leave this appliance within reach of children. • This appliance can be used by children aged from 8 years...
- Page 4 1500W 5 Fin Ceramic Radiator Model No. HEA1899 User Manual surface or fixed to the wall as described in this manual. • DO NOT use this appliance outdoors. • It is imperative to unplug the power cord after the appliance has been used, before it is cleaned and whilst being repaired.
-
Page 5: This Appliance Must Be Earthed
1500W 5 Fin Ceramic Radiator Model No. HEA1899 User Manual • The appliance should not be installed in areas which have a fire-risk, such as garages, stables or wooden sheds; this is applicable also for rooms in which highly inflammable gasses or dust can develop. - Page 6 1500W 5 Fin Ceramic Radiator Model No. HEA1899 User Manual Explanation of Symbols The following warning symbols or words are used in this instruction manual: Products labelled with UK Conformity Assessment identifies products conforming to UK statutory requirements. Products labelled with this symbol conform to applicable provisions of the European Economic Area.
- Page 7 1500W 5 Fin Ceramic Radiator Model No. HEA1899 User Manual Description of Parts 1. Control Panel 2. Radiator Fins 3. Wheel Plates (x2) 4. Castors (x4) 5. Power Switch (rear) 6. Small Screws (x4) 7. Clock 8. Program Selection 9. Temperature 10.
- Page 8 1500W 5 Fin Ceramic Radiator Model No. HEA1899 User Manual Before Using Your Ceramic Radiator Before fitting, retain all packaging until all the parts are present by checking against the parts list – see Description of Parts above. Discard packaging responsibly.
- Page 9 1500W 5 Fin Ceramic Radiator Model No. HEA1899 User Manual B. Wall-mounting Your Radiator Positioning of Your Radiator Mount the radiator securely on a solid wall using the supplied mounting brackets following the instructions below, ensure that the wall is stable and not subject to vibrations.
- Page 10 1500W 5 Fin Ceramic Radiator Model No. HEA1899 User Manual 1. Using a pencil, mark the four hole in the positions on the wall as shown in the diagram Fig (b) below. Ensure the positions on the wall follow the recommended clearances around the heater as shown in Fig.
- Page 11 1500W 5 Fin Ceramic Radiator Model No. HEA1899 User Manual 4. Hang the radiator by the lower holes in the back of the radiator onto the lower support of the brackets, once the unit is secure, push the radiator up against the upper support of the brackets.
- Page 12 1500W 5 Fin Ceramic Radiator Model No. HEA1899 User Manual Child Safety lock If the unit controls are not used for 1 minute, the display will dim and go into child lock mode. Press the Increase (21) and Decrease (22) buttons together to unlock the control panel.
- Page 13 1500W 5 Fin Ceramic Radiator Model No. HEA1899 User Manual Setting the Temperature 6. Press Increase (21) and Decrease (22) to set the desired Temperature (9), the Heat Indicator (11) will illuminate whilst heating and go out when the set temperature has been is reached. The Heat Indicator (11) will go on and off to show the set temperature is being maintained, this is quite normal.
- Page 14 1500W 5 Fin Ceramic Radiator Model No. HEA1899 User Manual Setting example: Current time: 0800 Day 1 (Monday) Comfort mode: 0500-0100 ECO mode: 0100-0500 Pre-set Program P2: This program has 2 different settings one on Monday to Friday (Day 1-5) and the other Saturday to Sunday (Day 6-7).
- Page 15 1500W 5 Fin Ceramic Radiator Model No. HEA1899 User Manual Pre-set Program P3: This program allows you to set different setting on each day individually. 1. Press the Mode (16) button until program P3 is displayed. 2. Press the Settings (17) button to modify the program P3, the first hour bar and modes will flash, and Day 1 will illuminate.
- Page 16 1500W 5 Fin Ceramic Radiator Model No. HEA1899 User Manual Care and Use of Your Ceramic Radiator • Always disconnect the heater from the mains power supply and allow it to cool before cleaning. • Clean the outside of the heater with a clean damp cloth. Never clean with harsh or abrasive cleaners.
- Page 17 1500W 5 Fin Ceramic Radiator Model No. HEA1899 User Manual IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
- Page 18 1500W 5 Fin Ceramic Radiator Model No. HEA1899 User Manual ErP Data Model identifier(s): HEA1899 Item Symbol Value unit Item unit Heat output Type of heat input, for electric storage local space heaters only (select one) Nominal heat output [no]...
- Page 19 1500W 5 Fin Ceramic Radiator Model No. HEA1899 User Manual Notes IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
-
Page 20: Warranty
As part of our commitment to quality, we are offering you an extra 2 years warranty in addition to your 1 year guarantee Your Daewoo product is guaranteed for 1 year from the date of original purchase, with proof of purchase or receipt. If any defect should occur due to faulty workmanship or material, your faulty product should be returned to the place of purchase, replacement or refund is at the discretion of the retailer.
