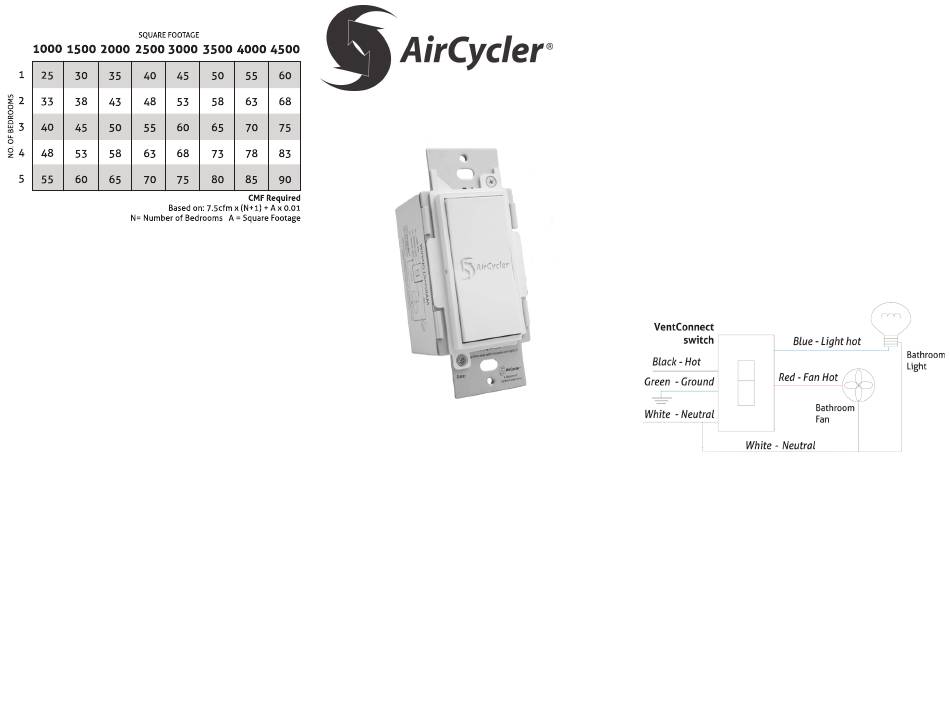

AirCycler VentConnect 1000 Installation & User Manual

INTRODUCTION
APPENDIX A - ASHRAE 62.2 Reference Chart

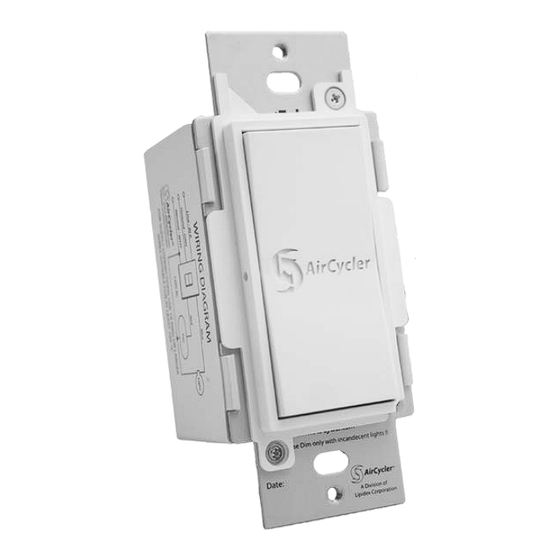

The VentConnect switch is designed to control
an exhaust fan and light in conjunction with the
AirCycler g3 family of controllers
CONNECT
SAFETY CONSIDERATIONS
Read and follow manufacturer's instructions
carefully. Follow all local electrical codes during
installation. All wiring must conform to local and
national electrical codes. Improper wiring or
installation may result in personal injury or product
and property damage.
INSTALLATION CONSIDERATIONS
The switch requires an always hot 110VAC feed -
black wire and white neutral wire. The blue 110VAC
switch leg (load) powers the light circuit. The red
110VAC switch leg (load) powers the fan.
WIRING DIAGRAM
VentConnect™
INSTALLATION & USER'S MANUAL
SPECIFICATIONS
Operating voltage: 120 VAC ± 10%
Light: 450 Watts @ 120 VAC
Fan: 150 Watts @120 VAC
2.5" Minimum wall box (recommended)
This product may be protected by one or more
of the following patents and patents pending:
EXHAUST FAN EQUIPMENT
8185244, 7258280, 20120252345,
We always recommend installing an ASHRAE 62.2
Canada 2562062, 2822516
-approved exhaust fan with our switches. Fans
should operate at a certified sound level of 3.0
Technical Support:
sones or less.
info@aircycler.com
CONNECT
BULB COMPATIBILITY
WIRELESS WHOLE HOUSE
AIRCYCLER®
We always recommend checking with bulb
411 PLAIN STREET
manufacturer to confirm bulb and switch type
VENTILATION SYSTEM
MARSHFIELD, MA 02050
compatibility. Dimmable LEDs are recommended.
