Summary of Contents for Fairport PP33 Honda-GX120

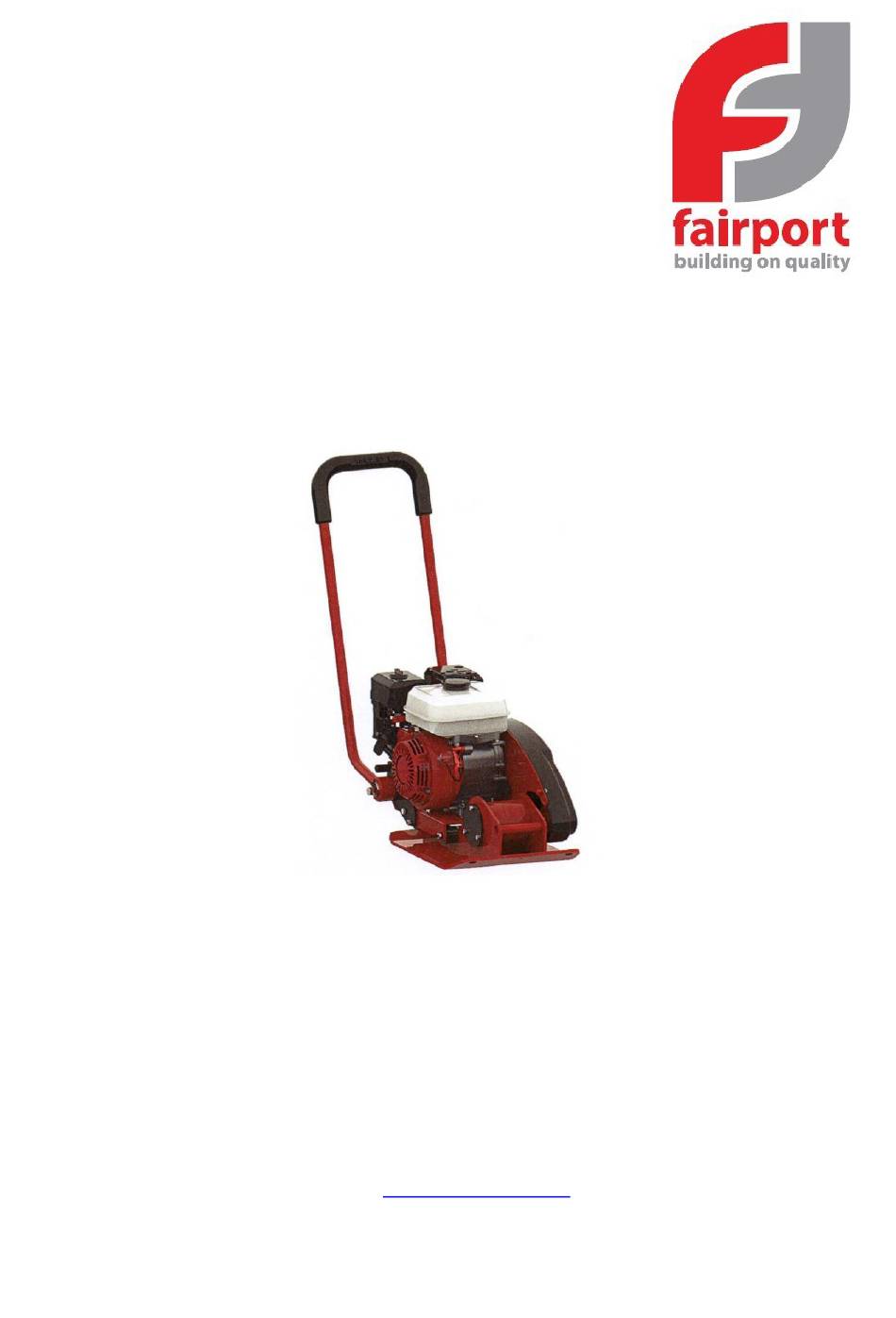

- Page 1 OPERATION, SPARE PARTS AND SERVICE MANUAL PP33 Honda-GX120 (Single Direction Plate Compactor) FAIRPORT CONSTRUCTION EQUIPMENT LIMITED BLAGDEN STREET SHEFFIELD S25QS ENGLAND Tel: +44 (0) 114 276 7921 Tel: +44 (0) 114 272 0965 Email: sales@fairport.uk.com Web: www.fairport.uk.com...
-
Page 2: Table Of Contents
Contents Page Safety Decal Locations Technical Data Using The Machine For The First Time Routine Maintenance Starting The Engine Operator Instructions Vee Belt Adjustment Parts List Drive System 9-10 Handle And Engine Plate 11-12 Baseplate 13-14 Water Sprinkler Kit Rubber Mat Kit 10 Warranty Conditions and Claims Procedure 11 Repairs and Estimates 12 Environment... -
Page 3: Safety
Turn off fuel when not using machine. • • Wear protective footwear, ear defenders and gloves. Comply with site safety regulations. • Check condition and tightness of anti-vibration mounts between engine plate and base • plate before lifting. Safety Pictograms Used On Fairport Equipment... -
Page 4: Decal Locations
2. Decal Locations... -
Page 5: Technical Data
3. Technical Data Engine ENGINE ENGINE POWER MODEL MANUFACTURER MODEL (HP/kW) PP33-120 Honda GX120 4.0/2.9 Dimensions MODEL HEIGHT – H LENGTH – L WIDTH – W CONTACT WEIGHT (mm) (mm) (mm) AREA (sq. m) (kg) PP33-120 0.099 Performance MODEL CENTRIFUGAL COMPACTION VIBRATION FORCE (kN) -
Page 6: Using The Machine For The First Time
4. Using The Machine For The First Time When the machine is delivered from Fairport it will have no oil in the engine. Please refer to the Engine Manufacturers Manual issued with the machine for instructions on filling the engine with the correct type and quantity of oil. -
Page 7: Operator Instructions
7. Operator Instructions Read section (1) - Safety. NOTE: Drive between engine and vibrator is through a centrifugal clutch. Vibration will commence as engine speed is increased. Position the engine speed control lever to give required speed (usually full speed). Commence compaction. -
Page 8: Parts List 9 Drive System
9. Parts List – Drive System... - Page 9 9. Parts List – Drive System Item No. Part No. Description W81925 Honda GX120 W14681 Engine Spacer W14810 Belt Guard Back Plate W466/5/12 5/16 UNF x ¾” Csk Setscrew W87218 Vee Belt W87061 Clutch W525/4/16 Retaining Washer W432/6 M6 Spring Washer P80167 1/4 UNF x 1”...
-
Page 10: Handle And Engine Plate
9. Parts List – Handle And Engine Plate... - Page 11 9. Parts List – Handle And Engine Plate Item No. Part No. Description W14828 Handle W4833 Retaining Washer W14831 Retaining Stud W88922 R Clip W14836 Locating Pin W14832 AV Mount W418/10 M10 Washer W432/10 M10 Spring Lock Washer W440/10 M10 Nut W14835 Bedplate Extension W14829...
- Page 12 9. Parts List – Baseplate And Vibrator Assembly...
- Page 13 9. Parts List – Baseplate And Vibrator Assembly Item No. Part No. Description Base W14609 Eccentric Weight W14610 Bearing W81041 Oil Seal W81153 End Cap (Pulley Side) W14601 Pulley W14834 M12 X 60 Hex-Head Bolt W435/12/60 M12 Penny Washer W526/12/40 M12 Spring Lock Washer W432/12 W432/6...
- Page 14 9. Parts List – Water Sprinkler Kit...
- Page 15 9. Parts List – Water Sprinkler Kit Item No. Part No. Description W14776 Lifting Assy W55031 Water Bottle W420/6 M6 Washer W432/6 M6 Spring Lock Washer W440/6 M6 Plain Nut W87857 ¼” BSP Lock Nut P83584 ¼” BSP Bonded Seal W55044 Tank Clamp W87864...
- Page 16 10. Warranty Conditions and Claims Procedure All products supplied by Fairport Construction Equipment Ltd (hereafter referred to as FCE) are warranted to be free of defects due to faulty materials or workmanship for a period of 12 months from the date of original despatch from FCE or as specified below: Hydraulic hoses and hydraulic couplings –...
- Page 17 11. Repairs and Estimates When returning a machine, or an assembly for repair, always include an Advice Note quoting model and serial number of the machine. An official order must also be forwarded to FCE giving detailed instructions. No repair work can be carried out unless covered by an official order. An estimate will be submitted before proceeding with any repair.
- Page 18 EC Declaration of Conformity WE, FAIRPORT CONSTRUCTION EQUIPMENT LTD, BLAGDEN ST, SHEFFIELD, SOUTH YORKSHIRE, S2 5QS DECLARES THAT THE PRODUCT: PP33 FITTED WITH A HONDA GX120 ENGINE ENGINE POWER; 4.0HP/2.9kW at 3600RPM SERIAL No. ……………………………… CONFORMS TO THE FOLLOWING DIRECTIVE: 89/336/EEC, 89/392/EEC, 91/368/EEC, 2000/14/EC NOTIFIED BODY;...
