Summary of Contents for POWEROLOGY PPBCHA40

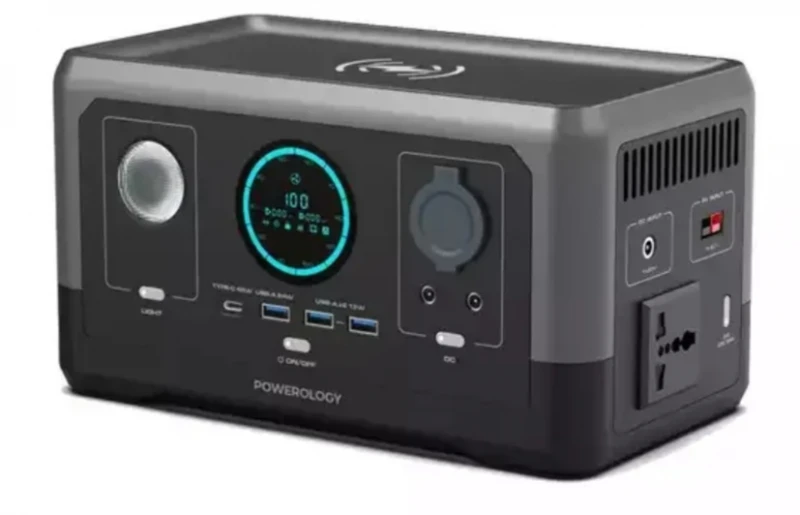

- Page 1 Powerology Portable Power Generator Fast Charging 76800mAh 300W SKU: PPBCHA40...
-
Page 2: Table Of Contents
Table of Contents Safety Instructions..................2 Instructions for Use, Safety, and Maintenance......... 3 Charging the Power Generator..............9 Specifications....................12 FAQ ........................13 Package Contents..................15 Accessories...................... 16 App Connectivity................... 16 Warranty......................22 Contact Us......................22... -
Page 3: Safety Instructions
Before installing and using the product, please carefully read this User Manual to guarantee correct usage and keep it secure for future reference. Warning Please ensure the product remains dry and is kept at a distance from any sources of fire. Do not disassemble, puncture, or apply excessive force to the product. -
Page 4: Instructions For Use, Safety, And Maintenance
When the product fails, please disconnect the portable power supply from the socket before carrying out any guided maintenance operations to reduce the risk of electric shock. Change the internal battery in a well-ventilated place and do not obstruct air circulation. Under extremely conditions, liquids may be sprayed out from the battery. - Page 5 the ports, buttons, displays, and more. For technical specifications and operational guidelines of this advanced portable power station, the information is presented in a structured format within. To charge the portable power generator, you may use either an AC adapter or a compatible solar panel.
- Page 6 Power Level Indicator This indicator displays the State of Charge (SOC) as each grid represents 10 % power. It is crucial to recharge the portable power generator when the battery level is below 20 %. Current Output This feature exhibits the real-time power output of the portable power generator in watts (W).
- Page 7 Fast Charging Type-C Port Utilize the Type-C port for expedited charging of devices, including those as advanced as the MacBook Pro. Devices that support Type-C connectivity can be charged via this port. The output indicator for the USB/Type-C will automatically illuminate upon activating the Power key (this output operates concurrently with the USB port) DC Output Activation of the DC switch is signified by the illumination of the DC...
- Page 8 Operations will recommence automatically once the temperature of the core or the affected port returns to normal levels. LED Light Indicator The LED light icon on the display is designed to turn on concurrently with the activation of the light's illumination feature. Power Button To activate the power generator, press and hold the switch for 2 seconds, which will also illuminate the display.
- Page 9 toggling the DC ON/OFF button. The status of the power is indicated by the button's light, which will either be on or off. This switch operates two DC 5521 ports and one car charger port. To conserve energy and maintain battery integrity when the DC outputs are not required, switch off the power supply.
-
Page 10: Charging The Power Generator
his device charges the devices with a voltage of 110V (120-100V range) / 220V (240-200V range) with a total output power of 700W. Before connecting additional devices, verify their power and voltage requirements to prevent improper functioning or damage due to excessive power. - Page 11 Method 1: DC INPUT PV INPUT 100W (Max.) (hours 3 > Charging time) ON/OFF DC INPUT PV INPUT ON/OFF DC charging cable To charge the power generator, insert one end of the supplied adapter cable into the DC port (as indicated in the accompanying image) and connect the other end of the cable to the electrical outlet Method 2: DC INPUT...
-
Page 12: Specifications
Important Note: Do not attempt to charge the portable power generator with the car charger while the vehicle's engine is off. Doing so can lead to excessive discharge of the car’s lead-acid battery, potentially preventing the engine from starting. Method 3: The portable power generator can be charged utilizing the MC4 interface of a solar charging panel, as demonstrated in diagram 3. - Page 13 Output 300W (Max. 600W) 110V/220V (50Hz/60Hz) AC Output 5V / 9V / 12V (Max. 24W) USB-A1* 1 Output 5V (Max. 13W) USB-A2* 2 Output 5V / 9V / 12V / 15V (Max. 45W) Type-C Output 11V to 16.8V / Max. 8A Car Charger Output 11V to 16.8V / Max.
-
Page 14: Faq
How to safely use the portable power generator? Answer: To ensure the safe operation of the portable power generator, it is essential to use it within its specified operating temperature range. Exceeding this range may compromise the power station's safety and efficiency. It is important to note that the power generator is not waterproof. - Page 15 How to store and transport the portable power generator? The portable power generator should be stored in a location inaccessible to children. In the event a child ingests any parts of the device, seek medical attention, immediately. Before storing the product, ensure the device is charged to prevent battery damage from low power levels.
-
Page 16: Package Contents
Should the battery fail to power on due to complete discharge, do not attempt to disassemble the power unit yourself; instead, responsibly dispose of it according to local regulations. How to correctly maintain the portable power generator? Avoid storing the portable power generator in environments where the room temperature exceeds 60°C or drops below -20°C. -
Page 17: Accessories
Accessories Car Battery Clamps Solar Panel Charge Cable (Output) (MC4 to Anderson Input) App Connectivity Download and Installation To download and install the App: Search for the App name “Smartlife” in the App Store and Google Play. Scan the provided QR code using Android / IOS your smartphone. - Page 18 Registration can be completed using your email address or cell phone number, with the country/region defaulting to your cell phone system's settings. You have the option to manually adjust the country /region during the registration process; however, this cannot be altered once registration is finalized.
- Page 19 Adding Equipment Begin by holding down the Wi-Fi on/off button on the mobile power unit until the Wi-Fi icon on the screen starts blinking, indicating it is ready to connect. Connecting a Powered Device with Wi-Fi Enable both Bluetooth and Wi-Fi features. Navigate to the "Enter Wi-Fi password"...
- Page 20 Select the option to connect your device. Once the connection is initiated, wait for the confirmation. Upon a successful connection, the mobile power unit will emit an audible “drop” sound. Connecting a Powered Device without Wi-Fi Method 1 The user can utilize a Bluetooth connection to control the power supply as long as you don't reset the power IoT.
- Page 21 Step 1: Activate the hotspot feature on the smartphone. Enable “Allow Others to Join”. Step 2: Connect your smartphone hotspot. Step 3: Reset the device via the IoT button. Step 4: Utilize the “Smartlife” app to search for and add devices. Step 4 Step 2 Step 3...
- Page 22 Power Level DC Output Switch AC Output Power Lighting type switch AC Output Switch AC Input Power AC Output Curve AC Input Curve Solar Input Power USB and Wireless Charging Solar Input Curve Output Switch Go to the Settings page Switching temperature units Switching charging speed Switching output frequency...
-
Page 23: Warranty
Warranty Products that you buy directly from our Powerology website or shop come with a 24-month warranty. The 24 months warranty applies to products purchased directly from our Powerology website or store. If Powerology products are bought from any of our verified retailers, then the product is eligible for only 12 months warranty.
Need help?
Do you have a question about the PPBCHA40 and is the answer not in the manual?
Questions and answers
Hello PPBCHA40 I have a model device and it doesn't charge and the device is definitely not opened, I have to reset, if I have to reset, how can I do it? please help you .
To reset the POWEROLOGY PPBCHA40 device, press and hold the IoT button for an extended period. This will reset the Wi-Fi, allowing you to proceed with reconnection steps. If the issue persists, check the power connections and ensure proper charging sources are used.
This answer is automatically generated
@Mr. Anderson Which one is the IoT button, please can you take a picture, thank you
I have ppbcha40 i want make reset ,how is reset?
To reset the POWEROLOGY PPBCHA40, press and hold the IoT button for an extended period.
This answer is automatically generated
@Mr. Anderson Which one is the IoT button, please can you take a picture, thank you
