1. SPECIFICATIONS
Single-phase control board with integrated radio. Outputs
indicated by LEDs. Flashing light output 220Vac and courtesy
light contact. Predisposition for external radio. Reversing
switch. Adjustment potentiometers for strength, sensibility and
automatical time-closing. Connection for encoder, limit switch
for closing and opening.
It has two independent safety inputs, one for a standard
photocell with protection in closing and the other with
protection in opening where you can insert a resistive band.
It has inputs for start and stop.
It has two buttons for an easy installation that work with
deadman.

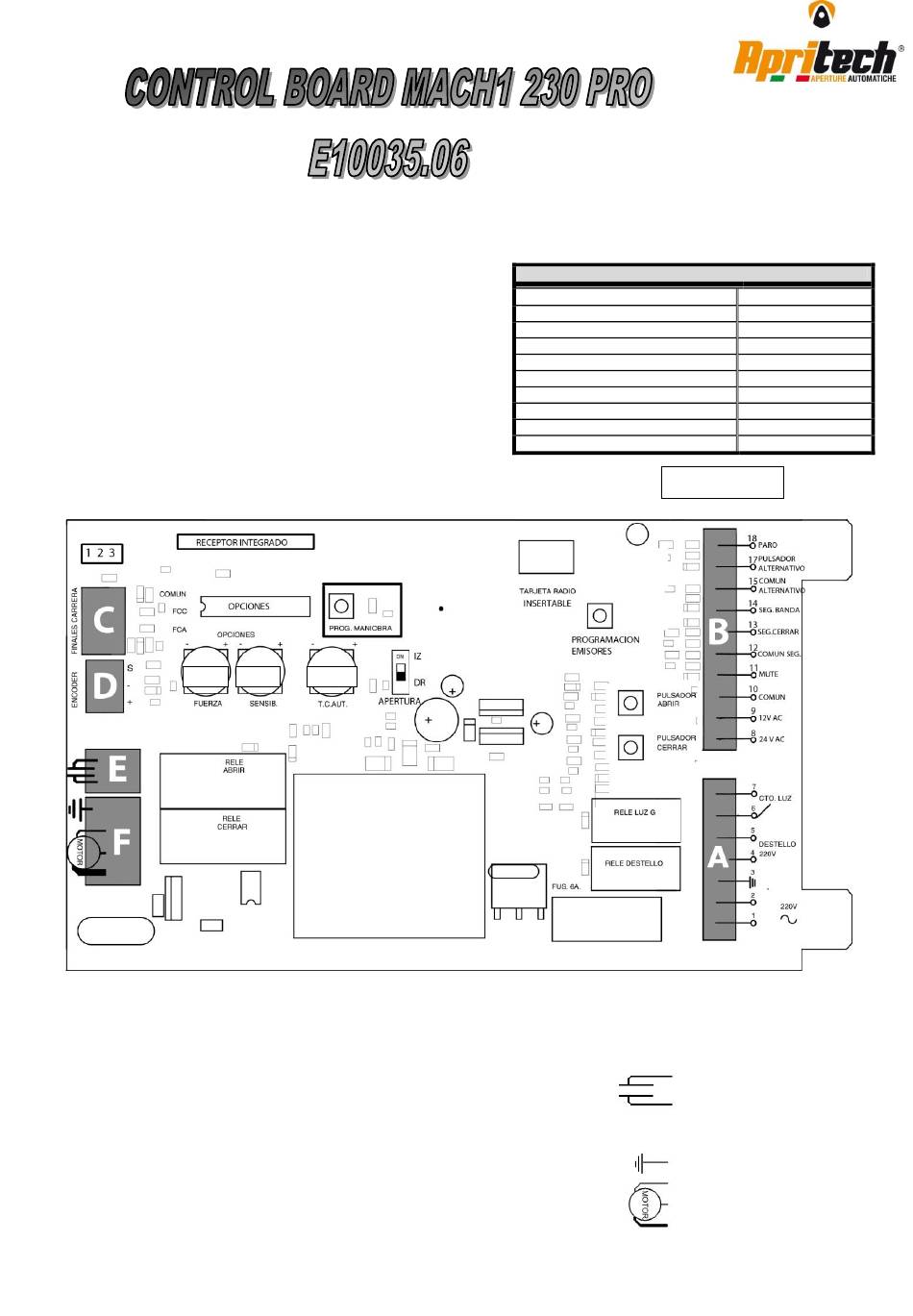

2. TERMINALS DESCRIPTION
RED
A
. POWER
1
Power 220Vac
2
Power 220Vac
3
Ground
4
Flashing light input, clean contact
5
Flashing light input, clean contact
6
Courtesy light input, clean contact
7
Courtesy light input, clean contact
BLUE
GREEN
B.
SIGNALS 12V-24V
8
24V AC
9
12V AC
10
Common AC
11
Photocells test
12
Common security
13
Closing security
14
Band security
15
Alternative common
17
Start
18
Stop
C
. LIMIT SWITCH
COMMON (Blue)
FCC Limit switch closing (Black)
FCA Limit switch opening (Brown)
T E C N I C H
A L S P E C I F I C A T I O N S
Power
Motor power
Max motor current
Accessories Power
Courtesy light
Flashing Light
Normal operation time
Automatic closing time
Radio receiver
Working temperature
Table Nº 1
D.
ENCODER
-
Negative power (Black)
+
Positive power (Red)
S
Signal (Green)
E.
MOTOR TERMINALS
Motor capacitor
Motor capacitor
F.
MOTOR TERMINALS
Ground (Yellow-Green)
Motor phase (Black)
Motor phase (Red)
Motor common (Blue)
220Vac 10%
220Vac
2,5 A
24v 150mA
Contact N.O (5A)
220Vac (5A)
Max 2 min.
From 3 sec. to 2 min.
Integrated
From -20 to 70ºC
