Elite fusion LIGHTING LB-2834-5C-DMX Quick Start Manual

Wall Control
DIMENSIONS
4.7"
Front View
2.9"
TECHNICAL DETAILS
Output Signal
Power Supply
Consumption Power
Operating Temperature
Dimensions
Mounting
Back View
DMX512 Signal
12--24 VDC
20 mA
<
0-40°C / 32°F-104°F
4.7"X2.9"X1"
Wall Mount
w w w . i u s e e l i t e . c o m

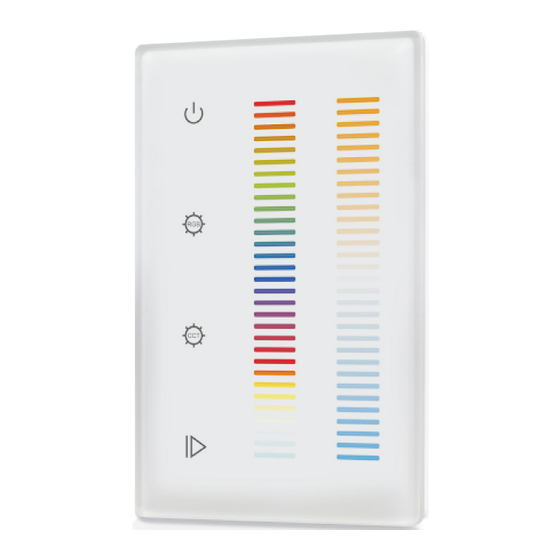

RGB+Dual Color DMX512 Wall Panel Controller
FEATURES
The LB-2834-5C-DMX is a 5-channel full-touch LED controller designed with double touch
sliders, offering fast and accurate adjustment of RGB color tones for RGB LEDs, as well as
color temperature adjustment for dual-color LEDs (warm white and cool white). With separate
touch sliders for RGB color tone and CCT adjustment, the controller enables independent
control of RGB and CCT without the need for switching.
Brightness levels for RGB channels and dual white channels can be adjusted respectively
using keys, ensuring clear and separate control without confusion. Each controller has 5 DMX
channels output to control 1 zone of RGB+CCT LED lighting and up to 3 different colors or
scenes can be saved for each zone.
Additionally, the controller features 10 built-in color-changing effects with a pause function,
allowing for dynamic lighting displays. LED indicators provide backlighting for easy visibility,
even in low-light conditions.
Double touch sliders, one for RGB and the other one for CCT adjustment.
5 channel full touch LED controller for RGB+CCT, standard DMX
Save up to 3 colors/scenes for each zone.
10 built-in color changing effects are available with pause function.
Control RGB color and CCT respectively without having to switch.
Compatible with universal DMX decoders.
1.7"
DMX 5 1 2 W a ll P a ne l
C ontr olle r
DC INPUT DMX OUTPUT
V- V+ D- D+ GND
Color
Certifications
Zones
Surface
Control
Warranty
Due to the changes of constant improvement in LED technology, all details are
subject to change without notice. Consult factory for up to date information.
LB-2834-5C-DMX
Side View
1"
White
FCC / RoHS
1 zone
Glass
RGB+CCT controller
5 Years limited warranty
IP20
RATED
04/10/24
