Gil
19159/19160/19161
INGROUND LIGHT
Installation Manual
Thanks for using our product, our product is produced based on national standards.In order to install the lamp correctly,
pls check carefully this installation manual.Installation or maintenance operations must be worked by professional
electrician. Pls don't connect the power before installation or maintenance. The wrong installation and maintenance, or
don't follow this manual, it will cause electrocuted.
1. Installation requirement
1) Prepare all accessory of lamp installation.
2) Pls be sure that lamp is cut off the power , during the installation or maintenance.
3) The using voltage can't exceed the rated voltage.
4) The power cable specification must be CCC certificated waterproof power cable.
5) Can't use the lamp in the corrosivity, inflammability and Explosive environment.
6) The installation method as below picture:

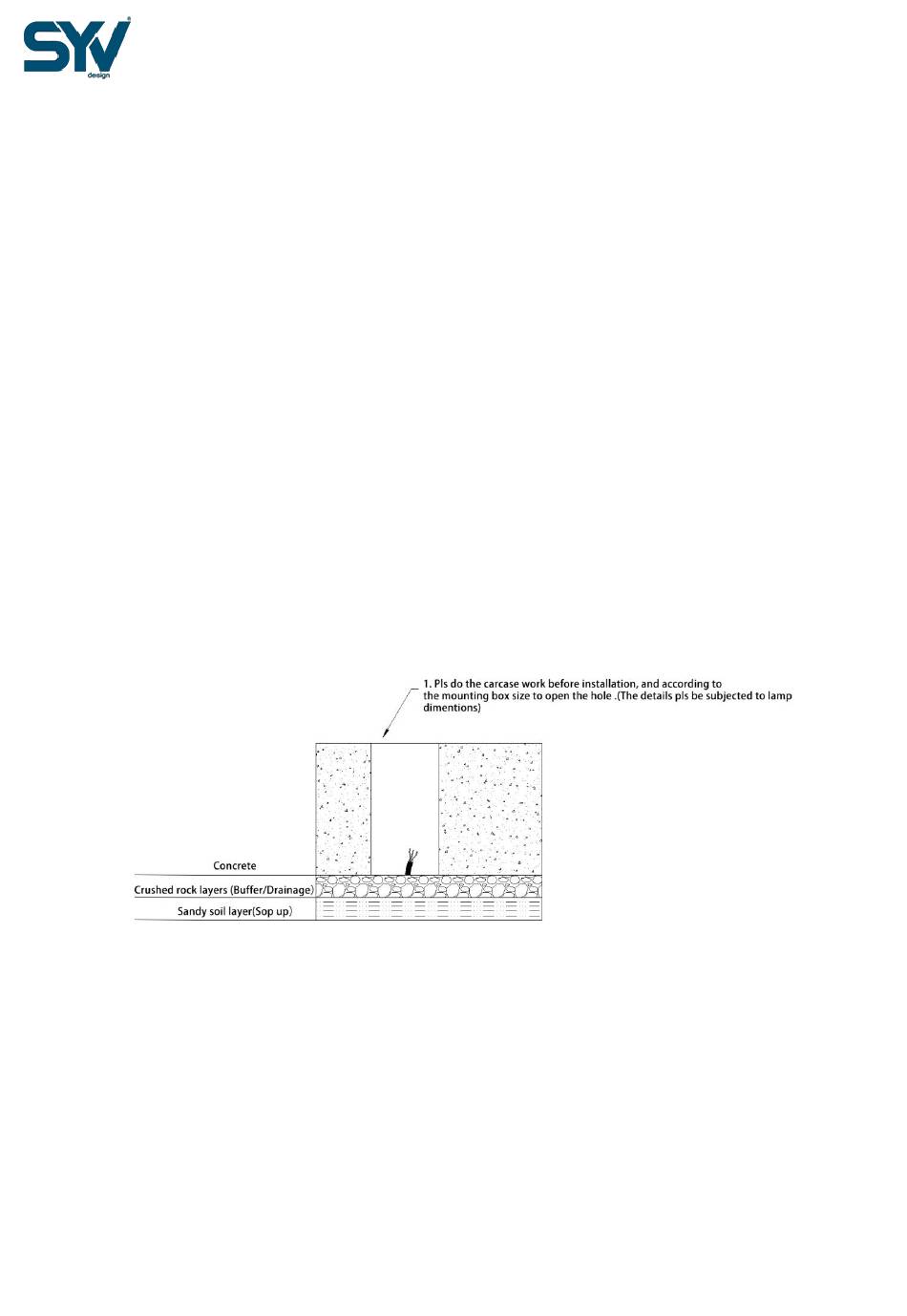

Pic 1.
Advertisement
Summary of Contents for SYV design Gil 19159
- Page 1 19159/19160/19161 INGROUND LIGHT Installation Manual Thanks for using our product, our product is produced based on national standards.In order to install the lamp correctly, pls check carefully this installation manual.Installation or maintenance operations must be worked by professional electrician. Pls don’t connect the power before installation or maintenance. The wrong installation and maintenance, or don’t follow this manual, it will cause electrocuted.
- Page 2 19159/19160/19161 Pic 2： Pic 3：...
- Page 3 19159/19160/19161 Pic 4： 7) Pls be sure that the lamp input power cable connection with project site driver power cable is correct(DC24V+:brown, DC24V-:blue). If not, the water will go though the cable, then affect the lamp using. 2. Two different kinds of cable connection： 1) Male&female connector: as pic.5 Pic.5 Rotated the nut to location notch,and push back the nut, Adjust the male&female connect at the same level, so that it can...
- Page 4 19159/19160/19161 5. Note In order to avoid the lamp breakage, fall, electric shock, fire and other accidents that threaten personal safety, please strictly follow the installation and use instructions, can’t modify the lamp and change lamp inner electrical parts by yourself.
