SCADAmetrics The Encodalizer PTE Manual

The Encodalizer™
Model PTE
AMI Gateway and Remote Display
for Pulse-Output Flow Meters!...

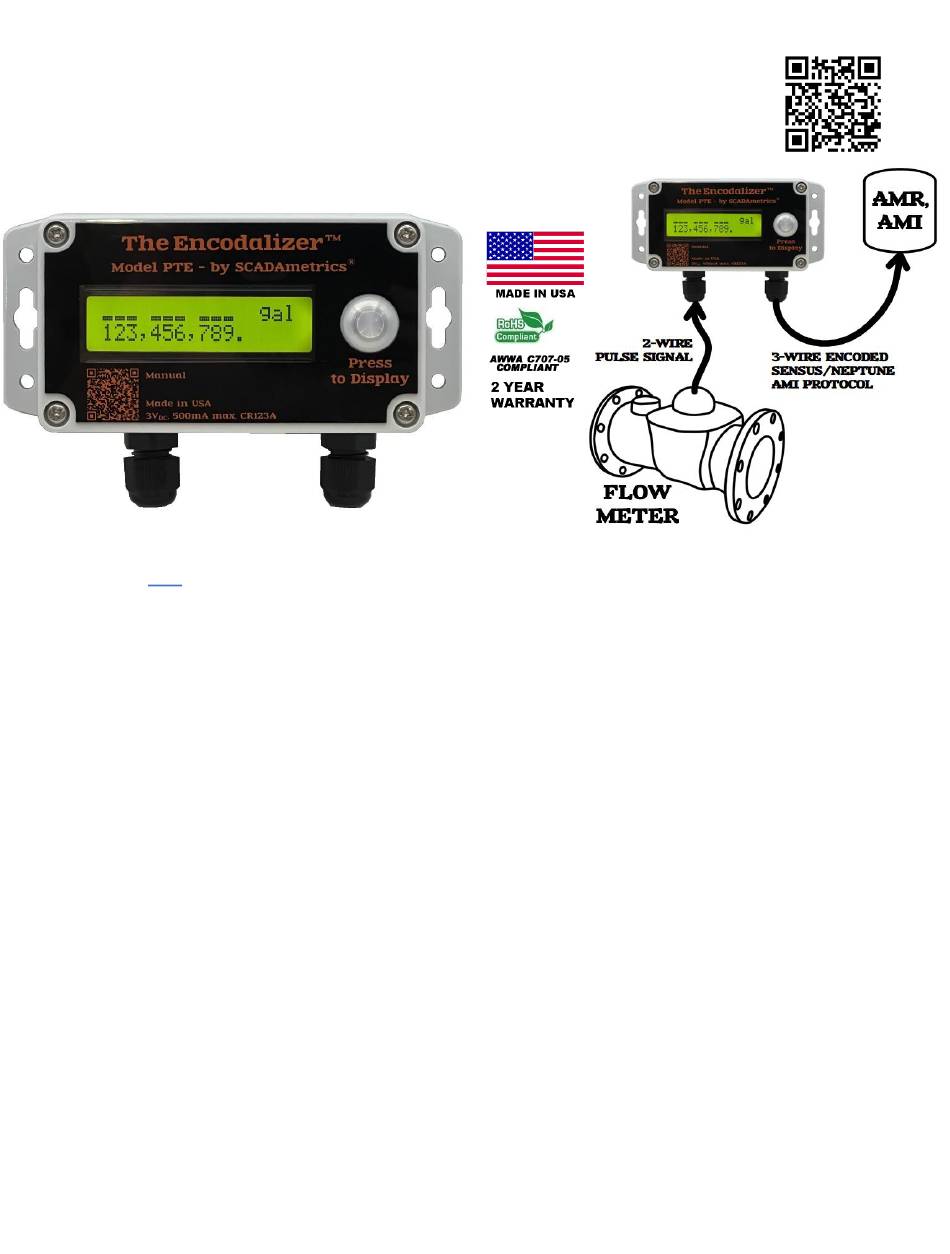

The Encodalizer™ – Do you have a pulse-capable flow
meter that you would like to connect to an AMI network
(fixed-base, cellular, drive-by), but it does not have a 3-
wire encoded output?
The Encodalizer provides the solution! – as it can accept
a generic, pulse-per-volume input signal, and convert into
a 3-wire, encoded output!
Furthermore, the encoded output is user-selectable as
either Sensus Protocol (4-9 digits) or Neptune Protocol
(6 or 8 digits). These protocols form the de facto standards
for water AMI connnectivity throughout North America.
Pulse-Input flow meter types:
• Wastewater Meters
• Magnetic Flow Meters
• Venturi Meters
• Weir Meters
• Parshall Flume Meters
• Turbine & Propeller Meters
• Ultrasonic Meters
• Positive Displacement Meters
Coming Soon: The Encodalizer will soon be offered
with the ability to provide translation between encoder
protocols: Elster/ Sensus/ Neptune Inputs and Neptune/
Sensus outputs. Please check back in for progress updates.
Pulse-to-Encoder Version
Key Features –
• Converts Meter Pulse Signal to 3-Wire Encoded Signal:
Sensus and Neptune AMI Protocols
• Accepts Most Dry-Contact Pulse Meters (Reed Relay, Open-
Collector, Open-Drain). Does NOT Accept Voltage Pulses.
• Easy Setup via Dip Switches! – No Programming Required!
• Battery-Powered
Battery Life Up to 10+ Years (Depends Upon Usage)
• Mains-Powered w/ Battery Backup
• For Outdoor or Indoor Use. Wall-Mountable.
Built to NEMA-4X, IP-66 Specifications.
Not Submersible
• Large, 2x16 Character Backlit Display
• Pulse Synchronization Feature
• Displays Registration Units
• Battery Voltage Display
Are you interested in
SCADAmetrics gateway technology can help connect more
and varied flow meters to your district-wide AMI system?
Give us a call! We'll be glad to discuss the details!
