KARF & SCOOT GDMP Technical Manual

Gas detector monitoring panel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Gas Detector Monitoring Panel
Technical Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GDMP and is the answer not in the manual?

Questions and answers

Related Manuals for KARF & SCOOT GDMP

Summary of Contents for KARF & SCOOT GDMP

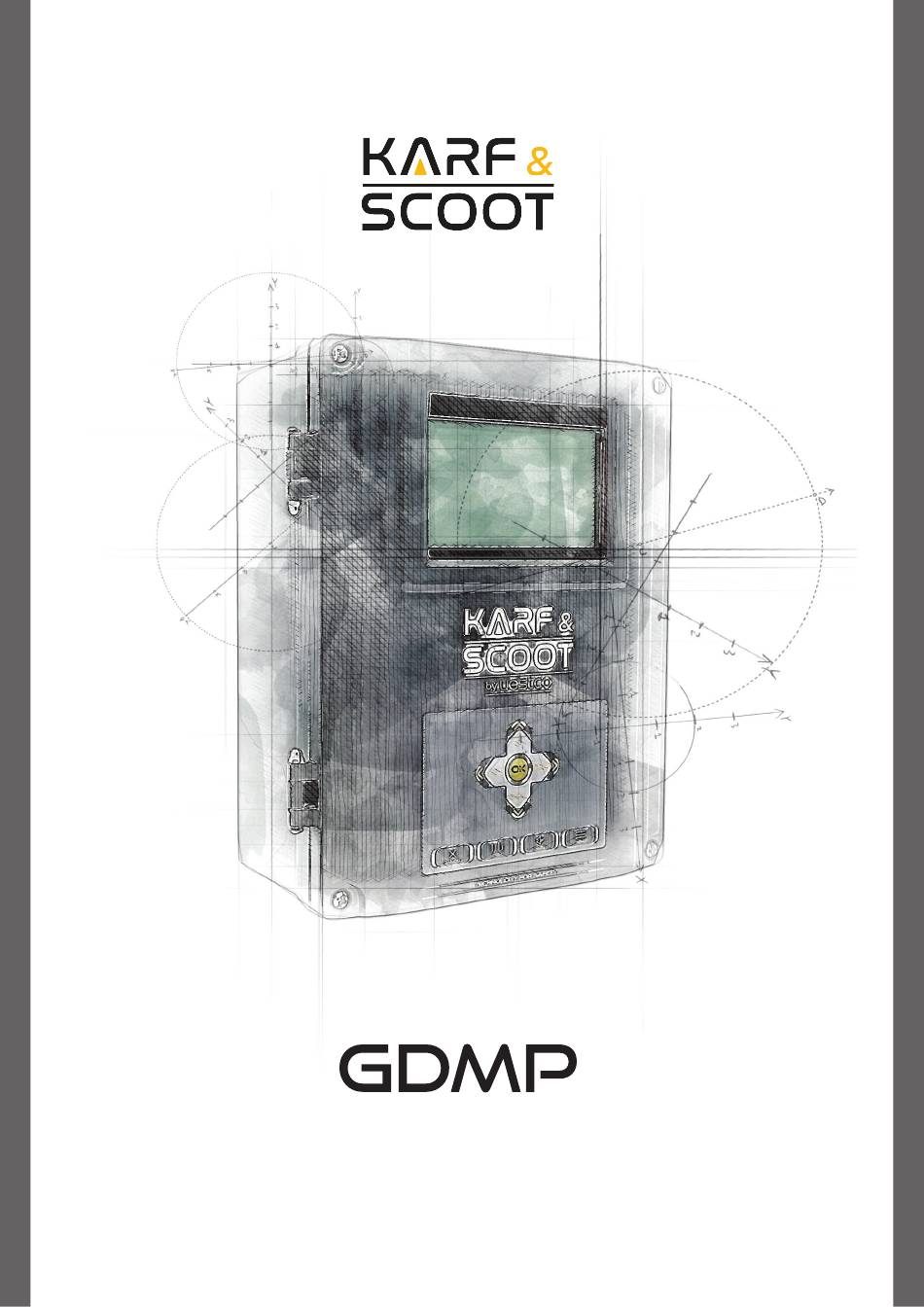

  • Page 1 Gas Detector Monitoring Panel Technical Manual...
  • Page 2 The device will work as designed only if it is used and maintained according to the manufacturer's instructions. Otherwise, it may not operate as designed and persons relying on this device may suffer serious injury or death. GDMP Gas Detector Monitoring Panel User Manual...

  • Page 3: Table Of Contents

    6.4. Language ............................... 32 6.5. Date and Time ............................... 32 6.6. About ................................33 ANNEX A1. GDMP2 MODBUS TABLE ....................... 34 GDMP Register Table ............................34 GDMP2 Holding Registers ............................ 35 ANNEX A2. GDMP4 MODBUS TABLE ....................... 37 GDMP Register Table ............................37 GDMP4 Holding Registers ............................

  • Page 4: Safety And Information

    National Standards, Electrical Codes and all local ordinances. • Never operate the GDMP without a connection to Earth ground. Failure to connect the device to Earth ground can result in electrical shock. Electrical shock can cause damage to the GDMP and injury to personnel.

  • Page 5: Maintenance

    Verify proper system operation by performing a full, functional test of all component devices of the safety system, ensuring that the proper levels of alarm occur. Check the calibration of the sensor(s) connected to the input(s) of the GDMP according to the recommended schedule in the device manual(s).

  • Page 6: Introduction

    2. Introduction 2.1. Product Description GDMP is a gas detection monitoring panel that allows control and monitoring of multiple gas detectors from a single point. The monitoring panel can be used to control flammable/explosive or toxic gas detectors with industry standard 4-20 mA analog output and flame detectors with digital inputs.

  • Page 7: Technical Specification

    Oparating Voltage VDC: 18-30 VDC (24VDC nominal) Power Consumption 24 VDC/87 mA - 2.088 W max. (except connected detectors) GDMP-2: 2*Analog Input (4-20mA) + 2*Digital Input Inputs GDMP-4: 4*Analog Input (4-20mA) + 2*Digital Input GDMP-8: 8*Analog Input (4-20mA) + 2*Digital Input...

  • Page 8: Installation

    A place that can be easily accessed by operating personnel should be chosen. 3.1.2. Monitoring Panel Mounting There are 4 holes (M4) for wall mounting on the GDMP. For wall mounting, the 4 mounting brackets sent with the monitoring panel should be fixed to these mounting points, as seen below.
  • Page 9 Before installation, GDMP dimensions should be considered when choosing the appropriate installation area. GDMP dimensions are as shown below. Note: All dimensions are mm. Control Panel Dimensions To mount the monitoring panel to the wall, M4 screws compatible with the mounting brackets must be used.

  • Page 10: Electrical Connections

    3.2.1. Terminal Connections All connections of the GDMP are carried out on the electronic board. In order to make the necessary connections on the electronic board, first remove the 4 screws on the monitoringpanel cover. Figure. GDMP Panel Cover Screw Locations Caution: After the electrical connections have been completed, reinsert these screws and make sure that they are well tightened.
  • Page 11 (if available) can be disabled with the MUTE button. All models of the GDMP series have 2 digital inputs. The number of analog inputs varies depending on the model. GDMP-2 has 2 analog inputs, GDMP-4 has 4 analog inputs, and GDMP-8 has 8 analog inputs.
  • Page 12 Relay 1 Connections Normally Closed Normally Open Common Relay 2 Connections Normally Closed Table. Relay Output Connections AUDIBLE OUTPUT TERMINAL CONNECTIONS Terminal No Marking Connection Description +24VDC AUDIBLE OUTPUTS Table. Audible Output Connections GDMP Gas Detector Monitoring Panel User Manual...
  • Page 13 Analog Input 2 +24VDC Table. Analog Input Connections WARNING: The number of analog inputs varies depending on the GDMP model. GDMP-2 has 2 analog inputs, GDMP-4 has 4 analog inputs, and GDMP-8 has 8 analog inputs. MODBUS TERMINAL CONNECTIONS Terminal No...

  • Page 14: Wiring

    3.2.2. Wiring Gas detectors with 4-20 mA output can be monitored with GDMP control panel. The V+ and GND detector connections on the analog inputs provide 24VDC to the detector. mA connection reads the detector output (4-20 mA). As the distance between the detector and the control panel increases, the detector supply voltage will become weaker, so cable diameters should be determined according to the distance.

  • Page 15: General Status Screen

    Figure. Alarm Status Info Page 4.1. General Status Screen The GDMP, gas detection monitoring panel, allows the safe status, warning status, Alarm1 status and Alarm2 status of the detectors connected to the panel to be easily tracked on the screen.

  • Page 16: Warning Status

    PROPAN Figure. GDMP2 Gas Detector Warning Status 0.00 %vol GD420 GD2G %LEL %LEL Figure. GDMP4 and GDMP8 Gas Detector Warning Status GDSFX 1 GDSFX 2 PROPAN 870 ppm 0.00 %vol WARNING: Calibration Expired GDMP Gas Detector Monitoring Panel User Manual...

  • Page 17: Alarm1 Status

    Alarm1 is the low alarm level for gas detectors. When the target gas concentration in the environment where the gas detector is located reaches the specified Alarm1 level, the GDMP goes into Alarm1 state. “A1” warning is displayed on the relevant channel to which the gas detector is connected.

  • Page 18: Digital Input Alarm Status

    Figure. Digital Input Alarm Status DANGER DANGER 5. Main Menu 5.1. Menu Structure The menu structure containing all the necessary information and settings of the GDMP gas detection monitoring panel is shown below. GDMP Gas Detector Monitoring Panel User Manual...

  • Page 19: Entering The Menu

    5.2. Entering the Menu GDMP To access the GDMP gas detection monitoring panel menu, press the “MENU” button on the Settings keypad. Tests To access the Settings tab in the menu, a Language Date and Time password created for security purposes must About be entered.

  • Page 20: Configurations

    Table. Status and Indicators 6.2. Settings To view GDMP settings, after logging into the control panel menu, enter the "SETTINGS" tab as shown in the image. When entering the "SETTINGS" tab, the 4-digit security password should be entered. The default password is 1 0 0 0 (see Section 5.2).

  • Page 21: Channel Name

    CALIBRATION PERIOD: It is used to enter the time specified for the calibration of the gas detector connected to the relevant analog input. It allows the calibration date of the gas detectors connected to the GDMP to be monitored. When the calibration period expires, a warning is displayed on the channel where the information of the relevant gas detector is displayed.

  • Page 22: Measurement Unit

    Caution: The MEASUREMENT UNIT should be the same as the measurement unit of the gas detector connected to the relevant channel. Before setting the measurement unit on the GDMP, check the measurement unit of the gas detector connected to the relevant channel.

  • Page 23: Measurement Range

    Before entering the measurement range values on the GDMP, check the measurement range of the gas detector connected to the relevant channel. 1) For the MEASUREMENT RANGE setting, enter the SETTINGS tab in the GDMP Gas Detection Monitoring Panel menu.

  • Page 24: Measured Gas

    Caution: The MEASURED GAS should be the same as the gas measured by the gas detector connected to the relevant channel. Before entering the measured gas name on the GDMP, check the measured gas by the gas detector connected to the relevant channel.

  • Page 25: Alarms

    Level Alarm 1 Closing Delay Alarm 2 Direction 6.2.5.1. Level 1) For LEVEL setting, select the relevant alarm level (ALARM1,ALARM2) from the ALARMS tab of the GDMP Gas Detection Monitoring Panel. Channel Name Measurement Unit Alarm 1 Measurement Range Alarm 2...
  • Page 26 Caution: According to IEC EN 60079-29-1 the high alarm relay, Alarm 2, must be reset manually. Therefore the switch-off delay setting is only available for Alarm 1. 1) For CLOSING DELAY setting, select ALARM1 from the GDMP Gas Detection Monitoring Panel ALARMS tab. Channel Name...
  • Page 27 Closing Delay: 00 Minute Closing Delay: 01 Minute 4) Press the CANCEL button to exit. 6.2.5.3. Direction 1) For DIRECTION setting, select the relevant alarm level (ALARM1, ALARM2) from the ALARMS tab of GDMP Gas Detection Monitoring Panel. Channel Name Measurement Unit...

  • Page 28: Calibration Period

    Before entering the calibration period on the control panel, the calibration date of the gas detector connected to the relevant channel should be checked. 1) For the CALIBRATION PERIOD setting, enter the SETTINGS tab in the GDMP Gas Detection Monitoring Panel menu.

  • Page 29: Change Password

    Caution: When the password is changed, the new password will be valid to enter the SETTINGS menu. Therefore, if the password is changed, it must not be forgotten. If forgotten, contact Karf&Scoot service for password recovery. 1) For the CHANGE PASSWORD setting, enter the SETTINGS tab in the GDMP Gas Detection Monitoring Panel menu.

  • Page 30: Modbus

    3) Use UP and DOWN buttons to set the relevant parameter values. 4) Press the CANCEL button to exit. 6.3. Tests To view the GDMP Gas Detection Monitoring Panel functional tests, after logging in to the menu, enter the “TESTS” tab as shown in the image. Settings...

  • Page 31: Audio Warning

    6.3.1. Audio Warning 1) For the AUDIO WARNING test, enter the TESTS tab in the GDMP Gas Detection Monitoring Panel menu. Settings Tests Auto Warning Language Relay Test Date and Time About 2) "Shall the testing begin?" When the text appears, press the OK button to start the test. Wait until the "Test Completed"...

  • Page 32: Language

    2) Select the language using the UP and DOWN buttons. Türkçe English 3) Press the CANCEL button to exit. 6.5. Date and Time 1) For DATE AND TIME settings, enter the SETTINGS tab in the GDMP Gas Detection Monitoring Panel menu. Settings Settings Tests Tests...

  • Page 33: About

    6) Press the CANCEL button to exit. 6.6. About ABOUT tab contains device software version and device serial number information. To access this tab, enter the ABOUT tab in the GDMP gas detection monitoring panel menu. Company: Uestco Energy Systems Software Version: v0.01...

  • Page 34: Annex A1. Gdmp2 Modbus Table

    ANNEX A1. GDMP2 MODBUS TABLE GDMP Register Table GDMP supports following modbus functions: - Read Registers - Write Registers Data Format: Device supports Big-Endian (high-byte before low-byte) data format. Number Formats TYPE Reg S. SIZE unsigned short 16 bits 216 -1...

  • Page 35: Gdmp2 Holding Registers

    RO/RW Unit Remarks Label Registers 0x000B float GAS_MEASUREMENT_UNIT Ch1 Gas Value GAS_VALUE_1 0x000D float GAS_MEASUREMENT_UNIT Ch2 Gas Value GAS_VALUE_2 0x000F float GAS_MEASUREMENT_UNIT Ch3 Gas Value GAS_VALUE_3 0x0011 float GAS_MEASUREMENT_UNIT Ch4 Gas Value GAS_VALUE_4 GDMP Gas Detector Monitoring Panel User Manual...
  • Page 36 Falling 1: Rising unsigned Alarm1 closing delay, Unit 0x0023 Measurement-Unit ALARM1_CLOSING_DELAY short = Minute GAS_ 0x0024 float MEASUREMENT_ Alarm2 Level * 100 ALARM2_LEVEL UNIT unsigned Alarm2 Direction, 0: 0x0026 ALARM2_DIRECTION short Falling 1: Rising GDMP Gas Detector Monitoring Panel User Manual...

  • Page 37: Annex A2. Gdmp4 Modbus Table

    ANNEX A2. GDMP4 MODBUS TABLE GDMP Register Table GDMP supports following modbus functions: - Read Registers - Write Registers Data Format: Device supports Big-Endian (high-byte before low-byte) data format. Number Formats TYPE Reg S. SIZE unsigned short 16 bits 216 -1...

  • Page 38: Gdmp4 Holding Registers

    RO/RW Unit Remarks Label Registers 0x000F float GAS_MEASUREMENT_UNIT Ch1 Gas Value GAS_VALUE_1 0x0011 float GAS_MEASUREMENT_UNIT Ch2 Gas Value GAS_VALUE_2 0x0013 float GAS_MEASUREMENT_UNIT Ch3 Gas Value GAS_VALUE_3 0x0015 float GAS_MEASUREMENT_UNIT Ch4 Gas Value GAS_VALUE_4 GDMP Gas Detector Monitoring Panel User Manual...
  • Page 39 Falling 1: Rising unsigned Alarm1 closing delay, Unit 0x0028 Measurement-Unit ALARM1_CLOSING_DELAY short = Minute GAS_ 0x0029 float MEASUREMENT_ Alarm2 Level * 100 ALARM2_LEVEL UNIT unsigned Alarm2 Direction, 0: 0x002B ALARM2_DIRECTION short Falling 1: Rising GDMP Gas Detector Monitoring Panel User Manual...

  • Page 40: Appendix A3. Gdmp8 Modbus Table

    APPENDIX A3. GDMP8 MODBUS TABLE GDMP Register Table GDMP supports following modbus functions: - Read Registers - Write Registers Data Format: Device supports Big-Endian (high-byte before low-byte) data format. Number Formats TYPE Reg S. SIZE unsigned short 16 bits 216 -1...

  • Page 41: Gdmp8 Holding Registers

    GAS_MEASUREMENT_UNIT Ch4 Gas Value GAS_VALUE_4 0x001F float GAS_MEASUREMENT_UNIT Ch5 Gas Value GAS_VALUE_5 0x0021 float GAS_MEASUREMENT_UNIT Ch6 Gas Value GAS_VALUE_6 0x0023 float GAS_MEASUREMENT_UNIT Ch7 Gas Value GAS_VALUE_7 0x0025 float GAS_MEASUREMENT_UNIT Ch8 Gas Value GAS_VALUE_8 GDMP Gas Detector Monitoring Panel User Manual...
  • Page 42 0x0014 unsigned short CH6_ALARM2_STATUS 0: False - 1: True Ch7 Alarm2 Status 0: 0x0015 unsigned short CH7_ALARM2_STATUS False - 1: True Ch8 Alarm2 Status 0: 0x0016 unsigned short CH8_ALARM2_STATUS False - 1: True GDMP Gas Detector Monitoring Panel User Manual...
  • Page 43 Rising unsigned Alarm1 closing delay, Unit = 0x0038 Measurement-Unit ALARM1_CLOSING_DELAY short Minute GAS_ 0x0039 float MEASUREMENT_ Alarm2 Level * 100 ALARM2_LEVEL UNIT unsigned Alarm2 Direction, 0: Falling 1: 0x003B ALARM2_DIRECTION short Rising GDMP Gas Detector Monitoring Panel User Manual...
  • Page 44 Aydınevler Mah. Beste Sok. No:1-3, Tan Çelik Plaza, Kat:2-3 Maltepe, İstanbul, Türkiye info@karfandscoot.com +90 216 314 56 57 www.karfandscoot.com...
