Calaf MKII
integrated stereo amplifier
USER GUIDE
Congratulations on your new CONSONANCE!
Our products are based on a simple philosophy:
The component shall reproduce the original musical sound, purely and naturally.
The products are easy to operate and are manufactured according to the best quality
principles.
All CONSONANCE products are created with acoustical instruments in a concert situation
as point of reference. The music is reproduced exactly like the original and is limited only by
the quality of the recording.
Our aim is to give you the best possible music experience!
SOUND ADVICE
The Consonance Calaf MKII Integrated Amplifier is easy to connect and operate and
requires no prior technical knowledge. However, to get the most out of the amplifier's
superior sound and music quality, we have provided a brief description of the connections
and use of the amplifier in order to provide a total music experience.
We recommend keeping this user guide for future reference.
GENERAL USE

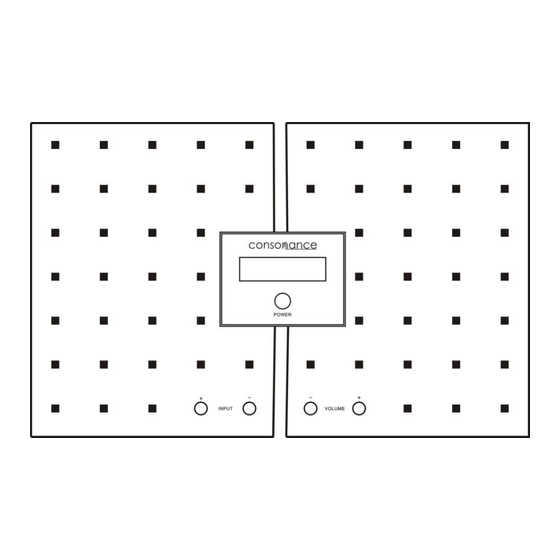

The amplifier is switched on with the button in the middle of the front panel. A red LED in
the display, indicates that power is switched on. By pushing the same button one more time
the power is switched off.
1
Advertisement
Related Manuals for Opera Audio Calaf MKII
Summary of Contents for Opera Audio Calaf MKII
- Page 1 Our aim is to give you the best possible music experience! SOUND ADVICE The Consonance Calaf MKII Integrated Amplifier is easy to connect and operate and requires no prior technical knowledge. However, to get the most out of the amplifier's superior sound and music quality, we have provided a brief description of the connections and use of the amplifier in order to provide a total music experience.
- Page 2 The amplifier is switched on with the button in the middle of the front panel. A red LED in the display, indicates that power is switched on. By pushing the same button one more time the power is switched off. On the left buttons + and - is the channel selector with selections: CH1(“1”), CH2(“2”), CH3(“3”), phono input(“PH”), and the right of the front panel, the right buttons- and + is the volume control.
- Page 3 From left to right are: BALANCED CH(“BL” displayed on the screen)Balanced/XLR Signal CH right/left CH1(“1” displayed on the screen) Phono/RCA Signal CH right/left CH2(“2” displayed on the screen) Phono/RCA Signal CH right/left CH3(“3” displayed on the screen) Phono/RCA Signal CH right/left CH4(“4”...
-
Page 4: Use & Placement
USE & PLACEMENT The Consonance Calaf should be placed on a flat, hard surface for proper cooling. The amplifier performs best after being switched on for 1 hour for heating up. A certain space is required for air circulation above and below the amplifier. The amplifier must never be placed on a carpet or similar surface that obstructs air circulation through the component. - Page 5 This warranty shall not apply to any Opera audio product which shall have been repaired or altered outside of our factory in any way so as to affect its stability, nor which has been subject to misuse, negligence or accident.
