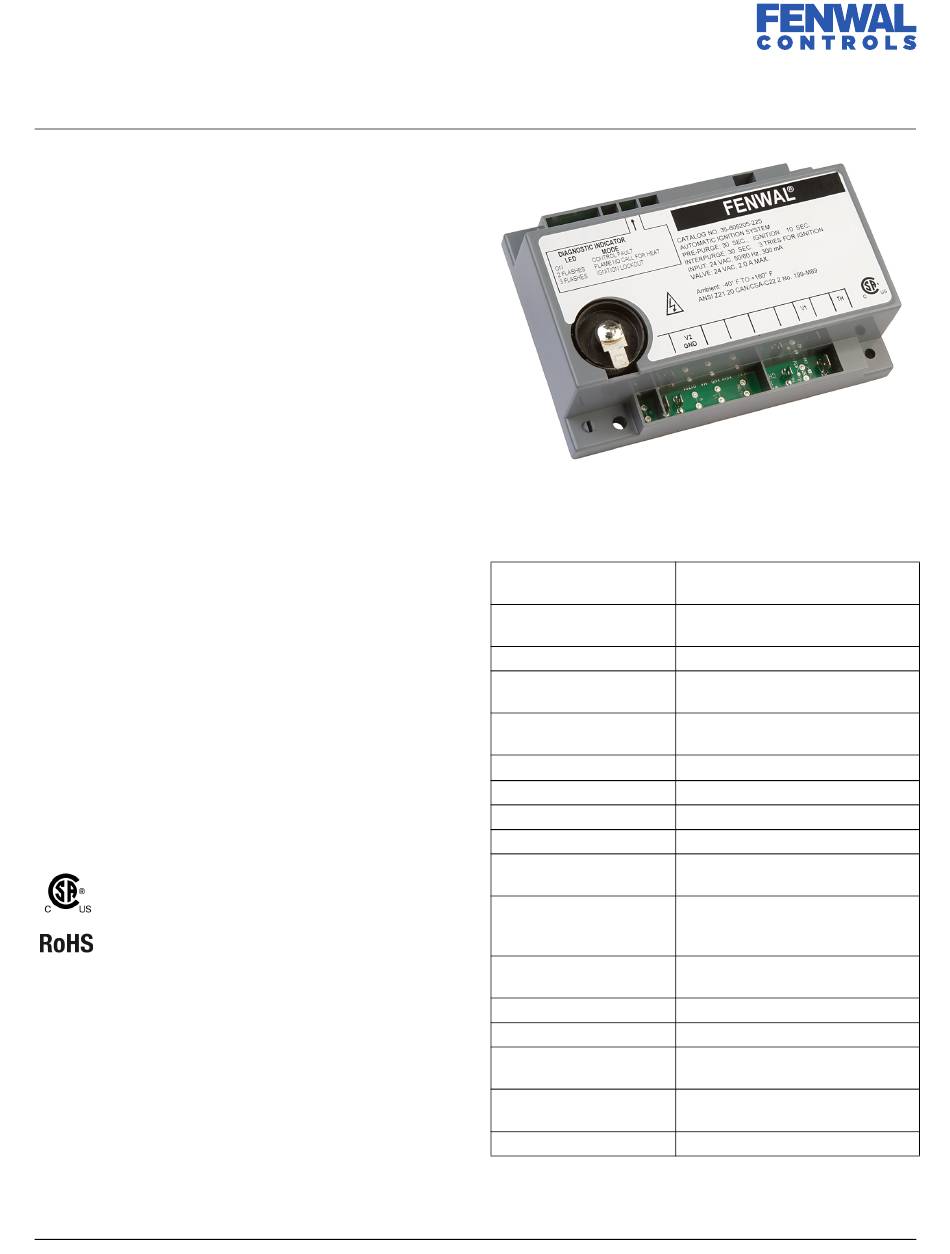

SERIES 35-60 - 60730-2-5 Compliant
24 VAC Microprocessor-Based Direct Spark Ignition Control
FEATURES
•
Safe start with DETECT-A-FLAME
technology
•
Custom pre-purge and inter-purge timings*
•
Single or three trials for ignition
•
System diagnostic LED
•
Flame current test points
•
Local or remote flame sensing
•
Automatic reset**
•
True Alarm output or NC (Normally Closed Contact)
•
Meets 60730-2-5 Harmonized Standard
APPLICATIONS
•
Commercial cooking
•
Gas furnaces
•
Boilers
•
Water heaters
•
Other gas-fired appliances
DESCRIPTION
The 35-60 is a 24 VAC direct spark ignition (DSI) control
designed for use in all types of gas-fired appliances. The control
uses a microprocessor circuit to provide precise, repeatable
timing and operating sequences. A diagnostic LED and optional
UART communications make troubleshooting easy and ensures
safe and efficient operation.
The optional UART communications offers advanced diagnostic
data and connectivity with the Fenwal ConnectedControl series
05-50 Wi-Fi device.
Export Information (USA)
Jurisdiction: EAR
ECCN: EAR99
Agency Certifications
C22.2 No.0:20
ANSI Z21.20-2014
CAN/CSA C22.2 No. 60730-1:13
RoHS Compliant
®
flame sensing
SPECIFICATIONS
Input Power
Input Current
Gas Valve
Operating Temperature
Storage Temperature
Flame Sensitivity
Flame Failure Response
Gas Types
Spark Rate:
Size (LxWxH)
with enclosure
Moisture Resistance
Ingress Protection
Tries for Ignition
Trial for Ignition Periods
Pre-purge and
Inter-purge Timings
Ignition Method
Communications
1
F-35-60H
February 2024
Control: 18-30 VAC 50/60Hz
(Class 2 transformer)
300 mA @24 VAC with gas valve
relay energized (control only)
2.0A max @ 24 VAC
-40°F to +176°F
(-40°C to +80°C)
-40°F to +185°F
(-40°C to +85°C)
µ
0.7
A minimum
0.8 seconds maximum
Natural, LP, or manufactured
50/60 sparks/sec
5.69 x 3.94 x 1.87 inches
(14.45 x 10.01 x 4.75 cm)
Conformal coated to operate non-
condensing to 95% R.H. Module
should not be exposed to water
Not rated, protection provided by
appliance in which it is installed
One or three try versions available
4, 7, 10, 15 seconds available
0, 15 or 30 seconds available
Sparking pulses 600 mS On,
400 mS Off
Optional UART communication
