Schiit MODI 3E Owner's Manual page 2

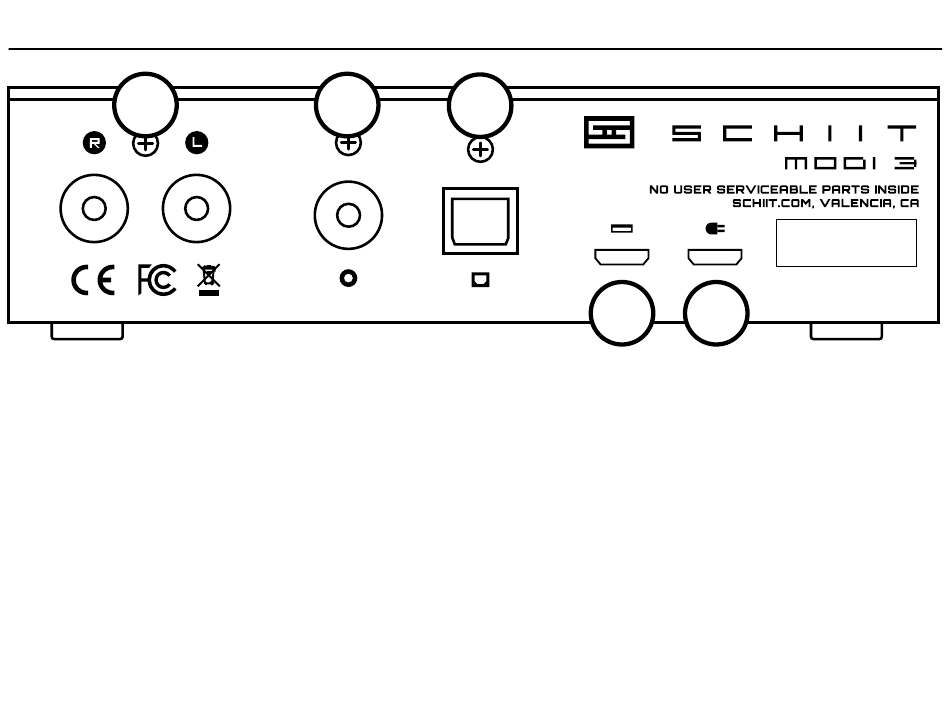

CONNECTIONS
1
1 RCA Analog Outputs. Connect the two RCA
jacks, to your amp, preamp, or receiver.
2 Coaxial Digital Input. Connect a coaxial digital
source, using an RCA cable, 75 ohm preferred.
3 Optical Digital Input. Connect an optical source
to the optical input jack, using a Toslink cable.
4 USB Data and Power Input. Connect a USB
source using a USB micro cable (supplied).
5 Power Input. Connect the supplied 5V power
source if you need external power.
2
3
OPERATION
If you're using Modi 3E as a USB only DAC, you
don't need Power Input. Just connect it to your
computer with the supplied USB Micro cable and
you're set.
If you're using the other digital inputs, and
you're NOT using USB, you need Power Input.
Connect the supplied USB wall-wart with the
supplied USB Micro cable to provide power for
the other inputs. Modi 3E won't work without
power, and power comes from USB.
ASSEMBLED IN USA
4
5
MODI 3E
083E00000
