Summary of Contents for Third Reality 3RTHS0224Z

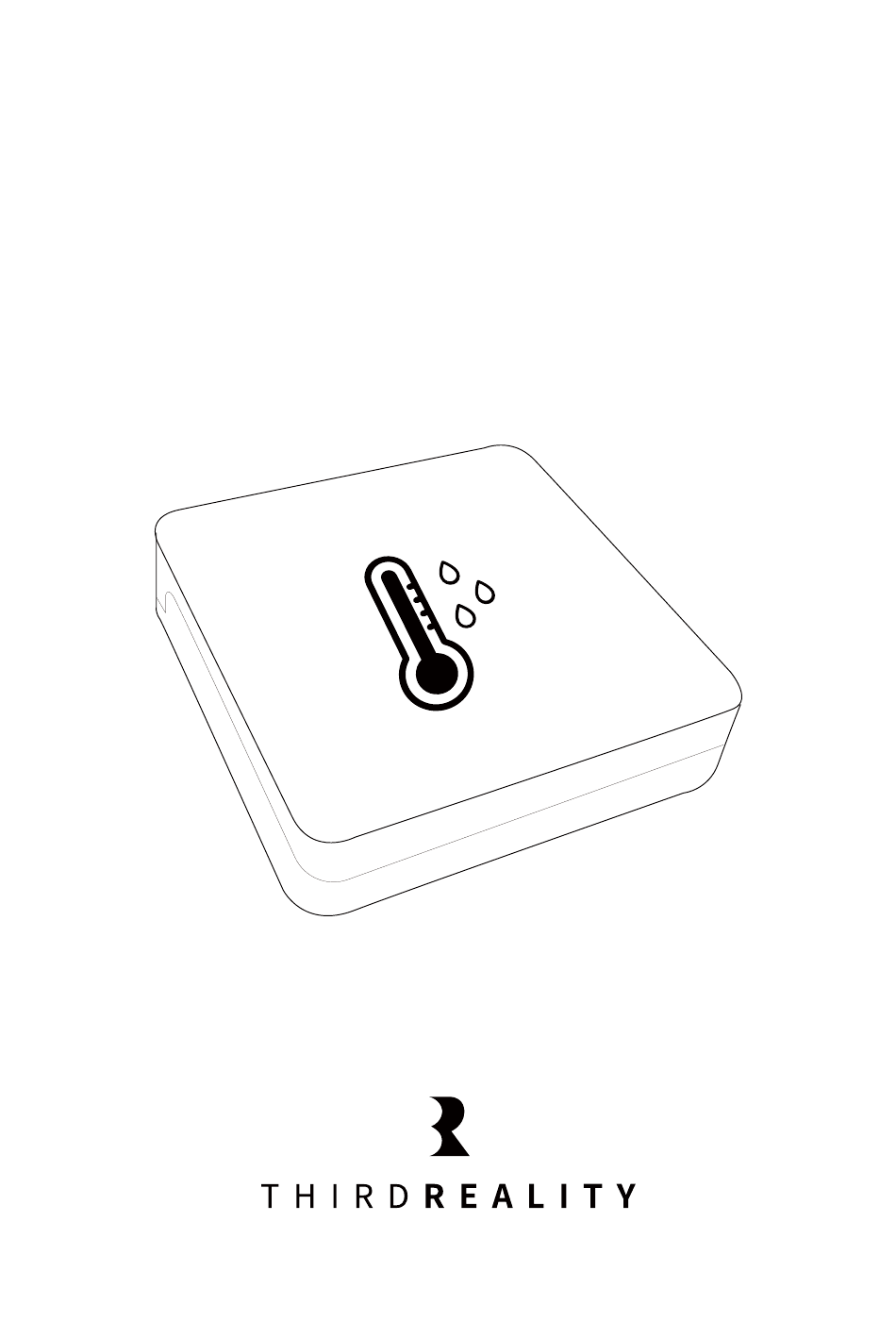

Page 1 Temperature and Humidity Sensor Lite Quick Start Guide...
Page 2: Table Of Contents
Contents What's in the Box Introduction Speciﬁcation Setup Pairing with ThirdReality Pairing with 3R-Installer Pairing with Amazon Echo Pairing with SmartThings Pairing with Hubitat Pairing with Home Assistant FCC Regulatory Conformance RF Exposure Limited Warranty...
Page 3: What's In The Box
What's in the Box Temperature and Humidity 3M adhesive Sensor Lite Temperature and Humidity Sensor Lite Quick Start Guide User Guide AAA Battery （ included）...
Page 4: Introduction
Enjoy battery-powered convenience, reliable and eﬃcient communica- tion, ensuring a seamless integration into your smart home ecosystem. Speciﬁcations Name Temperature and Humidity Sensor Lite Model 3RTHS0224Z Dimensions 5.56cm×5.59cm ×1.23cm Operating Voltage DC 3V Battery Type AAA battery × 2 (included) Wireless Connectivity Zigbee 3.0...
Page 5: Setup
Setup Make sure the device has power by inserting a new battery. Press and hold the reset button for 5 seconds until the LED turns red and then ﬂashes in blue, indicate it enters pairing mode. Follow the instructions of your Zigbee hub to pair the sensor. Note: If not successfully paired to the Zigbee hub within 3 min, the sensor will exit pairing mode.
Page 6: Pairing With Thirdreality
ﬂashes, indicating that it is in pairing mode. It will exit pairing mode after 3 min if not paired. Tab "+" in the up right in the Third Reality App, follow the on-screen instructions to add device.
Page 8: Pairing With 3R-Installer
Pairing with 3R-Installer App: 3R-Installer App Device: Smart Bridge MZ1 Pairing steps: Set up your smart bridge, make sure both the 3R-Installer App and the smart bridge's ﬁrmware are in the latest version. Push to open the back cover of the sensor and install the batteries. Press the reset button until the LED turns red and release.
Page 10: Pairing With Amazon Echo
Pairing with Amazon Echo App: Amazon Alexa Devices: Echo speakers with built-in Zigbee hub, Echo 4th Gen, Echo Plus 1st & 2nd Gen, Echo Studio Pairing steps: Direct Pairing: Ask Alexa to check for updates before pairing. Install the batteries. Press the reset button until the LED turns red and release.
Page 13 It will exit Zigbee pairing mode after 3 min if not paired. Follow instructions Pairing with ThirdReality. Open your Alexa app, enable Third Reality skill in Skills & Games. Devices paired in Third Reality app will be automatically added into Alexa Note: Humidity value is not exposed to Alexa.
Page 15: Pairing With Smartthings
Pairing with SmartThings App: SmartThings App Devices: SmartThings Hub 2nd Gen(2015) and 3rd Gen(2018), Aeotec Smart Home Hub. Pairing steps: Before pairing, check for updates to make sure the SmartThings Hub ﬁrmware is up to date. Install the batteries. Press the reset button until the LED turns red and release.
Page 16 The Temperature and Humidity Sensor Lite will be paired with the SmartThings hub. Create routines to control connected devices.
Page 17: Pairing With Hubitat
Pairing with Hubitat Website: http://ﬁnd.hubitat.com/ Pairing steps: Install the batteries. press the reset button until the LED turns red and release. The LED turns blue and ﬂashes, indicating that it is in pairing mode. It will exit Zigbee pairing mode after 3 min if not paired.
Page 20: Pairing With Home Assistant
Pairing With Home Assistant Device: Zigbee dongle Zigbee Home Automation Install the batteries. Press the reset button until the LED turns red and release. The LED turns blue and ﬂashes, indicating that it is in pairing mode. It will exit Zigbee pairing mode after 3 min if not paired.
Page 23 Zigbee2MQTT Install the batteries. press the reset button until the LED turns red and release. The LED turns blue and ﬂashes, indicating that it is in pairing mode. It will exit Zigbee pairing mode after 3 min if not paired. Make sure Home Assistant Zigbee2MQTT Setup is ready .
Page 25: Fcc Regulatory Conformance
FCC Regulatory Conformance This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modiﬁcations not expressly approved by the party responsi- ble for compliance could void the user’...
Page 26: Rf Exposure
‐Reorient or relocate the receiving antenna. ‐Increase the separation between the equipment and receiver. ‐Connect the equipment into an outlet on a circuit diﬀerent from that to which the receiver is connected. ‐Consult the dealer or an experienced radio/TV technician for help im- portant announcement.
Page 27 ISED Statement ‐ English: This device complies with Industry Canada license‐exempt RSS standard(s).Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired oper- ation of the device.The digital apparatus complies with Canadian CAN ICES‐3 (B)/NMB‐3(B).
Page 28 Radiation Exposure Statement This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radia- tor & your body. Déclarationd'exposition aux radiations Cetéquipementestconforme Canada limitesd'exposition aux radiations dans un environnement non contrôlé.
