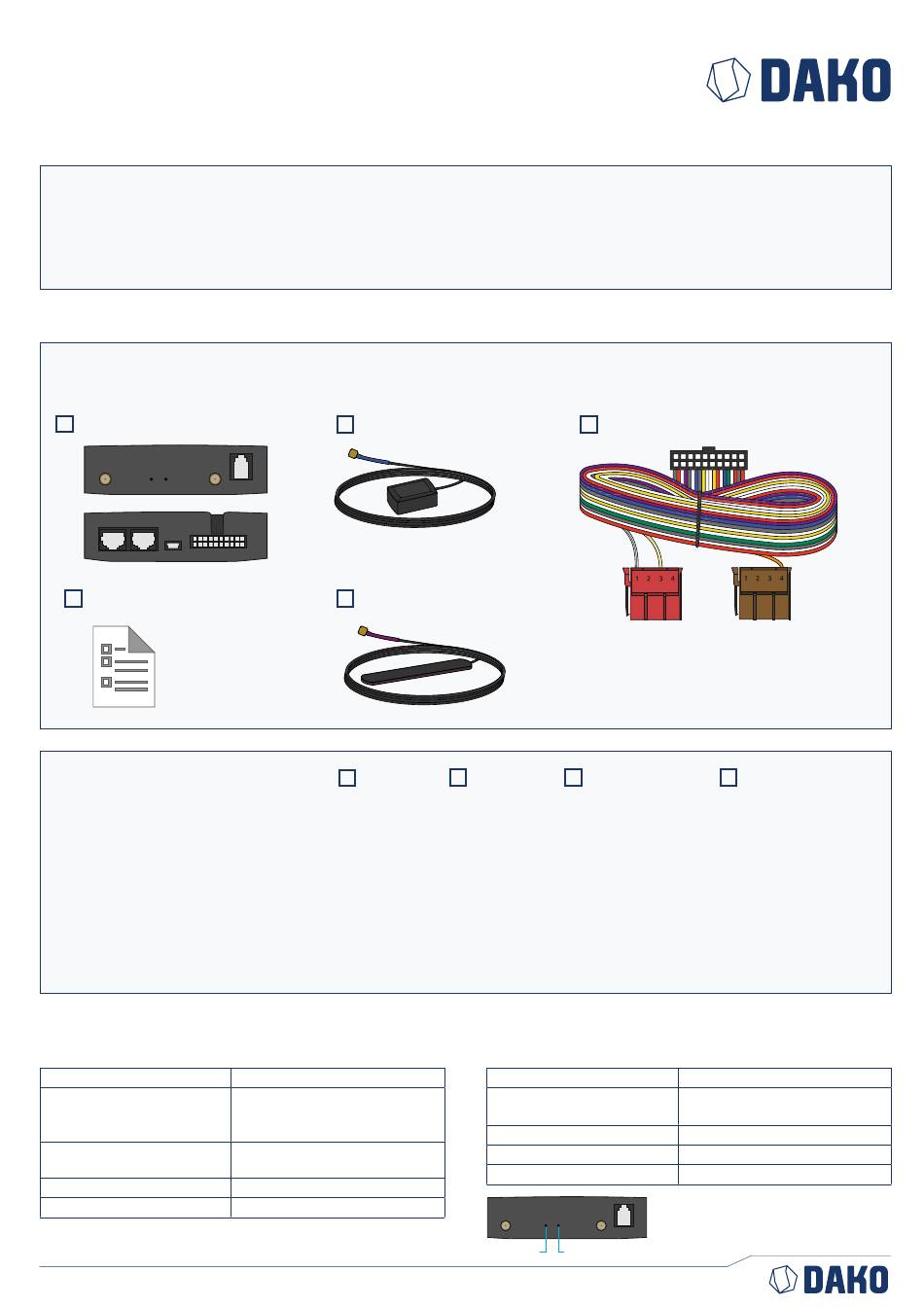

DAKO FMC640 BLE 4G Installation Manual

telematics.dako.de | tachoweb.eu
Installation Guide
FMC640 BLE 4G / FMB640 BLE 2G
Before installation, please ask our support about the remote capability of the tachograph using the type (1381) or release number
(VDO tacho versions 1.3a or later and Stoneridge device from release 7.3):
+49 3641 22778 595 or ticket@dako.de
If difficulties concerning the installation of the telematic unit with the vehicle's tachograph should occur, please consult the manufac-
turer's manual for installing third-party telematics.
Preparation
Scope of delivery:
Please note: All parts are required for installation!

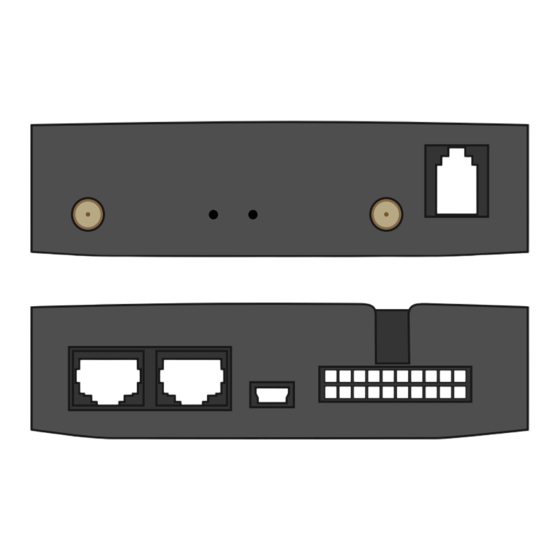

FMC640
Manual
Required for installation:
The following information has to be available at the time of the
final installation check:
IMEI FMC640: _______________________________
Licence number: ______________________________
Number of tachograph type: ____________________
Please complete this form and hand it over to the client after installation!
LED lighting
Navigation LED
Status
OFF
Blinks every second
Fast blinking
ON
Page 1
GPS antenna cable
GSM antenna cable
testing
device for
tachographs
Meaning
GNSS is switched off:
Device does not work or is in
sleep mode
Default state, GNSS operates
Software errors
No GNSS signal
+49 3641 22778 595 | ticket@dako.de | telematics.dako.de | tachoweb.eu
Wire harness (20 pins)
§57b certified staff
workshop
member
card
Tachograph has to be calibrated BEFORE installation
(Licence number/Vehicle identification number)
If the device originates from an end-of-life-vehicle, please contact
our support for further instructions.
+49 3641 22778 595
Status LED
Status
OFF
Blinks every second
Blinks every 2 seconds
Fast blinking
Navigation LED Status LED
if necessary, a 120
ohm resistor
Meaning
Device does not work or is
starting to operate
Default state
Sleep mode
Modem activity
