Summary of Contents for ROLEC taraSMART

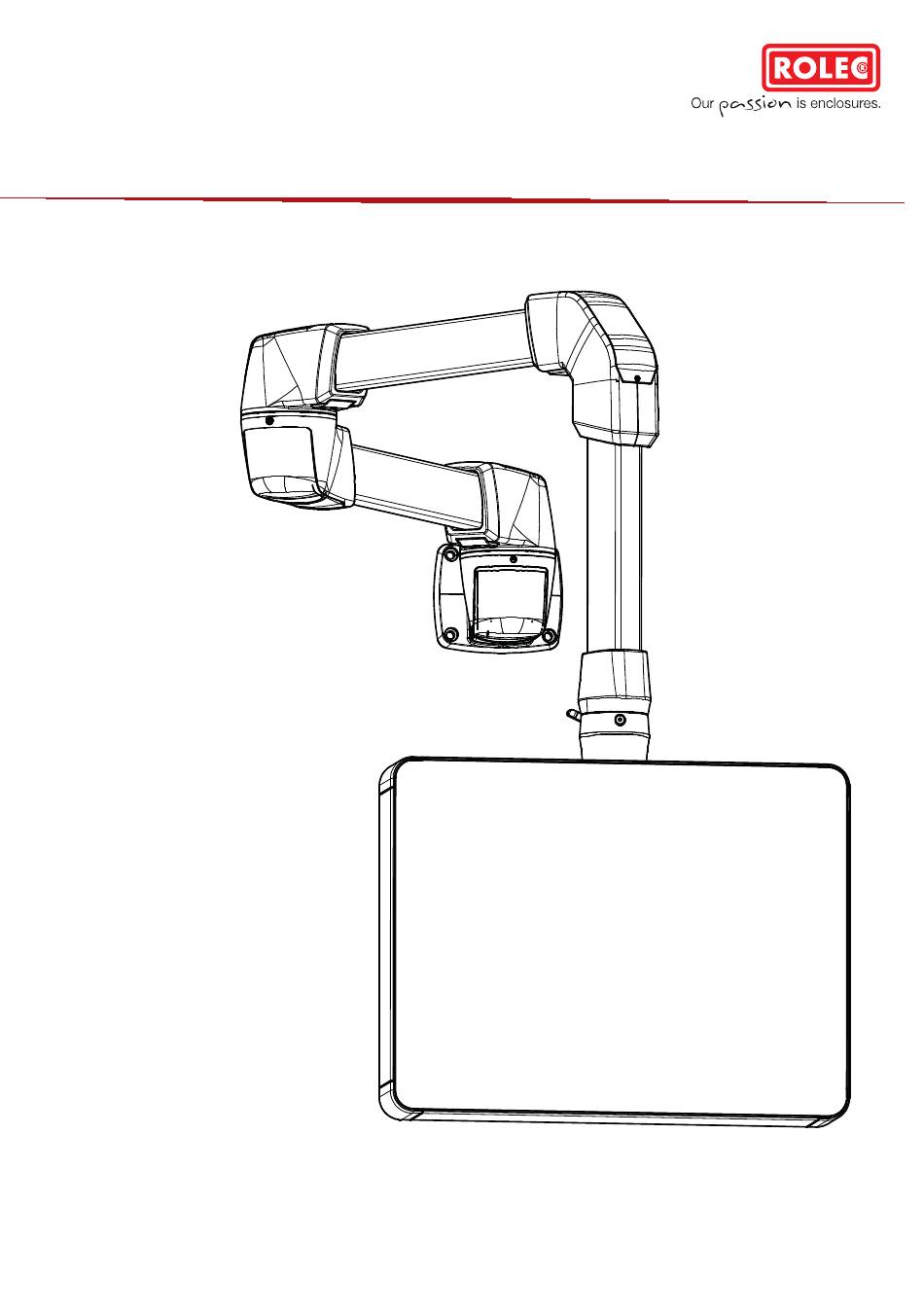

- Page 1 Tragarmsystem Suspension system Montageanleitung Assembly instructions www.rolec.de...
- Page 2 70 QUADRO 80 QUADRO 50 QUADRO 50 profiPLUS 50 profiPLUS 50 profiPLUS 70 taraPLUS taraPLUS QUADRO 50 taraSMART taraSMART profiPLUS 50 smart profiPLUS 50 smart profiPLUS 50 taraPLUS taraSMART profiPLUS 50 smart System length (m) Systemlänge (m) Deduct 40% for use with intermediate joint.
- Page 3 Systemjustierung Montagehinweis System adjustment Instruction for installation taraSMART Gültig für: Aufsatzgelenk Wandgelenk Zwischengelenk taraSMART Valid for: Socket joint Wall joint Intermediate joint 141.005.000 141.010.000 141.015.000 Tragpro l hängt Gültig für: Aufsatzgelenk Support pro le downwards Valid for: Socket joint 1/2 3/4 141.005.000...
- Page 5 Standfuß Zwischengelenk Base Intermediate joint taraSMART: 141.030.000 taraSMART: 141.015.000 Bitte Montagehinweise (Seite 4-5) beachten! Please note instruction 1 Nm (2x) for installation (page 4-5)! 1 Nm (2x) Ø 30 Nm (12x) max. 300° 30 Nm (4x) Dreh xierung Rotary xing...
- Page 7 Kupplung Ø48 Coupling Ø48 taraSMART: 141.025.001 30 Nm (2x) max. 310° 1 Nm (1x)
- Page 8 Panelkupplung Ø48 Panel coupling Ø48 taraSMART: 141.025.501 30 Nm (2x) 1 Nm (1x) max. 320°...
- Page 9 Tragarmsystem Suspension system Montageanleitung Assembly instructions ROLEC Fon +49 (0) 5751 4003-0 Gehäuse-Systeme GmbH Fax +49 (0) 5751 4003-50 info@rolec.de Kreuzbreite 2 www.rolec.de D-31737 Rinteln...
