Citizen DTA-2196PF Manual

Connecting the TV set to the other video and audio equipment

Connection of AV input /output terminal

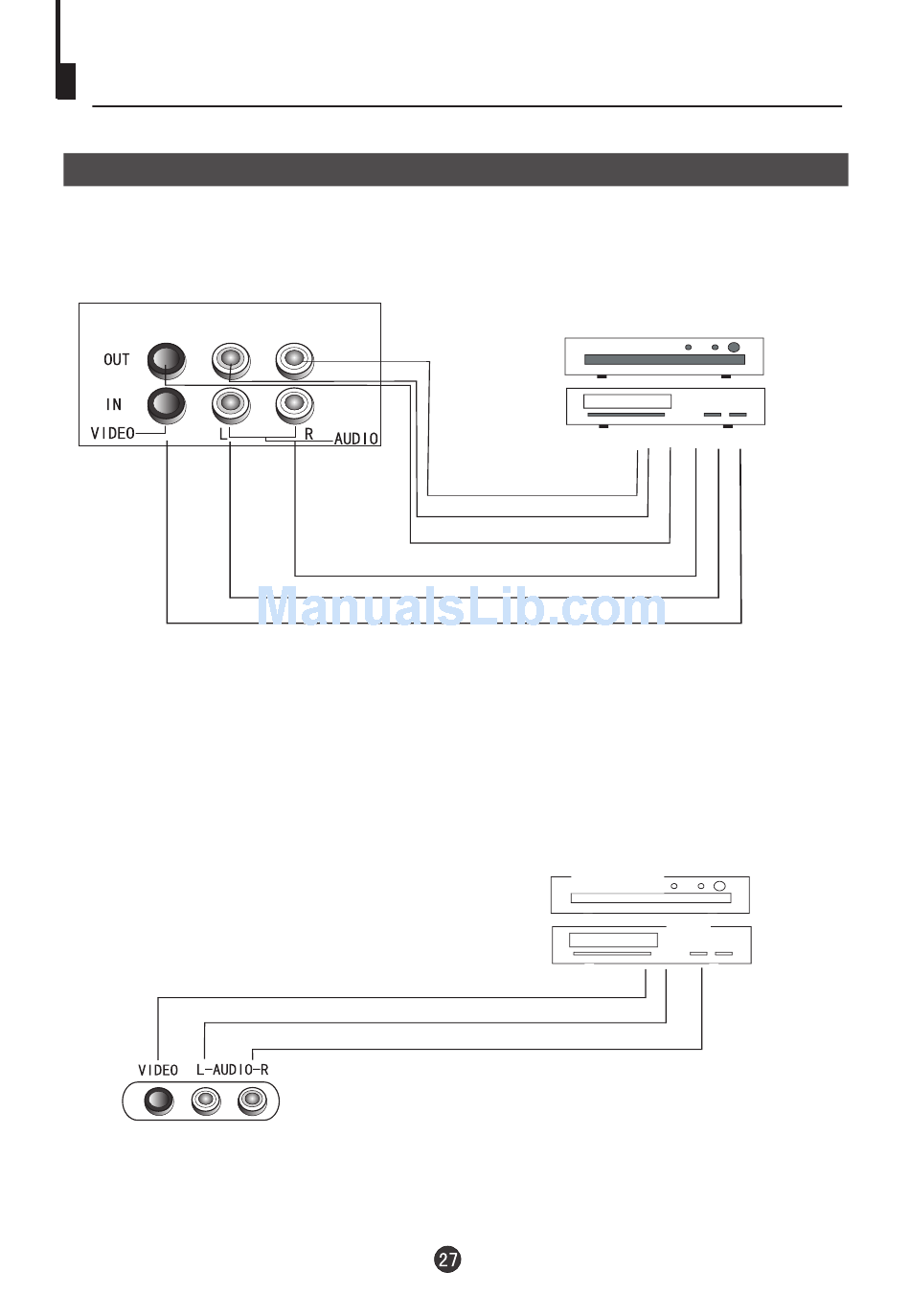

The figure below shows how to connect external equipment using AV signals.

There is also an AV input on the front of your television. Use the Left Audio input

(white terminal on the TV), if you are connecting equipment with mono sound. The

MONO sound will be delivered by both left and right speakers.

Audio right

input

Audio left

input

Video

input

output

Audio right

output

Audio left

output

Video

DVD player

Video output

Audio left output

Audio right output

DVD Player

VCR
