CM210-II
Reference User Manual
V7
Boardcon Embedded Design
www.armdesigner.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM210-II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Boardcon Embedded Design CM210-II

Summary of Contents for Boardcon Embedded Design CM210-II

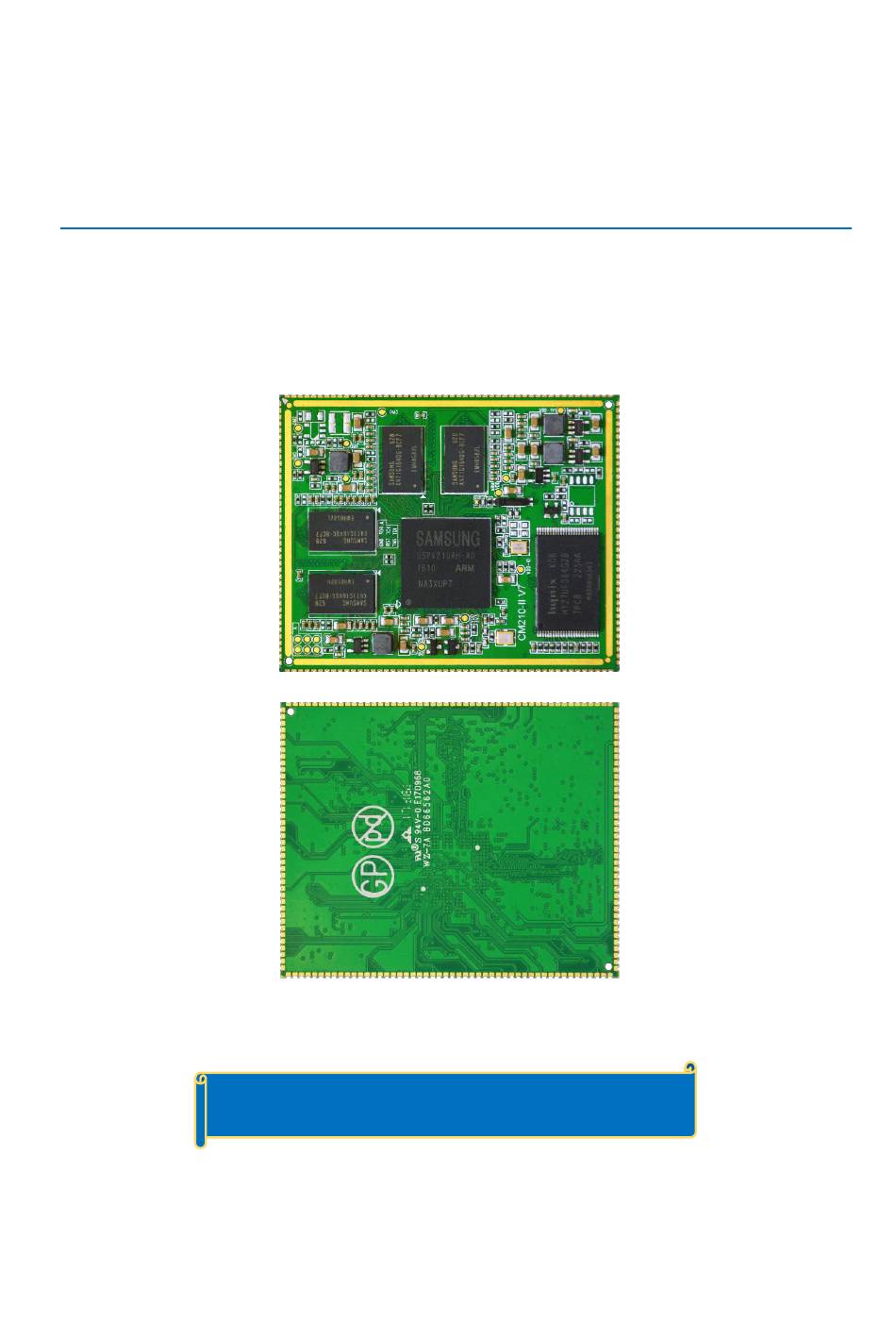

  • Page 1 CM210-II Reference User Manual Boardcon Embedded Design www.armdesigner.com...
  • Page 2 Your Idea Customize the embedded system based on 1. Introduction 1.1. About this Manual This manual is intended to provide the user with an overview of the board and benefits, complete features specifications, and set up procedures. It contains important safety information as well. 1.2.

  • Page 3: Table Of Contents

    Your Idea Customize the embedded system based on Content 1 About the Module ........................... 3 1.1 Summary ............................. 3 1.2 Features ............................3 1.3 Block Diagram..........................4 1.4 PCB Dimension..........................5 1.5 Pin Definition ..........................5 1.6 Multiplexed GPIO ........................10 1.7 Development Kit (Android210) ....................

  • Page 4: About The Module

    Customize the embedded system based on 1 About the Module 1.1 Summary CM210-II is System on Module (SOM) based on the Samsung’s S5PV210AH-A0 application processor with ARM Cortex-A8 core in small size, powerful 3D accelerator full HD (1080P) and high-performance HW multimedia.

  • Page 5: Block Diagram

    Your Idea Customize the embedded system based on 6 12bit ADIN or 2 ADIN and 4 wire RES-touch panel interface ◆ ◆ 32 interrupt sources ◆ 2 2.0 USB interface (OTG and HOST) ◆ 1 32bit PWM Timer out ◆ 1 Camera interface Max 8192 x 8192 pixels input ITU601/656 8bit support...

  • Page 6: Pcb Dimension

    Your Idea Customize the embedded system based on 1.3.2 CM210-II Block Diagram 1.4 PCB Dimension 1.5 Pin Definition Signal name Function Description IO Type Can connect to 3.7V Li battery DCIN 5V Power in DCIN 5V Power in Can connect to 3.7V Li battery...
  • Page 7 Your Idea Customize the embedded system based on Signal name Function Description IO Type Can connect to 3.7V Li battery DCIN 5V Power in VDD_IO 3.3V Power in VDD_IO 3.3V Power in VDD_ARM ARM Power test pin VDD_INT INT Power test pin VDD_MEM Memory Power test pin Must be connct to Battery or 3.3V...
  • Page 8 Your Idea Customize the embedded system based on Signal name Function Description IO Type OR KP_COL0 EINT16 EINT16/GPH2_0 OR KP_COL1 EINT17 EINT17/GPH2_1 OR KP_COL2 EINT18 EINT18/GPH2_2 OR KP_COL3 EINT19 EINT19/GPH2_3 OR KP_COL4 EINT20 EINT20/GPH2_4 OR KP_COL5 EINT21 EINT21/GPH2_5 HDMI phy TX2 N TX2N HDMI_TX2N HDMI phy TX2 P...
  • Page 9 Your Idea Customize the embedded system based on Signal name Function Description IO Type PWM time out TOUT0 TOUT0/GPD0_0 OR KP_COL6 EINT22 EINT22/GPH2_6 OR KP_COL7 EINT23 EINT23/GPH2_7 Analog output of Video DAC TVOUT XDACOUT OR KP_ROW0 EINT24 EINT24/GPH3_0 OR KP_ROW1 EINT25 EINT25/GPH3_1 Audio interface CH1...
  • Page 10 Your Idea Customize the embedded system based on Signal name Function Description IO Type Camera A data 0 in YDATA0 CAM_DATA0/GPE0_3 Camera A clock in YPCLK CAM_PCLK/GPPE0_0 Master clock to dirver Camera YCLKO CAM_CLKEN/GPE1_3 Camera A VSYNC in YVSYNC CAM_VS/GPE0_1 Camera A HSYNC in YHREF CAM_HREF/GPE0_2...

  • Page 11: Multiplexed Gpio

    Your Idea Customize the embedded system based on Signal name Function Description IO Type Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground 1.6 Multiplexed GPIO Signal name Function 1 Function 2 Function 3 TOUT0 TOUT0 GPD0_0 This pin is 32bit PWM timer output, use for LCD backlight brightness control. Signal name Function 1 Function 2...
  • Page 12 Your Idea Customize the embedded system based on TXD2 TXD2 GPA1_1 RXD2 RXD2 GPA1_0 RTSn1 RTSn1 GPA0_7 CTSn1 CTSn1 GPA0_6 TXD1 TXD1 GPA0_5 RXD1 RXD1 GPA0_4 RTSn0 RTSn0 GPA0_3 CTSn0 CTSn0 GPA0_2 TXD0 TXD0 GPA0_1 RXD0 RXD0 GPA0_0 UARTs, All CH supports both IR transmission and reception. Signal name Function 1 Function 2...

  • Page 13: Development Kit (Android210)

    Your Idea Customize the embedded system based on 1.7 Development Kit (Android210) 2 Hardware De sign Guide 2.1 Peripheral Circuit Reference 2.1.1 RTC Battery Circuit...
  • Page 14 Your Idea Customize the embedded system based on 2.1.2 HDMI Interface Circuit 2.1.3 OTG Interface Circuit...
  • Page 15 Your Idea Customize the embedded system based on 2.1.4 OM Setting Circuit 2.1.5 SD0 Interface Circuit...
  • Page 16 Your Idea Customize the embedded system based on 2.1.6 Audio Codec Circuit 2.1.7 Ethernet Interface Circuit...

  • Page 17: Pcb Footprint

    Your Idea Customize the embedded system based on 2.2 PCB Footprint 3 Product Electrical Characteristics 3.1 Dissipation and Temperature Symbol Parameter Unit DC5V Module Supply Voltage VDD_IO IO Supply Voltage 3.3-5% 3.3+5% Vrvpp Max ripple Voltage 0.15 Idmax DC5V Max Input Current Ipmax VDD_IO Max Current VCC_RTC...

  • Page 18: Reliability Of Test

    Your Idea Customize the embedded system based on 3.2 Reliability of Test High Temperature Operating Test Contents Operating 8h in high temperature 55°C±2°C Result Pass Operating Life Test Contents Operating in room 120h Result Pass...
