Title : Micro-Link® 5 Smart Battery Charger
P/N : 07-00614-00
Micro-Link® 5 Smart Battery Charger Instructions.
Tools Required:
1) DC power adaptor, Output: 12VDC, 5A. (Purchase local)
Adapter must be equipped with surge protection.
Cable Length may not exceed 3m.
2) ML5 battery 79-66081-20/79-66085-20
Package Content:
Item
1
2
This instruction should be read through completely before proceeding.
1. Remove the ML5 battery from the unit or shipping packaging.
2. Connect the ML5 battery to the Battery Charger:
a. Connect the DC power adaptor to the DC power jack of the battery Charger (see figure 1).
b. Connect the ML5 Battery to an available battery charger slot (see figure 1).
DC Power Jack
Power Switch
SOC Switch
Charger Legend
Status LEDs
Charge Slots
Used On:
Micro-Link® 5 Smart Battery 79-66081-20/79-66085-20
ALL USES AND PUBLICATION RIGHTS RESERVED - PROPERTY OF CARRIER TRANSICOLD, ROTTERDAM, NL
Description
Micro-Link® 5 Smart Battery Charger
Instruction Manual

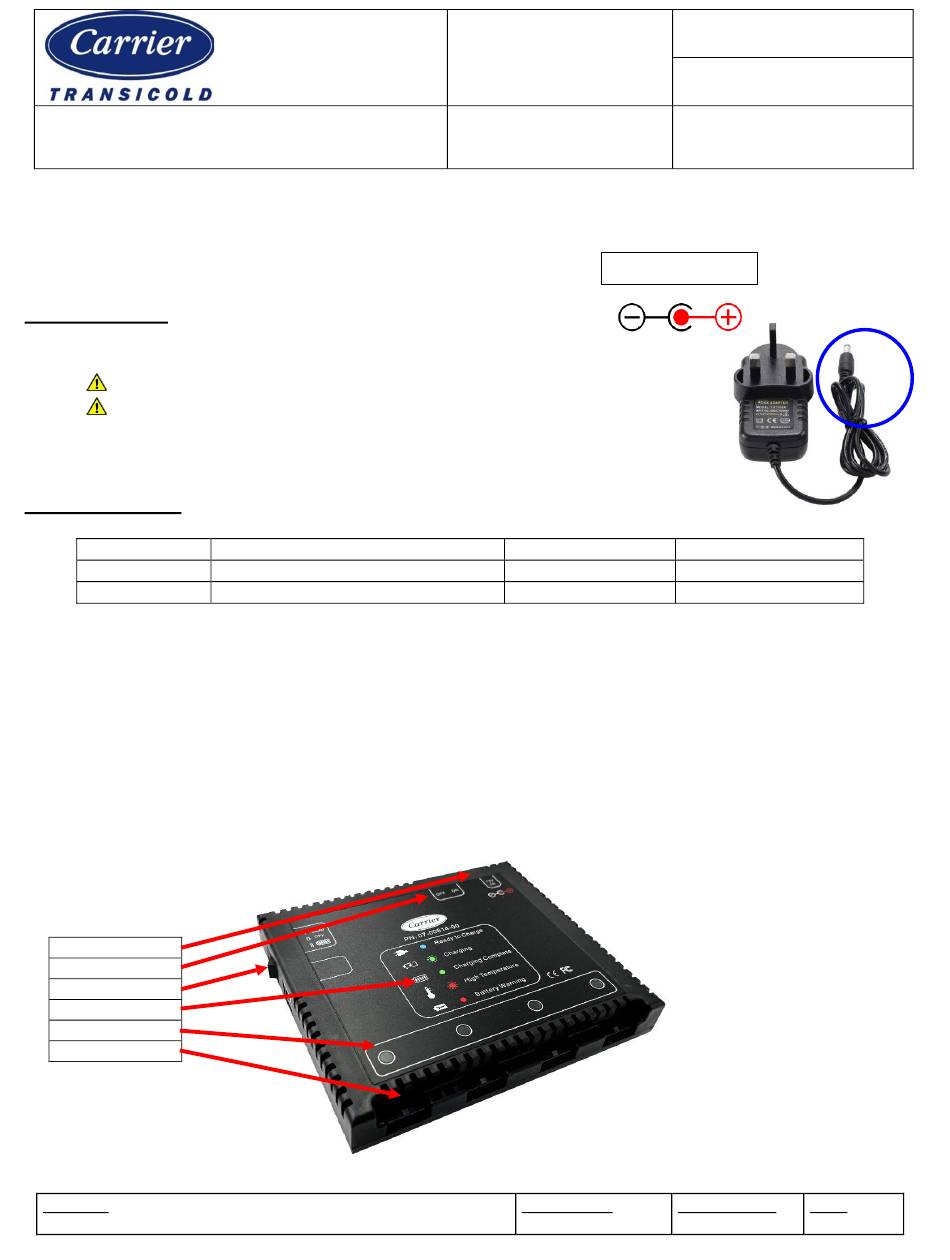

Figure 1. Functional Overview
