- Page 1 INSTRUCTION MANUAL Advanced Skin & Vein Replacement LF01122 (Light) LF01123 (Dark) LF01124 (Vein) WARNING: Products may contain dry natural rubber. Do not remove film from tubing.
-
Page 2: List Of Components

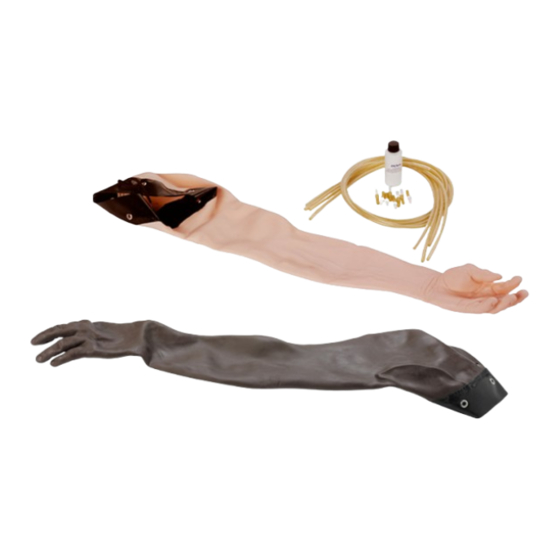

List Of Components •LIST OF COMPONENTS FOR LF01122 • 4 Dry Natural Rubber Tubes (Veins) • Shoestring • 2-oz. Bottle of Lubricant • Replacement Arm Skin (Light) LIST OF COMPONENTS FOR LF01123 • 4 Dry Natural Rubber Tubes (Veins) • Shoestring •... - Page 3 Instructions for Use Figure 1 Figure 2 REMOVING THE ARM SKIN AND VEINS REMOVING THE ARM SKIN AND VEINS A. To remove the skin from the arm core, open the shoestring at the top of the arm. A. To remove the skin from the arm core, open the shoestring at the B.
- Page 4 G. If needed, clean the arm core with soap and water. REPLACING THE VEIN TUBING A. Figure 3 shows how the four vein tubing sections should be connected to the connector block. The tube fittings are not shown. Instructions for Use Note: All diagrams have been color coded for illustration purposes only.
- Page 5 Instructions for Use Figure 4 C. Refer to Figure 4 (Green). Plug one end of the tubing into fitting #2. Press the tubing into the channel, around the loop near the wrist, and back to the connector block at fitting #3. Figure 4 C.
- Page 6 Instructions for Use to the channel, Figure 7 Figure 8 Figure 9 REASSEMBLING THE ARM REASSEMBLING THE ARM A. Feed the inlet/outlet tube through the large channel and out the hole in the upper arm. Replace the muscle pad over it. A.
- Page 7 B. Pour the remaining lubricant into the skin, allowing lubricant to run down the sides (See figure 7.) Squeeze the skin between extended hands. Work your hands back and forth, up and down the skin to coat the inside of the skin thoroughly. C.
-
Page 8: Supplies And Replacement Parts
LF01099 Vein Tubing Sealant LF01104 IV Arm Skin & Vein Replacement DVD — FREE LF01105 IV Arm Set-Up & Troubleshooting DVD — FREE LF01122 Light Skin & Vein Replacement Kit LF01123 Dark Skin & Vein Replacement Kit LF01124 Vein Replacement Kit LF01130 Fluid Supply Nasco Cleaner Actual product may vary slightly from photo.
