  • Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. GOLDSTAR MA-1117B Owner's Manual Shop genuine replacement parts for GOLDSTAR MA-1117B Find Your GOLDSTAR Microwave Parts - Select From 234 Models -------- Manual continues below --------...
  • Page 2 Feb, 2000 P/NO : 3828W5S1449 Printed in Korea...
  • Page 3 website http://biz.LGEservice.com e-mail http://www.LGEservice.com/techsup.html MICROWAVE OVEN SERVICE MANUAL MODEL : MA-1117W/B CAUTION BEFORE SERVICING THE UNIT, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS This device is to be serviced only by properly qualified service personnel. Consult the service manual for proper service procedures to assure continued safety operation and for precautions to be taken to avoid possible exposure to excessive microwave energy. PRECAUTIONS TO BE OBSERVED BEFORE AND DURING SERVICING TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY...

  • Page 5: Table Of Contents

    CONTENTS (Page) SAFETY PRECAUTIONS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Inside front cover SPECIFICATIONS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-1 CAUTIONS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-1 INSTALLATIONS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-1...

  • Page 6: Specifications

    SPECIFICATIONS ITEM DESCRIPTION MA-1117W/B MODEL 120 Volts AC 60 Hz Power Requirement 1,550 Watts (13.6 A) Single phase, 3-wire grounded 1,150 Watts full microwave power (IEC705) Power Output 2,450 MHz Microwave Frequency 2M246, 2M248J Magnetron 0 ~ 99 min. 99 sec. Timer ”...

  • Page 7: Cautions

    CAUTIONS Unlike other appliances, the microwave oven is MICROWAVE RADIATION high-voltage and high-current equipment. Personnel should not be exposed to the Though it is free from danger in ordinary use, microwave energy which may radiate from the extreme care should be taken during repair. magnetron or other microwave generating device if it is improperly used or connection.

  • Page 8: Installations

    INSTALLATIONS BEFORE YOU BEGIN, READ THE FOLLOWING INSTRUCTIONS COMPLETELY AND CAREFULLY. INSTALLING GROUNDING INSTRUCTIONS 1. Empty the microwave oven and clean inside it with For personal safety, this appliance must be fully a soft, damp cloth. Check for damage such as grounded at all times.

  • Page 9: Operating Instructions

    OPERATING INSTRUCTIONS FEATURES Oven Front Plate Window Door Screen Door Seal Display Window Control Panel Safety Door Lock System Turntable Rotating Ring CONTROL PANEL 1. DISPLAY 2. MORE / LESS: All of the one touch cook and TIMED COOK can be adjusted to cook food for a longer or shorter time. MORE Pressing MORE will add 10 seconds to the cooking time.

  • Page 10: Operating Sequence

    OPERATING SEQUENCE The following is a description of component functions during oven operation. 1. SETTING THE CLOCK 7. AUTO DEFROST COOKING AUTO CLEAR CLOCK NUMBER CLOCK CLEAR START/PAUSE WEIGHT DEFROST ex.) To set 4:30, touch number key [4],[3], and [0]. NOTE: 1) This is a 12 hour clock.

  • Page 11: Schematic Diagram

    SCHEMATIC DIAGRAM...

  • Page 12: Circuit Description

    CIRCUIT DESCRIPTION • A high voltage of approximately 2100 volts AC is GENERAL DETAILS generated in the secondary of the high voltage transformer which is increased by the action of the high • The low voltage transformer supplies the necessary voltage diode and charging of the high voltage voltage to the micom controller when power cord is capacitor.

  • Page 13: Service Information

    SERVICE INFORMATION TOOLS AND MEASURING INSTRUMENTS NECESSARY TOOLS NECESSARY MEASURING INSTRUMENTS Tools normally used for TV servicing are sufficient. • TESTER (VOLTS-DC, AC, Ohmmeter) Standard tools are listed below. • Microwave survey meter • Diagonal pliers - Holaday HI-1500 • Long nose pliers HI-1501 •...
  • Page 14 MEASUREMENT WITH OUTER CASE NOTES WHEN MEASURING REMOVED • Do not exceed meter full scale deflection. • The test probe must be removed no faster than • When you replace the magnetron, measure for 1 inch/sec (2.5 cm/sec) along the shaded area, microwave energy leakage before the outer case is otherwise a false reading may result.

  • Page 15: Measurement Of Microwave Power Output

    MEASUREMENT OF MICROWAVE POWER OUTPUT • Microwave power output measurement is made with • The microwave power output P in watts is calculated the microwave oven supplied at its rated voltage and from the following formula : operated at its maximum microwave power setting with 4187 x (∆T) a load of (1000±5) g of potable water.
  • Page 16 D. PCB ASSEMBLY REMOVAL Remove choke cover 1) Remove the control panel assembly from the cavity. (Refer to control panel assembly removal on previous page.) 2) Remove screws which hold the PCB SUB ASSEMBLY to the control panel. 3) Disconnect the flat cable from the PCB SUB ASSEMBLY and take off the PCB SUB ASSEMBLY.
  • Page 17 F. MAGNETRON REMOVAL G. REMOVING THE TURNTABLE MOTOR 1) Remove the turntable and rotating ring. 1) Disconnect the leadwire from the magnetron. 2) Lay the unit down on its back. 2) Carefully remove the mounting screws holding the 3) Remove the turntable motor cover. magnetron and the waveguide.
  • Page 18 H. HIGH VOLTAGE TRANSFORMER K. INTERLOCK SYSTEM REMOVAL 1) INTERLOCK MECHANISM The door lock mechanism is a device which has 1) Discharge the high voltage capacitor. been specially designed to eliminate completely 2) Disconnect the leadwire from magnetron, high voltage microwave activity when the door is opened during transformer, and capacitor.

  • Page 19: Interlock Continuity Test

    INTERLOCK CONTINUITY TEST WARNING : FOR CONTINUED PROTECTION AGAINST EXCESSIVE RADIATION EMISSION, REPLACE ONLY WITH IDENTICAL REPLACEMENT PARTS. ALL THESE SWITCHES MUST BE REPLACED AT THE SAME TIME. TYPE NO. SZM-V 16-FA-63 OR VP-533A-OF FOR PRIMARY SWITCH TYPE NO. SZM-V 16-FA-62 OR VP-532A-OF FOR MONITOR SWITCH TYPE NO.

  • Page 20: Component Test Procedure

    COMPONENT TEST PROCEDURE CAUTIONS 1. DISCONNECT THE POWER SUPPLY CORD FROM THE OUTLET WHENEVER REMOVING THE OUTER CASE FROM THE UNIT. PROCEED WITH THE TEST ONLY AFTER DISCHARGING THE HIGH VOLTAGE CAPACITOR AND REMOVING THE WIRE LEADS FROM THE PRIMARY WINDING OF THE HIGH VOLTAGE TRANSFORMER.
  • Page 21 COMPONENTS TEST PROCEDURE RESULTS Antenna Gasket Chassis Filament NOTE: When testing the magnetron, be sure to install the magnetron gasket in the correct position and be sure that the gasket is in good condition. HIGH VOLTAGE Measure the resistance. Normal: Momentarily indicates CAPACITOR (Ohm-meter scale: Rx1000) several ohms, and...
  • Page 22 COMPONENTS TEST PROCEDURE RESULTS Check for continuity of relay 2 with an RELAY 2 POWER ohm-meter. LEVEL (Remove wire leads from relay 2 and operate the unit.) 4 sec 18 sec 6 sec 16 sec 8 sec 14 sec 10 sec 12 sec 12 sec 10 sec...

  • Page 23: Troubleshooting

    TROUBLESHOOTING WHEN YOU GET A COMPLAINT FROM YOUR CUSTOMER, EVALUATE THE COMPLAINT CAREFULLY. IF THE FOLLOWING SYMPTOMS APPLY, PLEASE INSTRUCT THE CUSTOMER IN THE PROPER USE OF THE MICROWAVE OVEN. THIS CAN ELIMINATE AN UNNECESSARY SERVICE CALL. CAUTIONS 1. Check grounding before checking for trouble. 2.
  • Page 24 (TROUBLE 1) The following visual conditions indicate a probable defective control circuit. 1. Incomplete segments. • Segment missing. • Partial segment missing. • Digit flickering (NOTE: Slight flickering is normal.) 2. Colon does not turn on or blink. 3. A distinct change in the brightness of one or more numbers in display. 4.
  • Page 25 (TROUBLE 2) Oven does not operate at all, display window does not display any figures, and no input is accepted. CONDITION CHECK RESULT CAUSE REMEDY Replace fuse, Malfunction of the Check continuity 1. Fuse blows. Continuity. monitor switch. primary, monitor, of monitor secondary switch (with...
  • Page 26 (TROUBLE 3) Display shows all figures set, but oven does not start cooking while desired program times are set and START pad is touched. CONDITION CHECK RESULT CAUSE REMEDY Defective Replace Check continuity 1. Setting time No continuity. secondary switch. secondary switch.
  • Page 27 (TROUBLE 5) No microwave oscillation even though oven lamp and fan motor run. (Display operates properly) CONDITION CHECK RESULT CAUSE REMEDY No microwave Defective PCB Replace PCB Disconnect the No continuity. oscillation. assembly. assembly. wire leads from relay 2 and check continuity Continuity.

  • Page 28: Exploded View

    EXPLODED VIEW INTRODUCTION OVEN CAVITY PARTS INTERIOR PARTS BASE PLATE PARTS DOOR PARTS LATCH BOARD PARTS CONTROL PANEL PARTS...

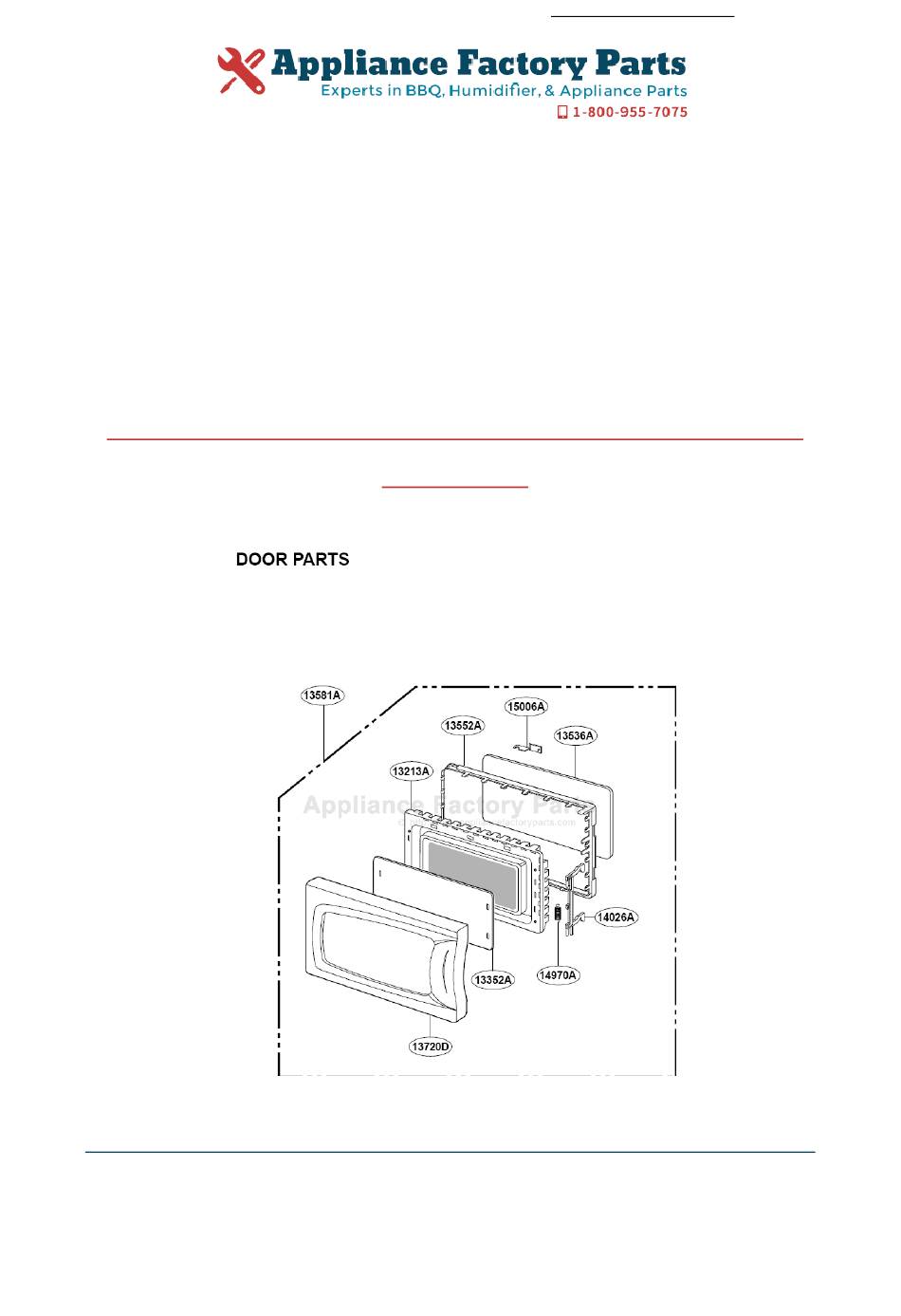

  • Page 29 DOOR PARTS 13581A 15006A 13552A 13536A 13213A 14026A 14970A 13352A 13720D...
  • Page 30 CONTROLLER PARTS 24781M 23572A 23550D 268711 26638A WTP018...
  • Page 31 OVEN CAVITY PARTS 33112U WSZ185 33052M 340511 WTT020 33390G 36549S 35889A WTP013...
  • Page 32 LATCH BOARD PARTS 43501A WSZ085 466002 43500A 466003 466001...
  • Page 33 INTERIOR PARTS WSZ002 568771 56411A 50FZZA 56930V 55006A 56549F WTT028 54974S WSZ002 55900A WTT037 35012A WSZ002 WTT028 56324A 50CZZH 56912B WSZ002 WSZ002 56851D 55262A 54810C WTT028...
  • Page 34 BASE PLATE PARTS 56170D 63303L 63303R 647781 WTT028 WSZ002 WTT021...

  • Page 35: Schematic Diagram Of P.c.b

    SCHEMATIC DIAGRAM OF P.C.B.

  • Page 36: Printed Circuit Board

    PRINTED CIRCUIT BOARD...
