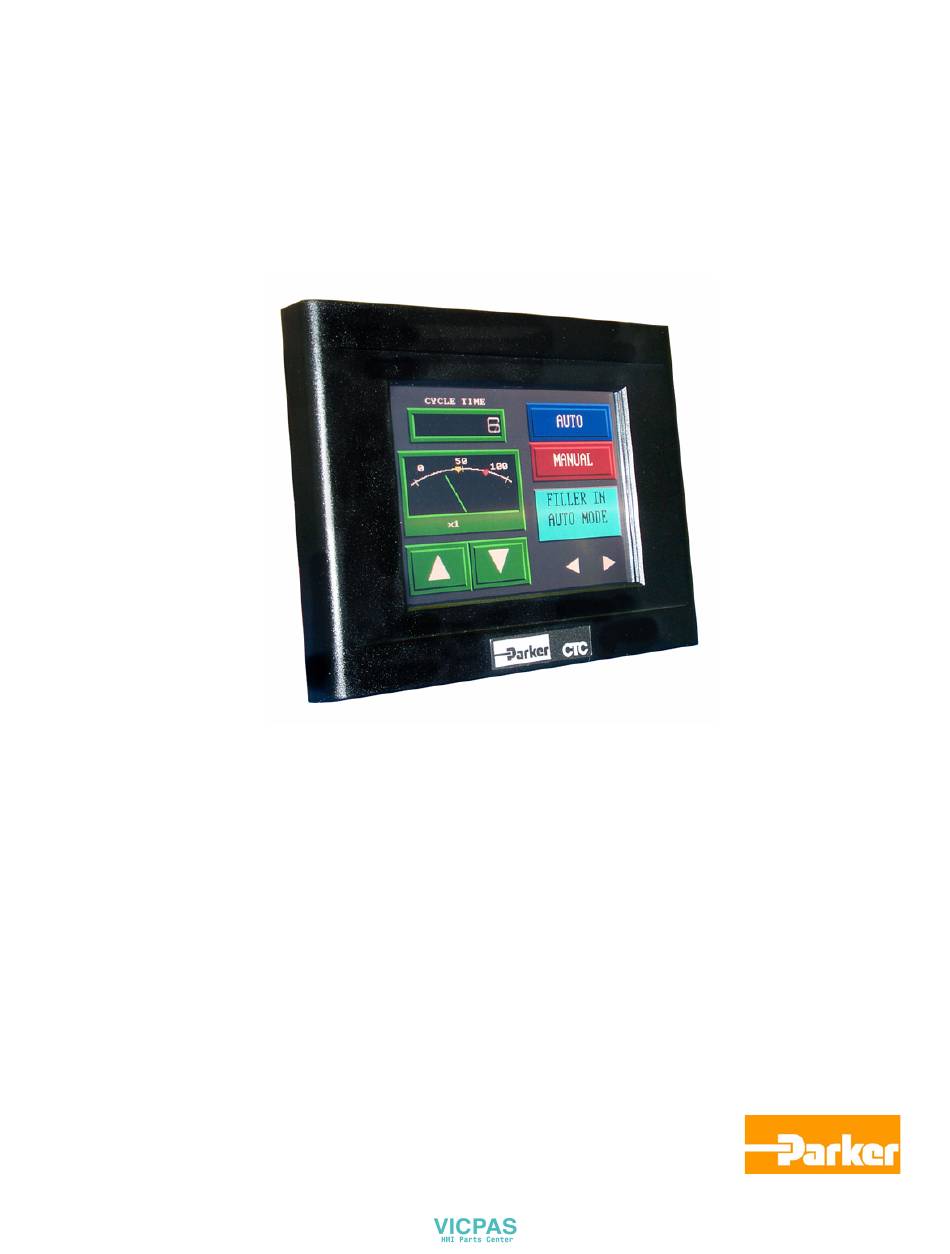

- Page 1 P13 PowerStation User Guide February 2008 Parker Electromechanical 50 W. TechneCenter Drive, Milford, Ohio 45150 Part #: 88-026287-01...
- Page 2 Copyright and Trademark Notice Copyright © 2008 by Parker Electromechanical. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, in any form or by any means, mechanical, photocopying, recording or otherwise, without the prior written consent of Parker Electromechanical.
-
Page 3: Table Of Contents
Table of Contents 1 Introduction ............Using this Manual . - Page 4 Connecting a Serial Mouse ........3-7 Ethernet Port .
-
Page 5: Introduction
P13 PowerStation, and the steps necessary to get your PowerStation up and running. This chapter also describes Parker’s customer support services. Chapter 2 — Installing the PowerStation: Explains how to select an installation location, prepare for installation, and finally install the P13 PowerStation. -
Page 6: Hardware Versions
Chapter 1: Introduction Hardware Versions Appendix B - System Configuration Files: This section includes a complete listing of the Config.sys and Autoexec.bat files. Hardware Versions There are two display resolutions offered with the P13 PowerStation: • P1306Q, 320x240 (QVGA) • P1306V, 640x480 (VGA). -
Page 7: Documentation Library
P13 PowerStation User Guide - This document contains all the information you need to configure, install and use the PowerStation. You can download Parker Electromechanical product documentation from our web site at www.ctcusa.com. Click on the Support link then select Product Manuals to find the appropriate manual. -
Page 8: Iso Symbols
World Wide Web http://www.parkermotion.com or http://www.ctcusa.com Parker recognizes that every customer and every application has different support needs, as a result Parker offers a variety of support services designed to meet these needs. Parker offers two types of customer support services: •... -
Page 9: Product Technical Support
Review Chapter 4, Maintaining the PowerStation. • Visit the Parker Automation - CTC Web site and register for the support forum. You can find the support forum by clicking on the Support tab from the Web site’s home page: http://www.ctcusa.com. -
Page 10: Getting Started
Chapter 1: Introduction Getting Started Getting Started Now that you have opened the P13 PowerStation, you are ready to unpack the unit, install it in a permanent location, and develop an application for it. Follow the steps below to get started. Unpack the PowerStation and verify that you have received all of the components you ordered. -
Page 11: Installing The Powerstation
NSTALLING THE OWER TATION Once you have unpacked the P13 PowerStation and verified that you have received all of the components you ordered, you are ready to install the PowerStation in a permanent location. This chapter covers the following topics: •... -
Page 12: Environmental Guidelines
Chapter 2: Installing the PowerStation Selecting a Location Environmental Guidelines The environment is the area where the P13 PowerStation will be located. In general, you should select a place that limits the unit’s exposure to adverse conditions such as dust, oil, moisture, and corrosive vapors. Touchscreen Considerations The P13 PowerStation’s touchscreen is designed to meet the NEMA 4/4X and Type 12 rating. - Page 13 Chapter 2: Installing the PowerStation Selecting a Location P13 PowerStation’s have been tested for use in 50 C ambient, still air locations. This means that when installed, the ambient air surrounding the backside of the PowerStation is not expected to exceed 50 C.
-
Page 14: Enclosure Guidelines
Chapter 2: Installing the PowerStation Selecting a Location Enclosure Guidelines Select an enclosure that is large enough to allow free airflow in and around the unit. You should allow a minimum of 2 inches between the enclosure and the top, bottom, and sides of the P13 PowerStation to allow access to the cabling and CompactFlash. -
Page 15: Class I, Division 2 Guidelines
Chapter 2: Installing the PowerStation Selecting a Location Class I, Division 2 Guidelines If you purchased a Class I, Division 2-compliant PowerStation, it is suitable for use in Groups A, B, C, and D hazardous locations. You must follow these guidelines in order to maintain a safe operating environment. •... -
Page 16: Preparing For Installation
If you plan to operate the P13 PowerStation using AC power, and you purchased Parker’s optional AC Power Supply, you will need to prepare a location for the Power Supply also. Procedures for creating the cutout and preparing a location for the AC Power Supply are described below. -
Page 17: Installing The P13 Powerstation
Chapter 2: Installing the PowerStation Installing the P13 PowerStation Installing the P13 PowerStation Once you have prepared the location for your PowerStation, you are ready to install the unit. To do so, you need to mount the PowerStation to your enclosure using screws and metal clamps in what is called a bracket assembly. - Page 18 Chapter 2: Installing the PowerStation Installing the P13 PowerStation Tighten each of the mounting screws against the front of the enclosure. Torque them down to 6 in/lbs. Tighten the screws in a crosswise sequence to ensure a good seal and prevent damage. Tightening the bracket assembly may not ensure that the gasket seal is totally depressed by the bezel.
-
Page 19: Installing An Optional Ac Power Supply
The P13 PowerStation uses only 12 or 24 volt DC power. However, you can operate the PowerStation with AC power by using an optional AC Power Supply available from Parker. Use this section only if you intend to operate the P13 PowerStation using AC power. If you plan to use DC power, refer to Installing the P13 PowerStation on page 2-7. -
Page 20: Connecting The Power Supply To The Workstation
Chapter 2: Installing the PowerStation Installing an Optional AC Power Supply Connecting the Power Supply to the Workstation Once you have mounted the power supply, you are ready to connect it to the workstation. Slide the positive and negative wires into the appropriate slots on the power connector that was shipped with the workstation. -
Page 21: Starting Your Powerstation
TARTING OWER TATION This chapter discusses the following topics: • PowerStation Connectors • Starting the P13 PowerStation • Using the CompactFlash Card • Using the BIOS Utility The P13 PowerStation is shipped with the Documentation and Utilities CD. This CD contains all of the dimensional drawings, software, and drivers needed. - Page 22 Chapter 3: Starting Your PowerStation PowerStation Connectors communication standards that the controller supports. Use a standard DB9 connector for communicating with this port. Note: If you are using RS-232 communications, the length of the serial cable should not exceed 50 feet (15 meters). RS-422 and RS-485 communications offer greater noise immunity than RS-232.
-
Page 23: Settings And Pinouts For Com1
Chapter 3: Starting Your PowerStation PowerStation Connectors Settings and Pinouts for COM1 If you need to make a cable for communicating with COM1, Table 3-1 shows the pinouts and signal information for this port. Table 3-1: COM1 Pinouts Pin# Signal DCD, data carrier detect RXD, received data TXD, transmitted data... - Page 24 Chapter 3: Starting Your PowerStation PowerStation Connectors Once you make a cable for communicating with COM2, you will need to set the COM2 DIP switch settings. COM2 is set to the RS-485 protocol by default. To change COM2 to the RS- 232 or RS-422 protocol, you must change the COM2 DIP switch settings.
-
Page 25: Rs-485 Directional Control
Chapter 3: Starting Your PowerStation PowerStation Connectors Figure 3-3: Connector Pinouts and Cable Wiring RS-232 RS-422 RS-485 Note: Be careful not to connect any wires to unused connector pins. RS-485 Directional Control Many device drivers use the RTS signal to switch between receive and transmit mode. - Page 26 Chapter 3: Starting Your PowerStation PowerStation Connectors Figure 3-4: Serial Transfer Cable Diagram Connect a null modem serial cable to an available serial port on your development PC. Connect the other end of the cable to the serial port on the P13 PowerStation.
-
Page 27: Keyboard And Mouse
Chapter 3: Starting Your PowerStation PowerStation Connectors Keyboard and Mouse The P13 PowerStation allows you to use a USB keyboard and USB mouse in addition to the touchscreen. The PowerStation accepts any IBM AT- compatible keyboard, including 84-key standard keyboards and 101-key enhanced USB keyboards. -
Page 28: Configuring The Ethernet Interface
Chapter 3: Starting Your PowerStation PowerStation Connectors Configuring the Ethernet Interface The \NET directory of the P13 PowerStation’s CompactFlash contains a configuration utility and all drivers necessary to configure the Ethernet interface on the PowerStation. Backup copies of these files are included on the MachineShop Shell Installation Disk. -
Page 29: Compactflash
CF card. It is also useful to own several cards to store different projects. You can purchase additional CF cards through Parker. Note: Do not remove or insert the CF card when the unit is powered on or data on the card could be corrupted. -
Page 30: Reinstalling The Powerstation Utilities
You should purchase at least one additional CF card to serve as a backup for your primary CF card. You can also have several cards to store different projects. You can purchase additional CF cards from Parker. The P13 PowerStation supports Type 1 or Type 2 CF cards. -
Page 31: Reformatting The Compactflash Card
Chapter 3: Starting Your PowerStation Using the BIOS Utility Reformating the CompactFlash Card Warning:Manually formatting a CompactFlash card in Windows NT, 2000, XP, or Vista before using Flashback could possibly make the CF card unusable. Warning:Removing the CompactFlash card: During a disk transfer procedure, do not remove the CF card before issuing a Stop or shutting down the USB port service. -
Page 32: Using The Bios Utility
Chapter 3: Starting Your PowerStation Using the BIOS Utility Every computer with a motherboard includes a special chip referred to as the BIOS or ROM BIOS (Read Only Memory Basic Input/Output System). The BIOS includes instructions to interact with the computer hardware. It also includes a test which ensures that the computer meets requirements to boot up properly. - Page 33 Chapter 3: Starting Your PowerStation Using the BIOS Utility • Motherboard Device Configuration Allows you to configure serial and parallel ports. • Miscellaneous Configuration Allows you to display a splash screen and/or a summary screen. The timeout field sets the time for how long the screen is displayed. The time is in milliseconds and goes from 0 to 65535.
-
Page 34: Maintaining The Powerstation
AINTAINING THE OWER TATION The PowerStation has been designed to provide years of trouble-free operation even in the harshest environments. However, occasionally you need to perform routine maintenance on some of the monitor’s components. This chapter provides instructions on maintaining your PowerStation: •... -
Page 35: Using The Machineshop Shell Calibration Utility
Maintaining the Touchscreen Calibrating the Touchscreen Calibrating the touchscreen ensures that it is aligned with your display. The monitor’s touchscreen is calibrated before leaving Parker. However, you may need to recalibrate the touchscreen in certain circumstances, such as: • Moving a CompactFlash card between P13 PowerStations •... -
Page 36: Replacing The Compactflash
Do not force the CompactFlash in the wrong way. If you need additional storage capacity for the P13 PowerStation, you can purchase additional CompactFlash cards from Parker. Be sure to purchase at least one additional flash card to serve as a backup for your primary CF. -
Page 37: Performing Internal Maintenance
Chapter 4: Maintaining the PowerStation Performing Internal Maintenance Performing Internal Maintenance Before doing any internal maintenance, be sure to read and understand the following procedures to prevent injury to yourself and/or damage to the PowerStation. • Electrostatic Discharge (ESD) Precautions •... - Page 38 Chapter 4: Maintaining the PowerStation Performing Internal Maintenance Removing the PowerStation from an Enclosure To remove the PowerStation from it’s enclosure, follow the steps below. Explosion Hazard! • Do not connect or disconnect cables unless the power has been switched off, or the area is known to be safe. WARNING! Turn off the power to the unit.
- Page 39 Chapter 4: Maintaining the PowerStation Performing Internal Maintenance Figure 4-3: Backshell Screws Remove these screws from the back of the PowerStation. Lift the backshell off of the PowerStation to expose the board. You are now ready to perform any internal maintenance necessary. Important: When you lift the backshell off of the unit the USB ground comes off of the backshell.
-
Page 40: Closing The Powerstation
Chapter 4: Maintaining the PowerStation Performing Internal Maintenance Figure 4-5: Replacing the USB Ground on the Backshell The USB ground is replaced on the inside of the backshell. Closing the PowerStation Replace the USB ground on the inside of the backshell as discussed on page 4-6. -
Page 41: Replacing The Fuse
Chapter 4: Maintaining the PowerStation Performing Internal Maintenance Replacing the Fuse The P13 PowerStation has a protective fuse that you can replace by opening up the back cover. An ohm meter is required to see whether the fuse is open or closed. The required fuse is listed below. •... -
Page 42: Optional Components
Chapter 4: Maintaining the PowerStation Optional Components Optional Components Parker has an optional component that you may want to purchase for the P13 PowerStation—an AC Power Supply. AC Power Supply The P13 PowerStation uses DC power to save space and limit the amount of heat generated by the unit. -
Page 43: Resolving Problems
If you cannot solve the problem, or if you encounter a problem that is not documented in this section, contact your Parker equipment supplier or Product Technical Support department at (513) 248-1714. -
Page 44: The Led Power Indicator On The Back Of The Unit
The AUTOEXEC.BAT file and/or CONFIG.SYS file does not execute properly Some startup problems are caused by a corrupted or modified AUTOEXEC.BAT or CONFIG.SYS file. Parker includes backup copies of these files in the \CTC directory on your PowerStation’s CompactFlash Disk and on the PowerStation Start Disk. -
Page 45: Resolving Problems With The Touchscreen
Customer Support Services on page 1-5 of this manual. If all of the above remedies do not work, you may need to replace the touchscreen. Replacement Touchscreen kits are available through Parker. Resolving Problems after Start Up This section describes problems that may occur after startup and details the solutions to these problems. -
Page 46: The Display Appears To Be Blank Or Very Dim
Chapter 4: Maintaining the PowerStation Resolving Problems The display appears to be blank or very dim Check to see if the power switch is in the on position, and the LED Power indicator on the back of the P13 PowerStation is lit. If the P13 PowerStation is not operating properly, restart the unit. -
Page 47: Accessing The Powerstation Utilities
Ordering Replacement Components The P13 PowerStation is designed to be a simple yet reliable unit to maintain. However, if you need to purchase replacement components for the PowerStation, Parker carries a complete line of replacement components. Component Description... -
Page 48: A Powerstation Specifications
OWER TATION PECIFICATIONS This appendix outlines important specifications for the PowerStation. It is a good idea to familiarize yourself with the specifications before operating your unit. • Physical Specifications • Display Specifications • Environmental Specifications • Electrical Specifications • Testing Specifications •... -
Page 49: Physical Specifications
Appendix A : PowerStation Specifications Physical Specifications Physical Specifications Physical specifications include the PowerStation’s CPU, memory specifications, display types, storage capacity, and other physical characteristics. These specifications are shown in Table A-1, below. Table A-1: Physical Specifications Category P1306Q/P1306V Operating ROM-DOS 6.11 System •... -
Page 50: Display Specifications
Appendix A : PowerStation Specifications Display Specifications Display Specifications Display specifications include the type of monitor, size, resolution, and other display properties. These specifications are shown in the following table. Table A-2: Display Specifications Property P1306Q Description P1306V Description Type Active Color TFT Active Color TFT Display... -
Page 51: Environmental Specifications
Appendix A : PowerStation Specifications Environmental Specifications Environmental Specifications Even though the P13 PowerStation is built to withstand harsh environments, limit the PowerStation’s exposure to adverse conditions such as dust, oil, moisture, and corrosive vapors to minimize maintenance and repair costs. Remember that the temperature within a protective enclosure is generally higher than the external temperature. -
Page 52: Electrical Specifications
Appendix A : PowerStation Specifications Electrical Specifications Electrical Specifications The P13 PowerStation’s power supply automatically detects the input voltage level and adjusts accordingly. However, always use reliable sources of power, and isolate all communication cables from AC power lines to enhance noise immunity. If possible, locate the P13 PowerStation away from machinery that produces intense electrical noise (arc welders, etc.). -
Page 53: Testing Specifications
Appendix A : PowerStation Specifications Testing Specifications Testing Specifications The P13 PowerStation conforms to the testing specifications listed below. Table A-5, shows the European community immunity and emission standards for electronic equipment: EN61000-6-2 (2001) and EN55011 (A2:2002). Table A-5: European Community Specifications Test Specification ESD immunity... -
Page 54: Faceplate Chemical Resistance
Appendix A : PowerStation Specifications Faceplate Chemical Resistance Faceplate Chemical Resistance The touchscreen of the P13 PowerStation is resistant to the chemicals listed in Table A-7. Table A-7: Chemical Resistance Chart Touchscreen Chemical Resistance Acetone Sulfuric Acid 10% Motor oil Hydrochloric Acid 10% Gasoline Toluene... -
Page 55: B System Configuration Files
YSTEM ONFIGURATION ILES Appendix B specifies the contents of two configuration files, CONFIG.CTC and AUTOEXEC.CTC. Use this information to modify or correct the files CONFIG.SYS and AUTOEXEC.BAT on the P13 PowerStation. • System Configuration Files P13 PowerStation User Guide B -1... -
Page 56: System Configuration Files
The lines in the following table must appear in the P13 PowerStation’s AUTOEXEC.BAT file for the unit to operate properly. The AUTOEXEC.BAT file that Parker supplies includes these lines and is located in the \CTCTEMP directory on the PowerStation’s Compact Flash card in a file called AUTOEXEC.CTC. - Page 57 Appendix B : System Configuration Files System Configuration Files REM Set up Interact environment variables for MS Shell. REM ************************************************************** SET INTERACT=C:\INTERACT SET INTERACT_FILES=C:\INTERACT\APPFILES SET INTERACT_STARTUP=C:\STARTUP REM ************************************************************** REM Install PowerStation Special Functions REM ************************************************************** LH C:\CTC\BIOSTSR REM ************************************************************** REM Verify running on a PA PowerStation REM ************************************************************** C:\CTC\PACTRL -A -S IF ERRORLEVEL 108 GOTO ERROR...
- Page 58 Appendix B : System Configuration Files System Configuration Files REM ************************************************************* CD \CTC GOTO END :ERROR ECHO. ECHO This CompactFlash is programmed ECHO for a PA PowerStation and is not ECHO compatible with this system. ECHO. ECHO The startup process has been ECHO halted.
