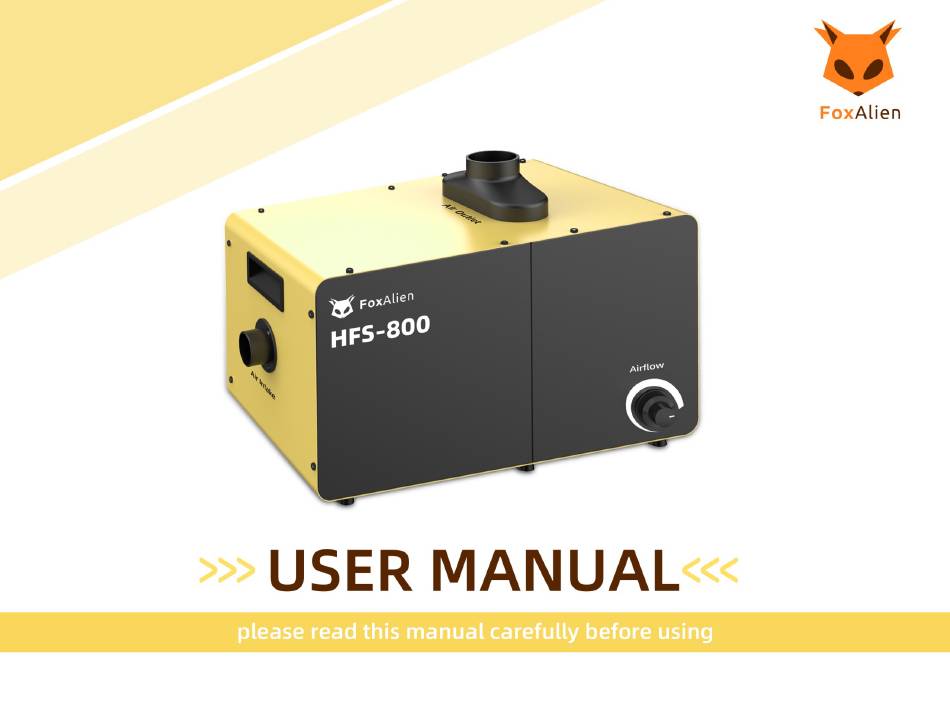

Summary of Contents for FoxAlien HFS-800
-
Page 2: Table Of Contents
Table of Contents Pages Product Specifications Product Introduction III. How To Use IV. Maintenance Dos & DON’Ts VI. Troubleshooting Tips VII. Warranty & Returns... -
Page 3: Product Specifications
Ⅰ. Product Specifications Product Name Desktop Dust Collector Model HFS-800 Rated Voltage 110V/220V Rated Current 110V/10A; 220V/5A Rated Power 800W Working Noise 85dB(A) Net Weight 9.1kg Length of Air Hose 2 meters (6.56 feet) Air Hose Diameter Inner diameter: 27.8mm (1.0”); Outside diameter: 32mm (1.26”) Air Outlet Diameter Inner diameter: 32.3mm (1.27”);... -
Page 4: Product Introduction
Ⅱ. Product Introduction Handle Air outlet Power socket Power Handle of ON/OFF the bin Intake Airflow control Dust collection bag HEPA filter Active carbon filter... - Page 5 Ⅱ. Product Introduction Adjustable Airflow: 0 ~ 800W (max.) NOTE: Continuous long-hour working in maximum power may affect the product service life.
-
Page 6: How To Use
Ⅲ. How To Use 1. Connect the air hose to one of the ports. 2. Connect power, power on the machine. 3. Turn the knob to increase the airflow volume. NOTE: Do not connect air hose to air outlet and air intake at the same time! Blow Indraft... -
Page 7: Maintenance
You can visibly see if the filter needs to be changed, it goes from white to dingy gray. p Please contact FoxAlien Official for filter filaments purchasing. NOTE: PE bags must be removed before installation; NOTE: Always wear a respirator when emptying the dust otherwise the machine cannot work correctly. -
Page 8: Dos & Don'ts
• Do not disassemble the machine without authorization in case of any electric shock. And this will void the warranty. • Disconnect power and unplug power cord before changing filters. • Review the following troubleshooting tips first when problem occurs. • If the problems are not covered, please contact us: aftersale@foxalien.com. -
Page 9: Troubleshooting Tips
Ⅵ. Troubleshooting Tips Problem Possible Causes Possible Solution Machine does not start or a Power supply switched OFF or is at fault. Ensure power supply is switched on; ensure power breaker trips. Wall fuse/circuit breaker is blown/tripped. supply has the correct voltage. Wiring is open/has high resistance. -
Page 10: Warranty & Returns
Ⅶ. Warranty & Returns FoxAlien Official warrants this dust collector machine it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance.
