Summary of Contents for SPACE HD DSD320-FTA

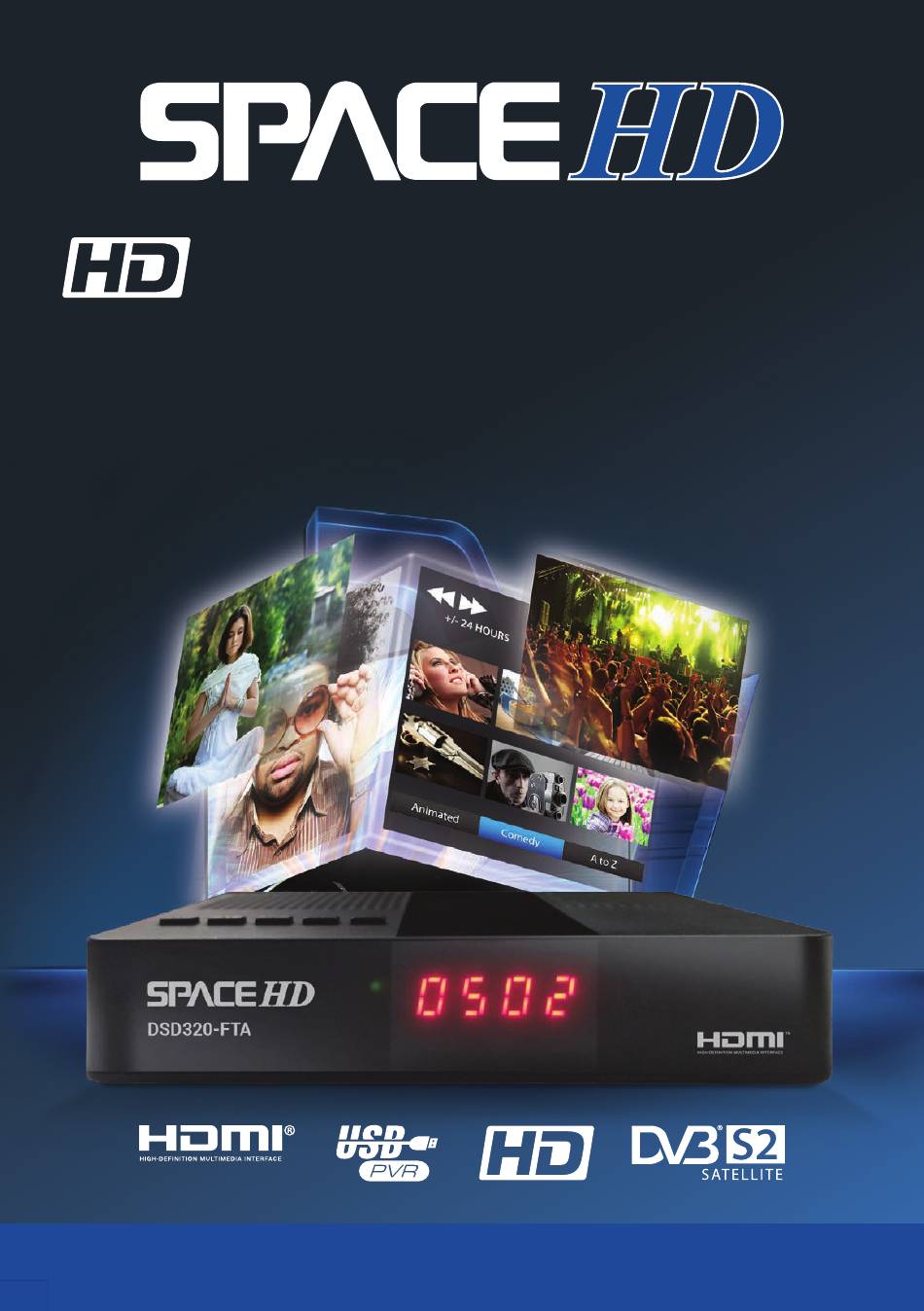

- Page 1 DIGITAL SATEL LIT E RE CE IV E R DSD320-FTA User Manual www.spacetv.co.za Helpline: 0861 40 41 42 •...
-
Page 2: Important Safety Instructions
STB with a moderate temperature surroundings. WARRANTY: • The Space DSD320-FTA, Satellite Receiver is supplied with a 12 month manufacturers guarantee from date of purchase, to be free from any defects and to perform as specified (Please retain invoice as proof of purchase). •... -
Page 3: Quick Start Setup
DSD320-FTA Digital Satellite Receiver User Manual QuICK START SeTuP: • unpack Decoder and all accessories. • Insert supplied Batteries into the Remote Control. • Connect incoming satellite feed to decoder LNB IN connector and secure (Step 1). • Connect HDmI Cable from HDMI port on the Decoder to an available HDmI input on Television set (Step 2). -
Page 4: Front View
DSD320-FTA Digital Satellite Receiver User Manual FRONT VIEW: DSD320-FTA 1. On/Standby: Switch STB to On or Standby. 4. CH-: Navigate channel down. 2. Menu: Switch to main Menu 5. CH+: Navigate channel up. 3. OK: Select or confirm 6. LED Display: Display Runing Station. -
Page 5: Remote Control Unit
DSD320-FTA Digital Satellite Receiver User Manual RemOTe CONTROL uNIT: 1. Email: Jump to email menu. 2. Power: Switches the product to on or standby. 3. FAV: Turns on Favorite Menu. 4. SAT: Selects the Satellite/ Jumps to special time during media play. -
Page 6: Adding Favorite Channels
DSD320-FTA Digital Satellite Receiver User Manual INSTALLATION SeTuP GuIDe: • Please wait for the STB to initialize and follow the on-screen instructions. After the welcome logo, Channel/Satellite scan will appear. • Please wait until the Satellite scan is finished. This may take a few minutes. -
Page 7: Locking Channels
DSD320-FTA Digital Satellite Receiver User Manual LOCKING CHANNeLS: make sure to set Channel Lock to “ON”. From the main Menu screen, use <> keys to select “System”. And then select “Parental Lock” then press <OK>. under Parental Control screen and then select “Channel Lock”, use <> keys to switch ON or OFF channel lock function and then press <eXIT>... -
Page 8: List Of Channels
DSD320-FTA Digital Satellite Receiver User Manual LIST OF CHANNeLS: While watching, press the <OK/List> key and then the “ALL” menu screen will appear displaying all TV or Radio channels available. Use the <> keys to find and select a new channel, then press <OK> to confirm. -
Page 9: Pvr Function
DSD320-FTA Digital Satellite Receiver User Manual PVR FuNCTION: • When a uSB drive is connected to this unit ,while watching TV channels press PVR to start recording video from the channel to USB . Press STOP button to stop recording. -
Page 10: Technical Specifications
DSD320-FTA Digital Satellite Receiver User Manual TeCHNICAL SPeCIFICATIONS: Item Specification Tuner Frequency range 950mHz to 2150mHz Input impedance 75Ohm unbalanced Signal input level -65~-25dBm Symbol rate 2-45Mbps LNB power 13/18V,Max 350mA Demodulation Demodulator QPSK/8PSK 1/2,2/3,3/4,5/6,7/8,8/9,9/10 Connections LNB IN F connector USB 2.0... - Page 11 DSD320-FTA Digital Satellite Receiver User Manual HELPLINE 0861 40 41 42 • www.spacetv.co.za...
-
Page 12: Digital Satel Lit E Re Ce Iv E R
DIGITAL SATEL LIT E RE CE IV E R RandbuRg (Head office) JoHannesbuRg cape town 78 Republic Road Ferndale, 2 Laub Street, Cnr Eloff Street Ext 21 Natal Street, Paarden Eiland Randburg Johannesburg, 2125 New Centre, Johannesburg Cape Town, 7405 Phone: +27 (11) 781 9900/1/2 Phone: +27 (11) 493 5783/4/5 Phone: +27 (21) 462 5103/4/5...
