Introduction ..............................1 Safety Information ............................1 Package Contents & Inspection ........................2 Machine Details ............................3 Technical Label Information ........................3 Fog Liquid ..............................3 Setting and Manual Operation ........................4 Control Settings ............................4 Machine Status ............................5 10. -
Page 3: Introduction
User Manual 1. Introduction Please read the user manual before operating the machine, and place the manual where the user can refer to it at all times. The manual includes how to install and operate the machine under safe conditions and explain all the labels printed on the machine. -
Page 4: Package Contents & Inspection
If any part appears to be damaged or missing during transportation, please contact your local dealer and return in original package for inspection. 3.1 Package Contents 1 x SG-Z1200 Smoke Generator Machine 1 x Power Cable 1 x Hanging Bracket... -
Page 5: Machine Details

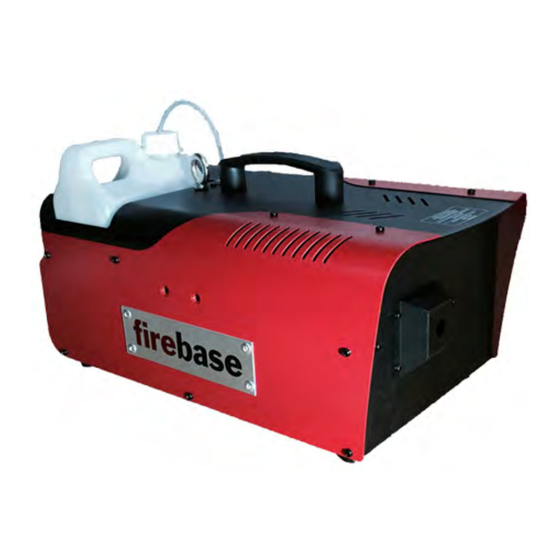

3.2 Optional Accessories Item Code Description Cable Remote Z-50 Wireless Remote 4. Machine Details 01. Fog Nozzle 07. Fluid Indicator 02. Safety Ring 08. Cable Remote Connector 03. Hanging Bracket 09. IEC Connector (Power) 04. 2.5 Liter Fluid Tank 10. Two in One Power & Breaker Switch 05. -
Page 6: Setting And Manual Operation
8. Control Settings SG-Z1200 Smoke Generator can be operated in the following modes. The machine can only accept 1 type of signal at a time. Manual ... -
Page 7: Machine Status
Button Operating Method Action Press To enter setting menu Press Increase value Press Decrease value 1. Press to start fogging according to the set time Press 2. Press again to stop fogging 1. Press to start fogging according to set volume output Press 2. -
Page 8: Dmx Connection
**If LCD control panel display “Warning”, please stop operating and turn off the machine immediately. Contact Froggy's Fog for service. 10. DMX Connection 10.1 DMX Connector Pin Assignment The machine has a XLR 5-Pin for DMX connection. The diagram below indicates pin assignment information. ** There is a protection cap on DMX IN, please remove it with your finger before operation. -
Page 9: Cable Remote (Optional)
** If you encounter any problem, please contact your local Antari dealer for assistant. 13. Z-50 Wireless Remote (Optional) Z-50 Wireless Remote is an optional accessory for SG-Z1200 Smoke Generator No pairing is required, please see instruction below; 1. Plug the receiver to the connector on the back of the machine;... -
Page 10: Technical Specifications
If the breaker (Switch) still jumps off after reset, please contact your local Antari dealer for assistance. Breaker Specification 100-120V = 15A 250V 220-240V = 9A 250V 15. Technical Specifications SG-Z1200 US Model : AC 100-120V, 50/60Hz 10A Input Voltage EU Model : AC 220-240V, 50/60Hz 5.5A 1200W Rated Power 10 minutes (approx.) -
Page 11: Appendix I Grounding Instruction
Appendix I Grounding Instruction This appliance must be grounded. In the event of malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug.
