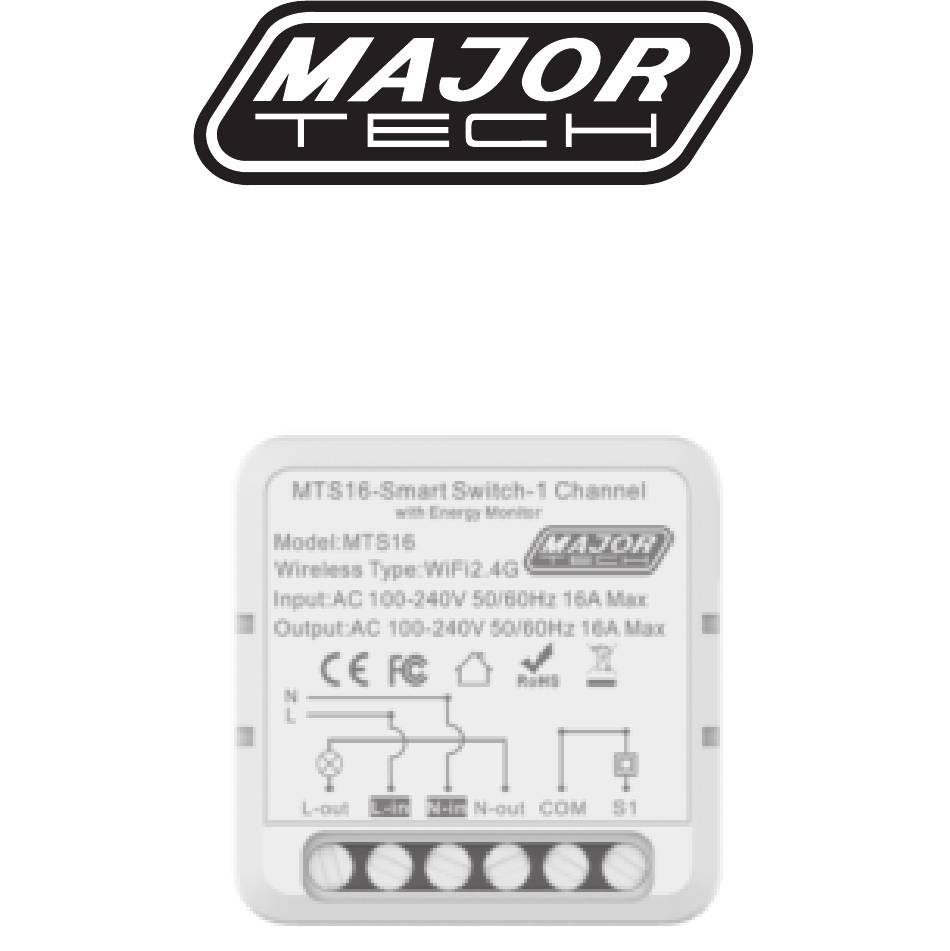

  • Page 1 INSTRUCTION MANUAL MTS16 Smart Switch Module...
  • Page 3 2. DOWNLOAD THE FREE MAJOR TECH HUB APP BY SCANNING THE QR CODE...
  • Page 4 3. OVERVIEW Experience next level Smart Home management with the MTS16 Smart Wi-Fi and Bluetooth Switch Module. This Switch Module is specifically designed for users to be able to add a level of smart control to any standard switch or socket, with Dual Mode Wi-Fi and Bluetooth connectivity, allowing users to utilize the Smart App functionality of “Major Tech Hub”...
  • Page 5: Basic Features

    Blue LED Indicator: This will flash to indicate that the Module is in pairing mode, and is ready to be added to your device list in the “Major Tech Hub” App. This indicator will stop flashing during the adding process once a successful connection has been made.
  • Page 6 MTS16 Control Panel in the “Major Tech Hub” App. This feature protects connected battery powered devices and batteries from overcharging by automatically switching the MTS16 Off when the power draw is less then 3W for a period of 40 minutes. Ÿ Child Lock Feature: Ensure safety, prevent accidental...
  • Page 7 Wi-Fi Network (Our Smart Devices are not compatible with 5GHz Networks to ensure good range and a stable connection). 6. Power on MTS16: When the Switch Module is powered on, press and hold the back of the device for 7...
  • Page 8 7. Add Device: The desired Wi-Fi Network must be available and connected to the device running the “Major Tech Hub” App. In the App tap on the “+” or “Add Device” Icon. 8. The App will automatically display the list of all your activated Smart Devices that are ready and in Pairing Mode.
  • Page 9: Product Dimensions(Mm)

    8. PRODUCT DIMENSIONS(MM)
  • Page 10 9. CONNECTION DIAGRAM A Wiring directly to a load with no physical switch.
  • Page 11 10. CONNECTION DIAGRAM B Wiring directly to a load with a bell press switch for manual control.
