Summary of Contents for Musical Fidelity M3x DAC

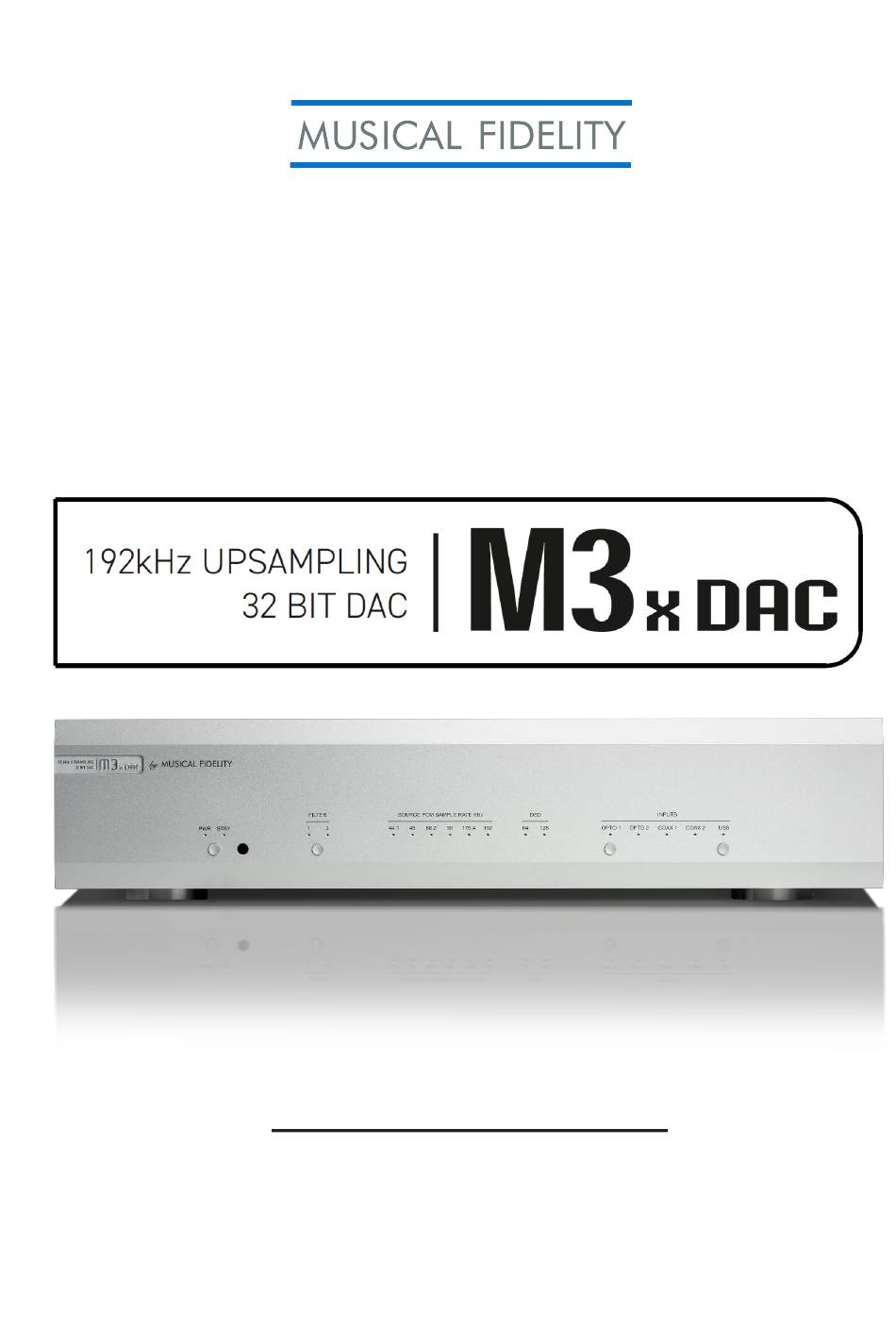

- Page 1 Instruction Manual Manual in different languages available from www.musicalfidelity.com...
-
Page 2: Table Of Contents
Troubleshooting…................9 Technical Specifications ..............10 Item Disposal Information for Europe ..........11 *Manuals in other languages can be found on the Musical Fidelity website. Please navigate to the Downloads section of the M3x DAC product page to access them... -
Page 3: Safety Information
It must not be plugged into a mains outlet. • Only connect the M3x DAC to a mains outlet having the same voltage as marked at the The wires in the mains lead supplied with this back of the unit. -
Page 4: Installation
The COAXIAL inputs: Connect RCA digital source to M3x DAC must be protected from humidity – if the digital input RCA sockets. Use a good quality fully unit is moved from a cold place to a warm room,... -
Page 5: Facilities & Connections
Facilities & Connections PCM Sample rate LED’s Power/Standby/Mute button and LED’s DSD Sample rate LED’s IR Receiver Input selection Filter selection COAXIAL digital inputs 1,2 RCA Analogue output L/R OPTICAL digital inputs 1,2 XLR Balanced output L/R 230/110 V switch USB digital input Mains IEC socket Standard XLR Balanced input/output... -
Page 6: Operation
• Linux kernel 2.6.33 or later (no driver required) • Apple OS X® 10.6.4 or later (no driver required) When the M3x DAC is taken out of sleep mode, it will default to the last input selected. • Windows 10 Creators Edition or later (driver... -
Page 7: Remote Control Handset
Consult the CD player manual for more (single ended) and XLR (balanced). You can information. connect the M3x DAC to your amplifier using As the handset uses an invisible infra-red light whichever is more convenient. beam, the front edge must be pointed directly... -
Page 8: Digital Filters
Digital Filters PCM filters 1. Digital sharp roll-off filter – Cutoff starting at roughly 0.45 x fs (meaning 0.45 times the sample rate) and stopband at 0.54 x fs at -98dB (meaning at half the sample rate this filter is reducing the signal by 96dB). -
Page 9: Troubleshooting
Please check device is listed in device manager (Windows®) or in Sound, audio devices for MAC OS X. Make sure the Musical Fidelity USB audio device is selected as the default OUTPUT device. Check USB port functions with another device. -
Page 10: Technical Specifications
378 mm Musical Fidelity reserves the right to make improvements which may result in specification or feature changes without notice. E&OE. Microsoft and Windows® are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Mac and Mac OS are trademarks of Apple... -
Page 11: Item Disposal Information For Europe
Item Disposal Information for Europe DISPOSAL AFVAL The crossed out wheeled bin label that appears on the Het label op de achterzijde van dit apparaat, een back panel of the product indicates that the product must afvalbak op wielen met een kruis doorgehaald, geeft aan not be disposed of as normal household waste.
