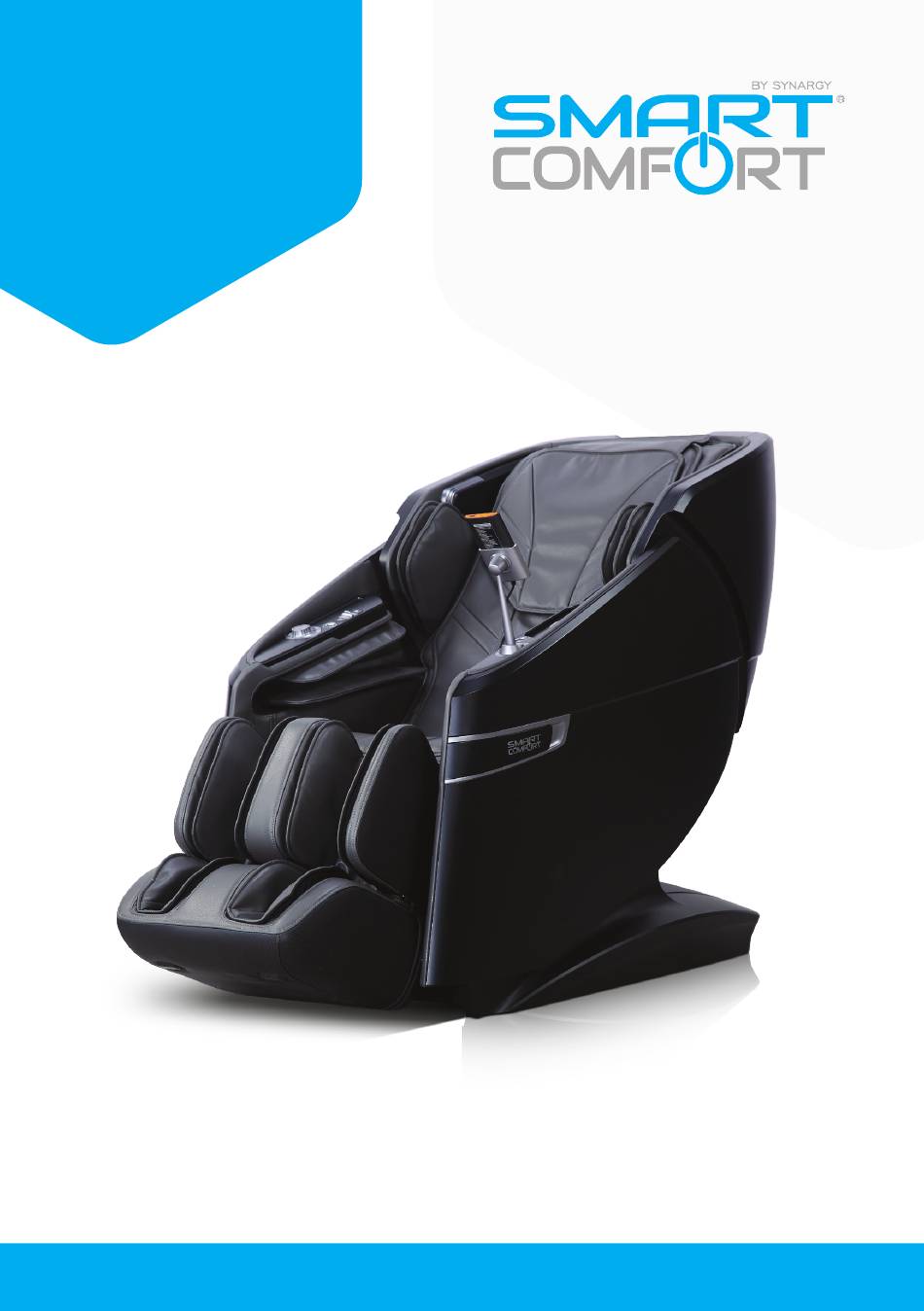

- Page 1 LUNA MASSAGE CHAIR USER GUIDE OPERATING INSTRUCTIONS...
- Page 3 LUNA MASSAGE CHAIR Use this guide to get the most out of your Luna Massage Chair. It is recommended to read through this guide before using the chair.
-
Page 4: Table Of Contents
TABLE OF CONTENTS INSTALLATION & SETUP ............6 QUICK START GUIDE ..............10 BASIC CONTROLS ..............11 AUTOMATIC MODES ..............12 ADJUSTING YOUR MASSAGE ..........13 BACK HEATING ................14 FOOT ROLLERS ................15 POSITION CONTROLS...............16 MANUAL MODE ................17 CHOOSING A MASSAGE ROLLER TECHNIQUE ��������������������������������17 ADJUSTING THE ROLLER DEPTH, SPEED &... - Page 5 MASSAGE CHAIR COMPONENTS 01.Head Cushion 09.Speakers 02.Shoulder Airbags 10.Remote Control 03.USB Outlet 11.Remote Control Bracket 04.Mobile Phone Holder Slot 12.Backrest Cushion 05.Armrest Shortcut Buttons 13.Armrest Airbags 06.Heating Shawl 14.Armrest LED Light 07.Armrests 15.Armrest Cover 08.Legrest 16.Side Panel...
-
Page 6: Installation & Setup
INSTALLATION & SETUP LEGREST INSTALLATION 1. Connect the cable and air hose of the legrest into the sockets at 2. After the connection is completed, open the legrest fixing the front of the steel frame assembly (Figure 1). covers on both sides of the steel frame assembly (Figure 2). 3. - Page 7 REMOTE CONTROL HOLDER INSTALLATION 1. Align the bracket of the hand controller with the mounting base in the left side armrest, then insert it downwards. After placing the bracket in position, lock it with M6 screws. (Figure 1) 2. After locking the bracket, align the bracket cover with the installation socket and clip it in (Figure 2) REMOTE CONTROL CABLE INSTALLATION Find the cable end under the seat cushion, located near your left...
- Page 8 PLACING & MOVING THE CHAIR • Ensure there is at least 17cm between the upright massage chair and any walls or objects behind it to ensure the chair can recline freely. • It is recommended to place the massage chair on a thin rug or mat to reduce chances of floor indentation over time.
- Page 9 CHECK YOUR SURROUNDINGS • Every time the massage chair is used ensure that there are no people, pets or objects around the unit. PRE-MASSAGE CHECKS • Before massaging, make sure that no foreign objects are caught in the legs, feet, etc. •...
-
Page 10: Quick Start Guide
QUICK START GUIDE Remove your shoes and sit into the chair. It is recommended to use the massage chair without wearing jewellery or watches. Press the power button on the top of the remote Select level control, and allow the chair 20-30 seconds to power on. Gentle First, the chair will ask you to select a general massage intensity between gentle, medium and strong. -
Page 11: Basic Controls
BASIC CONTROLS Long press the power button on top of the remote control to power the chair on or off. Once powered on, the remote will display the below Home Screen: The status bar indicates the name of the current mode, and whether or not voice control and Bluetooth audio are enabled The timer indicates the... -
Page 12: Automatic Modes
AUTOMATIC MODES From the Home Screen, press the Auto button at the bottom to open the automatic modes menu. There are four screens of different programs to choose from - swipe left and right on the automatic modes menu to change between screens. Total Relax A fully reclined relaxing massage with background music (can be turned off in settings, page 21) Chinese Massage... -
Page 13: Adjusting Your Massage
ADJUSTING YOUR MASSAGE Select level allows you to Speed/Intensity allows you to Air Massage allows you to adjust the overall intensity adjust the speed and depth toggle which areas have setting that was originally intensity of the back rollers. airbag massage turned on. selected during power on. -
Page 14: Back Heating
BACK HEATING From the Home Screen, press the Total Relax button to open the Back Heat and 30:00 Roller menu. Back heat Roller Press the button labelled Back heat Shoulder to toggle between: off, low, medium and high temperature. Allow up to 3 minutes to reach temperature. -
Page 15: Foot Rollers
FOOT ROLLERS From the Home Screen, press the Total Relax button to open the Back Heat and 30:00 Roller menu. Back heat Roller Press the button labelled Roller Shoulder toggle between: off, low, medium and high speed for the foot rollers. Speed/Intensity Select level Air Massage... -
Page 16: Position Controls
POSITION CONTROLS From the Home Screen, press the Angle button at the bottom to open the angle adjustments menu. Angle Legrest Adjustment Recline Adjustment use the up & down arrows use the up & down arrows to raise or lower the to adjust the backrest legrest angle recline angle... -
Page 17: Manual Mode
MANUAL MODE CHOOSING A MASSAGE ROLLER TECHNIQUE From the Home Screen, press the Manual button to open the manual menu. From the manual menu, a second manual button appears - press this to open a list of massage Manual Depth intensity (upper) techniques and select one from the list below. -
Page 18: Adjusting The Roller Depth, Speed & Width
MANUAL MODE ADJUSTING THE ROLLER DEPTH, SPEED & WIDTH After selecting massage techniques for the rollers you can adjust the depth intensity, roller Manual speed and width of the upper rollers, and the Depth intensity (upper) depth intensity and speed of the lower rollers Massage speed (upper) all from the manual mode menu. -
Page 19: Selecting A Back Roller Area
MANUAL MODE SELECTING A BACK ROLLER AREA From the Home Screen, press the Manual button to open the manual menu. From the manual menu, press the Area button - this will bring up the roller area options. These control Manual Depth intensity (upper) which area(s) of the back the rolling mechanisms Massage speed (upper) -
Page 20: Adjusting The Position Of The Back Rollers
MANUAL MODE ADJUSTING THE POSITION OF THE BACK ROLLERS From the Home Screen, press the Manual button to open the manual menu. From the manual menu, press the Position button - this will bring up the roller area position adjustment. Manual Depth intensity (upper) You can adjust the position of the back rollers to... -
Page 21: System Settings
SYSTEM SETTINGS From the Home Screen, swipe left on the lower menu items to scroll across to Settings button (or tap on the small arrow icons) Manual Angle Memory Settings swipe left The first four options on the settings menu are simple on or off toggles: Settings Bluetooth... -
Page 22: Bluetooth Audio
BLUETOOTH AUDIO To play music or other audio through the Bluetooth speakers, ensure that Bluetooth audio is enabled on the chair (see previous page for details). Then, enter the Bluetooth settings menu on your phone or device. Search for a new device, look for “Smart Comfort 0000” or similar and choose ‘connect’... -
Page 23: Memory Settings
MEMORY SETTINGS From the Home Screen, press the Memory button to open the memory menu. The memory settings allow you to save up to 3 sets of your favourite settings to quickly load Memory up and use again later. While the chair is operating with all settings to your preference, press the Save button on the... -
Page 24: Armrest Control Panels
ARMREST CONTROL PANELS The armrest control panels can be used for controlling massage features & functions without using the main remote control. LEFT SIDE ARMREST BUTTONS Memory buttons can be used to operate the memory settings. Press and hold the I, button to save the current massage settings to that memory slot. -
Page 25: Right Side Armrest Buttons
RIGHT SIDE ARMREST BUTTONS Depth Intensity dial / Power button press this button to switch the chair on and off, and twist the dial to adjust the depth intensity of the upper massage rollers Techniques button press this button to cycle through the manual roller techniques Time button Heat button... -
Page 26: Speaker Buttons
SPEAKER BUTTONS LEFT SIDE SPEAKER BUTTON Voice Control button short press to wake up the voice assistant ready for a command, or long press to turn on/off the voice control functionality. Voice Control on or off status is indicated by a microphone icon at the top right of the remote control screen... -
Page 27: Right Side Speaker Button
RIGHT SIDE SPEAKER BUTTON Background music button short press to switch the background music on or off during certain automatic modes that include music by default (see page 12 for details) -
Page 28: Voice Control
VOICE CONTROL To control the chair via Voice commands, say the phrase “Hi Alice” and wait for the chair to respond “I am here”. You can then give the following voice commands to activate the desired settings: Say this: To do this: “Hi Alice”... - Page 30 Safety Precautions must be observed at all times • Please read all relevant instructions carefully before use� The notes marked here will help you to use the product safely and correctly� The following populations should not use this product: Operating Environments: •...
-
Page 31: Basic Troubleshooting
BASIC TROUBLESHOOTING • Check all assembly steps are complete. Double-check connections are firm and secure. • Turn the chair off at the wall outlet for 10 minutes to reset all electrical components. • If there is no power to the chair, check if your chair has a fuse in the back panel. - Page 32 LUNA MASSAGE CHAIR Keep at least 170mm of clear space between the chair backrest and nearby walls or furniture to ensure there is no contact with any items when chair is fully reclined. Health and Safety Warnings: Do not drop or push anything into any slot of the machine. Please stop immediately and consult your doctor if you feel unwell when using this machine.
