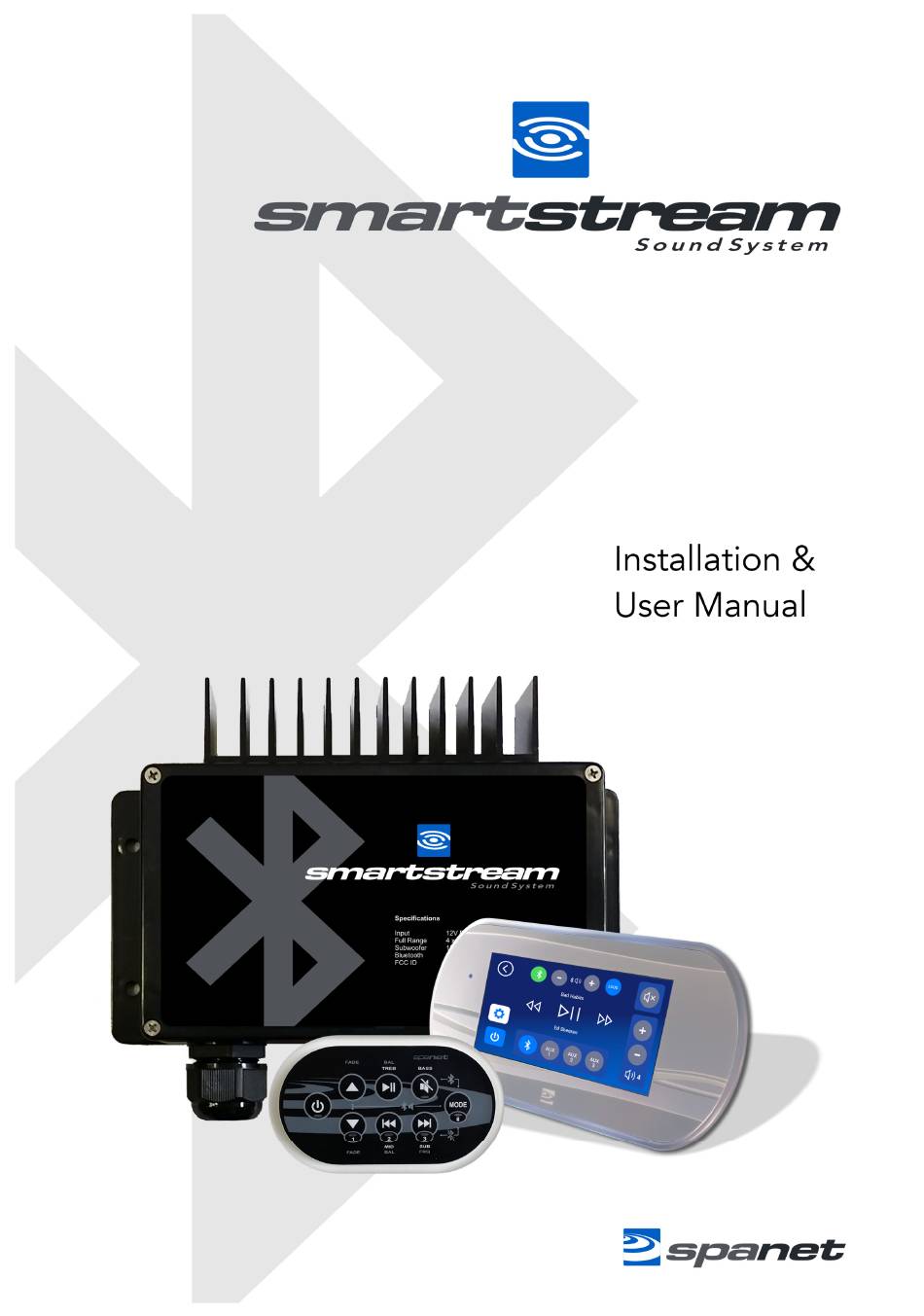

Summary of Contents for SpaNet SmartSTREAM
-
Page 2: Table Of Contents
SV-RT Stereo Keypad ..................5 SmartTouch SVT43-V2 Keypad ................. 6 Enable Stereo Support on SmartTouch SVT43-V2 Keypad ........6 SmartSTREAM Operation with SmartTouch SVT43-V2 Keypad ........8 Power On/Off ....................8 Stereo Interface Button Assignments ..............9 Equalizer Settings page ................... 9 Bluetooth ...................... -
Page 3: Overview
(3) x auxiliary audio input sources are provided to enable audio connection to an external device such as a TV, DVD or iPod Dock. At the heart of the SmartSTREAM is a powerful audio processor chip responsible for audio source switching and allowing complete control over volume, fader, balance, treble, midrange, bass, subwoofer levels and frequency adjustments. -
Page 4: Smartstream Wiring Diagram
SmartSTREAM Wiring Diagram Subwoofer Terminal: 150W Speaker Terminals: 4 x 50W (connection of subwoofer optional) Auxiliary Inputs: Input Power SV-RT Stereo 3 x 3.5mm Audio Terminal: 12V DC Keypad Socket Transformer should be capable SmartTouch SVT43-V2 of 100W (8A) Stereo Interface Cable... -
Page 5: Notes For Mounting Smartstream Module
The SmartStream has two different keypad connection points, one for each style of keypad. Usually only one type of keypad is installed, however the SmartStream can support the use of both the SV-RT Stereo Keypad and the SmartTouch SVT43-V2 Touch Screen if desired. -
Page 6: Smarttouch Svt43-V2 Keypad
TPAD1 socket only Enable Stereo Support on SmartTouch SVT43-V2 Keypad In addition to the cable connection to the SmartStream module, a software setting must be enabled from within the SmartTouch Advanced Menu for the stereo interface to work. Step 1:... - Page 7 Step 2: Scroll to bottom of General Settings Menu Step 3: Select ADV - Enter advanced menu Step 4: Enter pin (14863) then Enter Step 5: Scroll to bottom of Advanced Settings Menu Step 6: Select Stereo - Smart Stream detection V.2301 Page | 7...
-
Page 8: Smartstream Operation With Smarttouch Svt43-V2 Keypad
SmartStream. Note: On initial activation it may take 1-2 minutes for stereo button to appear SmartSTREAM Operation with SmartTouch SVT43-V2 Keypad Power On/Off Press the music icon to access the stereo interface page, then press the power button to turn the stereo on or off. -
Page 9: Stereo Interface Button Assignments
Stereo Interface Button Assignments FUNCTION BUTTON STATUS NOTES Power (on /off) 1 Press to turn on or off Equalizer 2 Equalizer settings (fade/balance/mid/treb/sub) Volume (+) 11 Increases amplifier volume Volume (‐) 12 Decreases amplifier volume Play / Pause 6 Works with Bluetooth source only Track (‐) 3 Works with Bluetooth source only Track (+) 9 Works with Bluetooth source only Loudness ... -
Page 10: Bluetooth
Bluetooth The SmartSTREAM stereo system has principally been designed for streaming audio from any Bluetooth compatible device. By default, when the unit is powered ON it will be in Bluetooth mode and will attempt to connect to the last used Bluetooth device. -
Page 11: Smartstream Operation With Sv-Rt Keypad
SmartSTREAM Operation with SV-RT Keypad Power On/Off Press and hold the Power On/Off button for 4 seconds to turn the power ON or OFF. Touchpad Key Assignments Key Press Operations There are two key press operations as follows. Single key press – the key is pressed and released. The function operates when the key is released. -
Page 12: Hold & Tap Key Functions
Hold & Tap Key Functions FUNCTION HOLD KEY TAP KEY NOTES Bluetooth Connect 8 6 Attempts to reconnect to last connected device Bluetooth Disconnect 8 7 Kill current Bluetooth connection Bluetooth Volume (+) 8 2 Increases Bluetooth module volume Bluetooth Volume (–) 8 3 Decreases Bluetooth module volume Low beep = off, high beep = on Loudness (on/off) 1 6 ... -
Page 13: Bluetooth Indicator Led
If the Bluetooth signal has been lost/dropped by taking the paired device out of range, or if the SmartSTREAM system has been powered on before the last used device was available you can force the Bluetooth module to reconnect by using the Hold &... -
Page 14: Loudness
There is a fourth indicator LED for the Bluetooth source (labelled by the Bluetooth symbol). NOTE: The last used audio source will be remembered when the SmartSTREAM is powered OFF and used when the system is next powered ON... -
Page 15: Legal Information
Spa Net Pty Ltd is under license. Other trademarks and trade names are those of their respective owners. Contains Transmitter Module FCC ID: 2AC7Z-ESP32WROOM32U Spa Net Pty Ltd 1/103 Mulgrave Road MULGRAVE NSW 2756 AUSTRALIA Phone: +61 2 4587 7766 Facsimile: +61 2 4587 8766 Email: service@spanet.com.au Website: www.spanet.com.au V.2301 Page | 15...
