GW1000 Indoor Gateway User Manual
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GW1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Winext GW1000

Summary of Contents for Winext GW1000

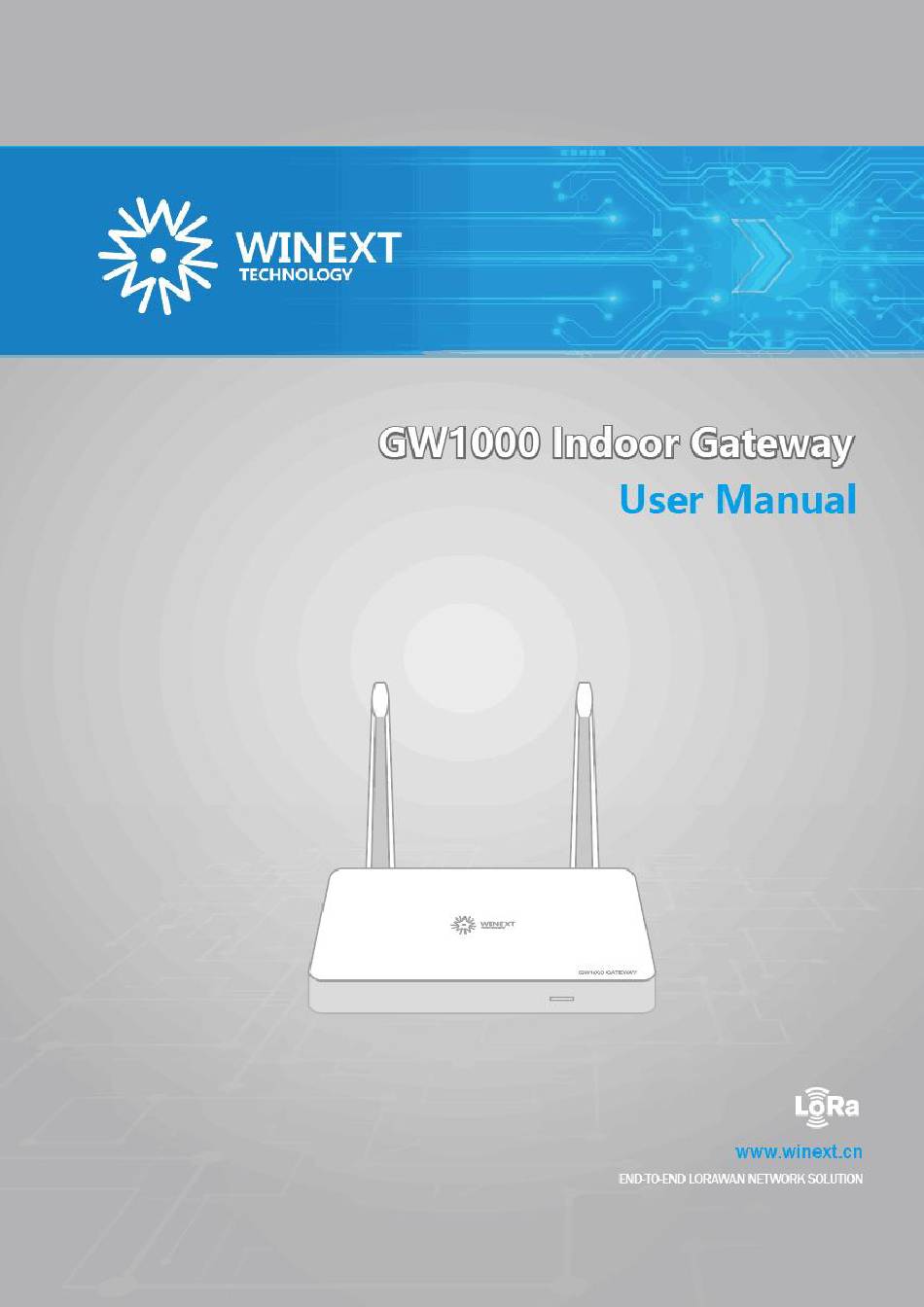

  • Page 1 GW1000 Indoor Gateway User Manual...
  • Page 2 GW1000 Indoor Gateway User Manual Disclaimer 1. Ensure installation is in accordance with applicable specifications. Installation shall only be performed by qualified engineering representatives. 2. Please read carefully and install according to this user manual. We are not responsible for any installation related problems or damage to the operation.
  • Page 3 6. When installing the gateway, it shall be far away from the place with large current and the current often changes, and there shall be no metal objects within 3M around the gateway. 7. The final interpretation of installation is reserved for Winext.

  • Page 4: Table Of Contents

    GW1000 Indoor Gateway User Manual Content 1. Introduction ............................. 4 1.1 Feature ..........................4 1.2 Port ............................4 1.3 Indicator led ..........................5 1.4 Packing kit ..........................6 2. Specifications ..........................7 2.1 Dimension ..........................7 2.2 Hardware parameters ......................7 2.3 Software specification ......................8 3.

  • Page 5: Introduction

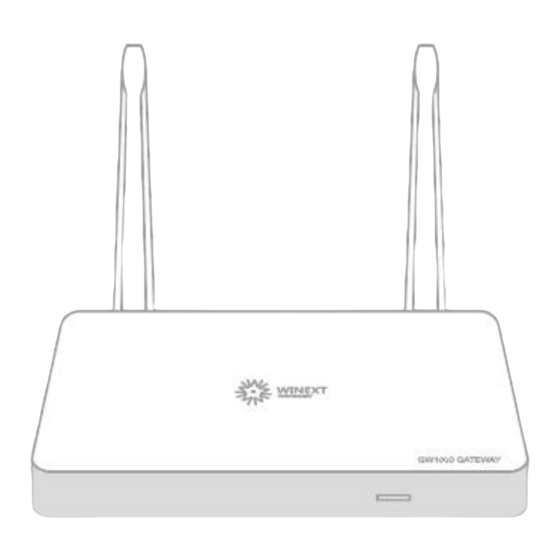

    GW1000 Indoor Gateway User Manual 1. Introduction GW1000 is a light indoor gateway, mainly used on small scale LoRa networking applications as a supplement device for signal blind area. Equipped with SX1308 chip, it complies with LoRaWAN . Receiving data from 8...

  • Page 6: Indicator Led

    GW1000 Indoor Gateway User Manual 1.3 Indicator led...

  • Page 7: Packing Kit

    GW1000 Indoor Gateway User Manual Display Description Green, flash Initializing Green, constant on On normal working Device not work Status led Network fault-cannot connect to the Yellow network server or not return ACK to device Data transmits from Internet, you can...

  • Page 8: Specifications

    GW1000 Indoor Gateway User Manual 2. Specifications 2.1 Dimension Figure: Dimension 180mm*115mm*30mm 2.2 Hardware parameters Description Specifications Master control Qualcomm 9531 master control chip, 128M memory, 16M Flash...

  • Page 9: Software Specification

    GW1000 Indoor Gateway User Manual Description Specifications Power supply DC12V LoRa frequency CN470-510/EU863-870/US902-928/AS923/AU915-928 /KR920-923 LoRa communication 292bps - 5.4kbs, support spread factor SF7-SF12 rate LoRa Tx power 17dBm Maximum power: 20dBm (at the antenna mouth) LoRa Rx sensitivity -141dBm@SF12 LoRa antenna gain...
  • Page 10 GW1000 Indoor Gateway User Manual Description Specification Language and interface Chinese/English, logo available or not 3G/4G dial networking Support QMI-Qualcomm universal dialing Local time synchronization Support NTP client, different time zones can be Upgrade and flash Support upload firmware fresh in WEB and...

  • Page 11: Quick Configure

    GW1000 Indoor Gateway User Manual 3. Quick configure 3.1 Device connection diagram Figure: Connection diagram for Standard version Figure: Connection diagram for LTE version...
  • Page 12 GW1000 Indoor Gateway User Manual Figure: Network connection...

  • Page 13: Frequency Setting

    GW1000 Indoor Gateway User Manual 4. Frequency setting 4.1 EU863-870MHz The default frequency is as below:（8 frequencies, from 867.1MHz to 868.5MHz）： 4.2 AS923MHz It consists of AS920-923MHz and AS923-925MHz, as below: 4.2.1 AS920-923MHz default frequency: 4.2.2 AS923-925MHz default frequency:...

  • Page 14: Us902-928Mhz

    GW1000 Indoor Gateway User Manual 4.3 US902-928MHz Frequency as below: Default: A1B1, the red part: 8 frequencies, from 902.3 MHz to 903.7MHz...

  • Page 15: Au915-928Mhz

    GW1000 Indoor Gateway User Manual 4.4 AU915-928MHz The defaulted is: A1B1, as below:...

  • Page 16: Kr920-923Mhz

    GW1000 Indoor Gateway User Manual 4.5 KR920-923MHz The defaulted is as below: 4.6 RU864-870MHz The defaulted is as below:...

  • Page 17: Cn470-510Mhz

    GW1000 Indoor Gateway User Manual 4.7 CN470-510MHz The defaulted is in red part as below:...

  • Page 18: Configuration

    GW1000 Indoor Gateway User Manual 5. Configuration 5.1 Network Server setting 5.1.1 Login the gateway configuration interface 1) If using mobilephone: Open mobile phone WiFi setting and search the hotspot of the gateway. The hotspot name starts with WIFI-05 and following 6 characters of the gateway ID, such as WIFI-05_e33223.

  • Page 19: Network Server Address Setting

    GW1000 Indoor Gateway User Manual We’ve test the gateway on Winext Network Server (lora.smartkit.io). It only needs to modify the frequency band, and the gateway setting. 5.1.2 Network Server address setting 1. Login the GW1000 gateway WEB configuration interface, select Network→LoRa GW→Configuration and come to the LoRa setting interface.

  • Page 20: Set Wan Setting For Uplink Port And Downlink Port

    GW1000 Indoor Gateway User Manual Figure: Uplink port and downlink port 5.2 Set WAN setting for uplink port and downlink port 5.2.1 Check gateway network connection 1. Check the network connection status. If the LoRaWAN server is deployed on the public network, make sure the gateway connect to the external network via WAN, WiFi (wireless) or 4G.

  • Page 21: Join Network Setting Via Wan Port

    GW1000 Indoor Gateway User Manual As shown in the figure above, the online mode is WiFi (wireless) mode. The display of WAN and 4G has been disabled (disabled means not connected. Connecting external network cable to the WAN port, it will show WAN online. With the 4G SIM card inserted, it will show 4G online).
  • Page 22 GW1000 Indoor Gateway User Manual Figure: WAN Interface-1 b. Select static address and click SWITCH PROTOCOL Figure: WAN Interface-2 a. Fill in IP address, netmask, gateway address...
  • Page 23 GW1000 Indoor Gateway User Manual Figure: General setup d. Set Use gateway hop to 10 in the Advanced Settings interface...

  • Page 24: Connect The Network Configuration Via 4G

    GW1000 Indoor Gateway User Manual Figure: Advanced Settings e. Click SAVE & APPLY Figure: Save and apply 3.Check the network status via gateway WAN port: Status → Overview → MWAN Interfaces Figure: MWAN interfaces 5.2.3 Connect the network configuration via 4G Insert the 4G card into the device 4G card slot (standard card).
  • Page 25 GW1000 Indoor Gateway User Manual Figure: 4G SIM card connection status 4G dialing adopts QMI dialing, and the protocol is set as DHCP. The 4G parameters do not need to be modified. The APN for 4G is empty by default and does not need to be set. (it is known that China Mobile/ China Unicom/ China Telecom, most operators in southeast Asia and most operators in Europe do not need to set up APN);...

  • Page 26: Connect The Network Configuration Via Wifi

    STA and AP share the same channel. If the router the GW1000 was connected through WiFi is turned off or the password is changed, the GW1000 will not be connected to the router and the hotspot will disappear. In this situation, it needs to use the network cable to connect to the LAN port, and change the WiFi Settings of the GW1000.
  • Page 27 GW1000 Indoor Gateway User Manual Figure: Wireless scan 3. Scan out the nearby WiFi network, select the WiFi available, and click JOIN NETWORK. Figure: Join network 4. Input the WiFi password, reset wireless configuration without check, and click SUBMIT. Figure: Submit wireless configuration...
  • Page 28 GW1000 Indoor Gateway User Manual Figure: Save & apply wireless configuration 6. After WiFi connection done, the signal strength can be seen. Figure: Check signal strength 7. At the interface page, check the IP assigned by the gateway...

  • Page 29: Firmware Upgrade Of Gateway

    GW1000 Indoor Gateway User Manual Figure: Check IP 8. At the diagnostics page, use the ping server (lora.smartkit.io) address to confirm that the gateway can connect the Network server. Figure: Check Network Server connection 5.3 Firmware upgrade of gateway Enter System/backup/Flash Firmware/Action 1.
  • Page 30 GW1000 Indoor Gateway User Manual Figure: Flash firmware verify Note: When file is finished uploading, wait and check to make sure the Checksum is as same as that of md5 file(which will be sent to customer together with the bin if it’s the same, please click PROCEED button.

  • Page 31: Faq

    RF data. d. The node should check whether the frequency, rate and I/Q inversion are consistent with those issued by the server. Please send the compressed and packaged log file of the gateway to Winext technicians to query faults if possible.

  • Page 32: Network Connection

    GW1000 Indoor Gateway User Manual 6.2 4G network connection Enter: Network- 4G/LTE For gateway deployment, the network should be stable. If there is no wired network, we can also use 4G network, the device should be deployed at a position with strong 4G signal.
  • Page 33 GW1000 Indoor Gateway User Manual mobile/Unicom/Telecom, most operators in Southeast Asia and most operators in Europe do not need to set up APN). About 4G disconnection protection: The range of CSQ is 0~31, wherein: <15: the gateway believes that 4G signal is not enough to connect to LTE 4G network(the signal is so bad that it will drop continuously and connected to 2G or 3G network), and the service layer will not be forces to dial again when disconnected.
  • Page 34 GW1000 Indoor Gateway User Manual Shenzhen Winext Technology Co., Ltd. Address: 5 Floor, Building B50, Zhongchuang Industrial Park, Liuxian Rd, Taoyuan Street, Nanshan District, Shenzhen 518055, China Tel：(+86) 0755-23990916 Email: jessie@winext.cn Web: www.winext.cn http://winext.en.alibaba.com ------------------------------------------------------------------------------------------------------- This is a manual as an installation, operation and use file. Specifications subject to...
