INSTALLATION INSTRUCTIONS
EURO TRIC A On-Roof Installation

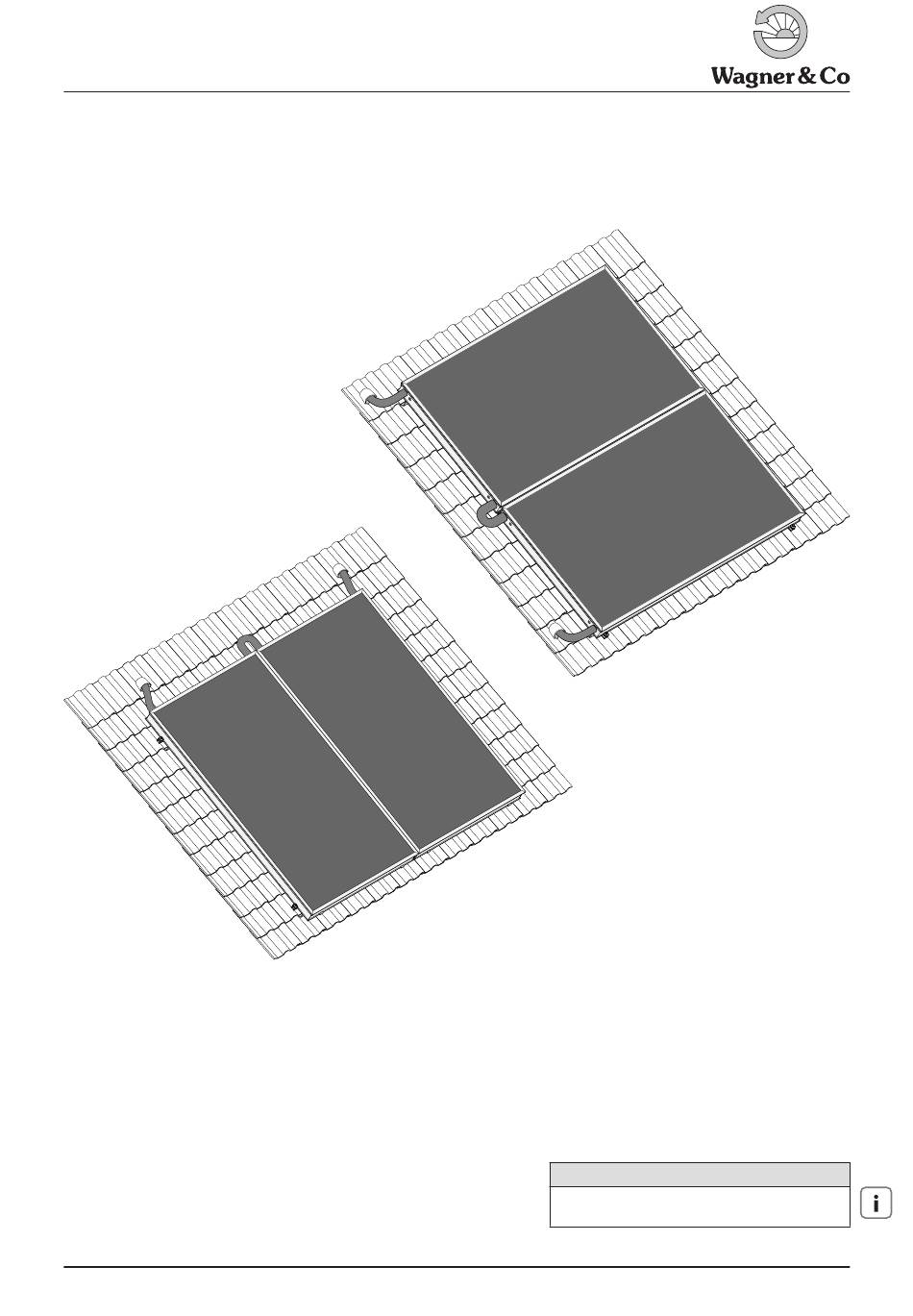

Figure 1 Vertical and horizontal on-roof installation
Content
1. General Safety Notes . . . . . . . . . . . . .
2.
Horizontal Installation . . . . . . . . . . . . .
3.
Vertical Installation . . . . . . . . . . . . . .
4.
Sensor Installation . . . . . . . . . . . . . . 14
5.
Collector Connections . . . . . . . . . . . . . 15
6.
Accessories . . . . . . . . . . . . . . . . . 16
Solar Thermal / Solar Collectors
EN-XXX_EURO-TRIC-A_MA-11216A00_MA-100119-11216A00
2
4
9
Installation instructions valid for these collectors:
EURO L20, EURO C20, EURO C30, EURO C22,
EURO L22, EURO C32
1
Advertisement
Table of Contents
Related Manuals for Wagner & Co EURO TRIC A
Summary of Contents for Wagner & Co EURO TRIC A
-
Page 1: Table Of Contents
INSTALLATION INSTRUCTIONS EURO TRIC A On-Roof Installation Figure 1 Vertical and horizontal on-roof installation Content 1. General Safety Notes ... . . Horizontal Installation ... . . -
Page 2: General Safety Notes
1. General Safety Notes 1.3 Qualification of the Installer 1.1 Symbols Setup, installation and proper commissioning of the solar installation must be carried out by authorized profession- The following symbols are used throughout these instruc- als. Non-compliance renders the warranty void. tions and must be adhered to: 1.4 Intended Use and Application DANGER of possibly serious personal injury... - Page 3 1.5 Pre Installation Notes Risk of burns at collector connections as soon as uncov- ● ered collector is exposed to the sun (figure 3). Danger of open injuries when working with sharp ● edged metal sheets and components! Remove protective plastic caps from connections be- ●...
-
Page 4: Horizontal Installation
2. Horizontal Installation 2.1 Scope of Supply Figure 5 Basic set for on-roof installation (collectors are not included in delivery) Table 1 Figure no. Components: Basic Set for On-Roof Installation Quantity Roof bracket Collector supporting rail 1257 mm (EURO L20, C20, C30) or 1202 mm (EURO L22, C22, C32) incl. 2 collector clamps Collector supporting rail 1223 mm (EURO L20, C20, C30) or 1168 mm (EURO L22, C22, C32) incl. - Page 5 Figure 6 Extension set for on-roof installation (collectors are not included in delivery) Table 2 Figure no. Components: Extension Set for On-Roof Installation Quantity Roof bracket (not included within the set) Collector supporting rail 1223 mm (EURO L20, C20, C30) or 1168 mm (EURO L22, C22, C32) incl. 1 collector clamp Collector supporting rail connector Collector interconnection hose, 250 mm length Gasket ½"...
- Page 6 2.3 Supporting Rail Installation Before commencing roof installation of the rails, prepare rails on the ground by connecting them with the included rail connector. Figure 8 Overview of rail installation (upper image; collector clamps are pre-assembled). 1 supporting rail “1” fixed with two roof brackets and holding two collector clamps 2 supporting rail ”2“ fixed with rail connector to upper rail and one roof bracket; rail “2” holds one collector clamp. Table 3 Section Distance (mm) EURO L20, C20, C30 EURO L22, C22, C32 min. 1600 min. 1500 1000 – 1300 900 –...
- Page 7 2.4 Collector Installation Mount uppermost collector first! 17 Nm Loosen collector clamp slightly, then push tightly against collector and tighten (17 Nm). Badly positioned collectors can lead to insufficient Figure 9 Installation of first (uppermost) collector fixation! EN-XXX_EURO-TRIC-A_MA-11216A00_MA-100119-11216A00...
- Page 8 Loosen collector clamp slightly, then push tightly against collector and tighten screw (17 Nm). Figure 10 Installation of the following collectors Badly positioned collectors can lead to insufficient fixation! EN-XXX_EURO-TRIC-A_MA-11216A00_MA-100119-11216A00...
-
Page 9: Vertical Installation
3. Vertical Installation 3.1 Scope of Supply Figure 11 Basic Set for on-roof installation (collectors are not included in delivery) Table 4 Figure no. Components: Basic Set for On-Roof Installation Quantity Roof brackets Collector supporting rail 1257 mm (EURO L20, C20, C30) or 1202 mm (EURO L22, C22, C32) incl. 2 collector clamps Collector supporting rail 1223 mm (EURO L20, C20, C30) or 1168 mm (EURO L22, C22, C32) incl. - Page 10 Figure 12 Extension Set for on-roof installation (collector is not included in delivery) Table 5 Figure no. Components: Extension Set for On-Roof Installation Amount Roof brackets Collector supporting rail 1223 mm (EURO L20, C20, C30) or 1168 mm (EURO L22, C22, C32) incl. 1 collector clamp Collector interconnection rail connector Collector connecting hose, 250 mm length Gasket ½" Collector holder Not included in set;...
- Page 11 3.3 Supporting Rail Installation Before commencing roof installation of the rails, prepare rails on the ground by connecting them with the included rail connector. 30 Nm 17 Nm Figure 14 Overview of rail installation (upper image; collector clamps are pre-assembled). 1 supporting rail “1” fixed with two roof brackets and holding two collector clamps 2 supporting rail “2” fixed with rail connector to upper rail and one roof bracket; rail “2” holds one collector clamp. Table 6 Section Distance (mm) EURO L20, C20, C30 EURO L22, C22, C32 1600 – 1900 min.
- Page 12 3.4 Collector Installation 17 Nm Loosen collector clamp slightly, then push tightly against collector and tighten (17 Nm). Badly positioned collectors can lead to insufficient Figure 15 Installation of first collector fixation! EN-XXX_EURO-TRIC-A_MA-11216A00_MA-100119-11216A00...
- Page 13 Place the second collectors frame ridge under the collector clamps on the side of the first collector. Slightly loosen on other side, push towards collector and fasten the collector clamps (17 Nm). Wrong or badly positioned collectors can lead to an insufficient fixation! Figure 16 ...
-
Page 14: Sensor Installation
4. Sensor Installation Figure 17 Remove rubber plug from frame. If necessary use screw Figure 18 Pull sensor through rubber plug and insert sensor top into driver to uncover sensor sleeve. sensor sleeve. Screw in rubber plug again. EN-XXX_EURO-TRIC-A_MA-11216A00_MA-100119-11216A00... -
Page 15: Collector Connections
5. Collector Connections Figure 19 Use counter force to support collector interconnection hose Figure 20 Use counter force to support collector interconnection hose when tightening to protect connection and hose against damage. when tightening to protect connection and hose against damage. Figure 21 Connect the collector interconnection hose to the solar cir- Figure 22 2 collectors installed on-roof, horizontal and next to each cuit inside the roof via adapter fitting ½"-18 mm. other can be connected with a special connection set (part no. 190 202 30). EN-XXX_EURO-TRIC-A_MA-11216A00_MA-100119-11216A00... -
Page 16: Accessories
6. Accessories Figure 23 Collector handles for an easy transport Figure 24 Protection of sensor cable against marten bites (part no. (part no. 188 005 02). 192 040 09 for black collectors, part no. 192 040 10 for aluminium coloured collectors). Figure 25 Height adjustable roof brackets P Alu Hv Top for flat Figure 26 ...
