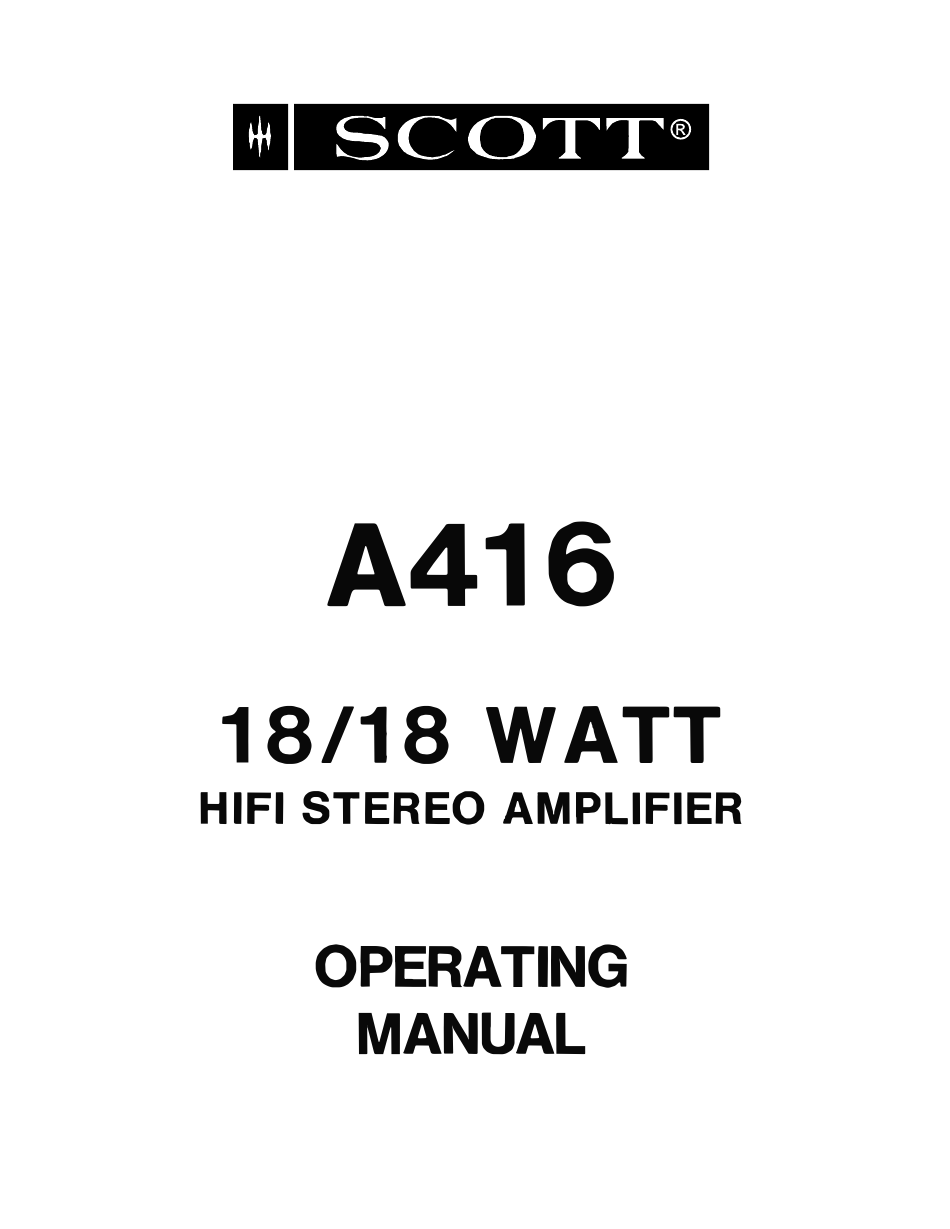

- Page 1 www.hifiengine.com...
- Page 2 www.hifiengine.com...
-
Page 3: Installation And Electrical Connections
We are confident that you and your family will enjoy many years of troublefree listening pleasure from your new SCOTT stereo amplifier. Your new SCOTT amplifier is a sophisticated and flexible unit. - Page 4 - above 12 meters 1.5 mm diameter above 30 meters 2.5 mm diameter. 7. SERIAL NUMBER Every unit manufactured by H.H. SCOTT has a serial number. This number is essential for the 3-year warranty and should be mentioned in any correspondence regarding your set.
- Page 5 TAPE OUT 1 Signal from this jack is fed to tape 1 recorder line input for recording purposes. Tone control, filters and volume settings have no effect on the signal from this output. TAPE IN 1 The output signal coming from tape 1 recorder during playback is fed into this jack. TAPE IN/OUT (DIN) Contact in DIN plug corresponds to DIN 41 5 2 3 configuration for record and playback.
-
Page 6: Input Selector
FRONT PANEL POWER Power in "IN" position activates the amplifier. POWER FUNCTION LIGHT Indicates when the amplifier is in operation. INPUT SELECTOR PHONO Turntable with magnetic cartridge TUNER AUX 1 AUX 2 AUX 1 and AUX 2 input for turntable with crystal cartridge or television sound. - Page 7 Note: Headphones may be used whether main and/or remote switches are in "ON" or "OFF" position. PHONE Allows you to listen to your headphones Headphone impedance should be between 8 and 2000 ohm. Best results between 200 and 400 ohm. LOUD To compensate the response of the human ear at low listening levels.
-
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS Power output, continuous RMS. both channels driven at kHz: ohms ohms Power bandwidth 40 - 20 20 - Frequency response (� 2 - 35 Total harmonic distortion (at rated output) IM distortion S/N ratio Phono Aux. Input sensitivity Phono Microphone Aux. - Page 9 www.hifiengine.com...
- Page 10 CD��Qii:l� U.S.A SCOTT INC. H.H. Il l Powder Mill Road tel. 617-897.8801 Maynard, Mass. 01754 EUROPE SYMA INTERNATIONAL S.A. avenue Louise 419, 1050 Bruxelles (Bel g ium) tel. : 2-649.95.10 Factory : 15A Rue des Moineaux, 1000 Bruxelles tel. 2-513.45.30...
