Summary of Contents for Webster B

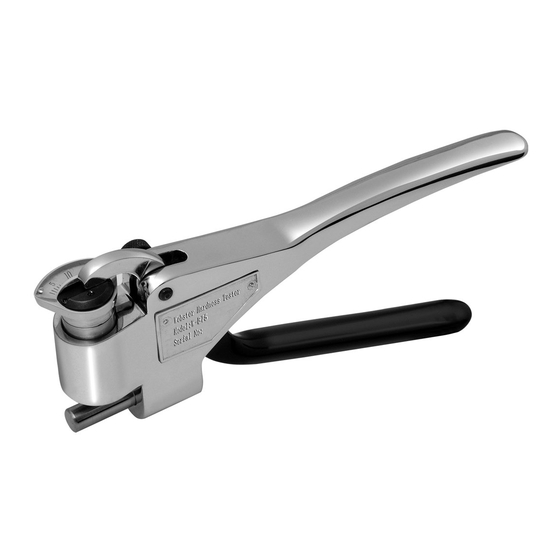

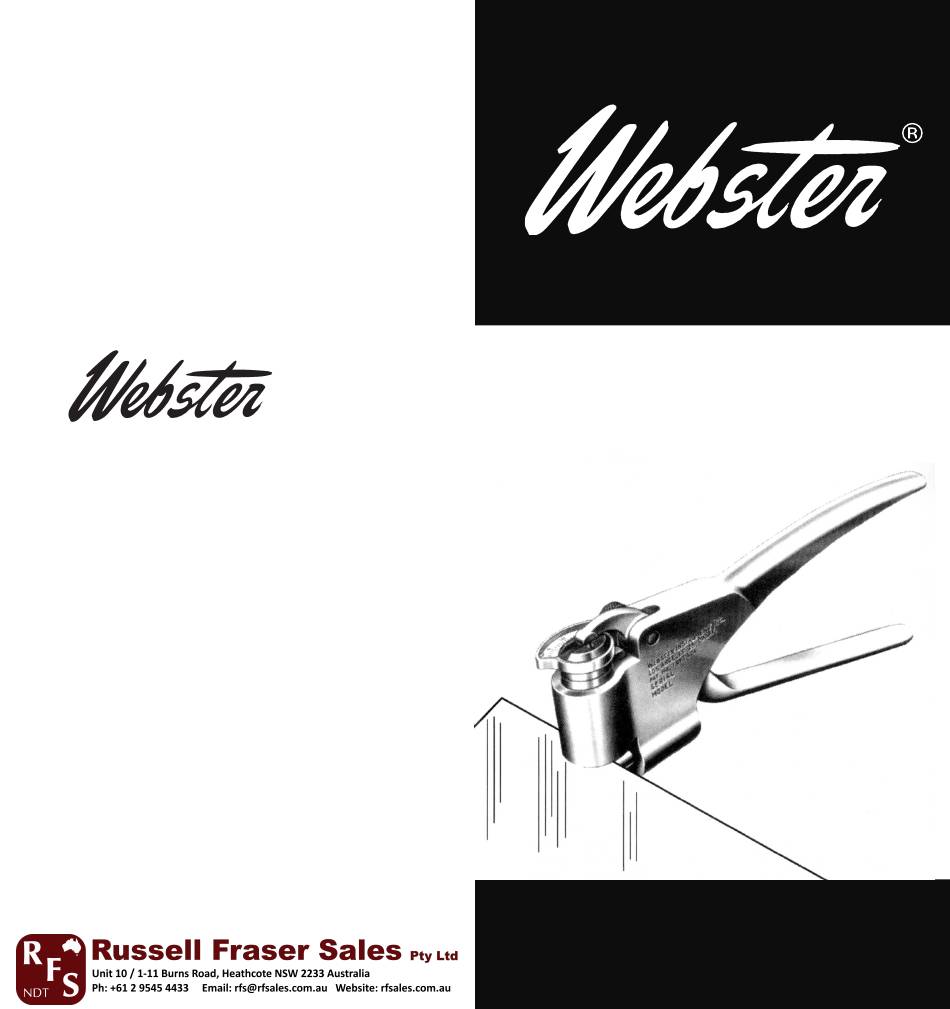

- Page 1 Hardness Tester INSTRUMENT, INC. 11856 Mississippi Avenue Los Angeles, California 90025 Tel (310) 479-6770 Fax (310) 478-1365 Sales@wi-i.com www.webstertesters.com Instruction Manual Model B, B-75 & BB-75...
- Page 2 ® Hardness Testers MODEL B, B-75 & BB-75 FIG. 9 WEBSTER HARDNESS TESTERS ® Parts list for Model B, B-75 and BB-75 Webster Hardness Testers are made in three ® MODEL distinct models. All operate in the same manner B-75...
-
Page 3: Principal Of Operation
All models em- ploy single point penetrators but are different in contour and should never be used inter-changeably. The load springs for Models B and BB-75 are identical. The Model B-75 uses a heavier spring. Return springs for all models are identical. - Page 4 On metal of extreme The B-75 Tester is designed for use on brass and hardness the penetrator will recede into the hous- mild steel and the 20 dial graduations will cover ing until the tip is flush with the housing face.
- Page 5 This zero line is at 20 on the B, adjustment until readings agree. When adjusted B-75 and BB-75 models. After this zero adjustment...
- Page 6 The handle pressure required to operate the Model B Tester is the lightest of any of the three models. This tester is designed for use on aluminum and its alloys but may also be used for...
