Summary of Contents for tams elektronik Power-Block 72-00326

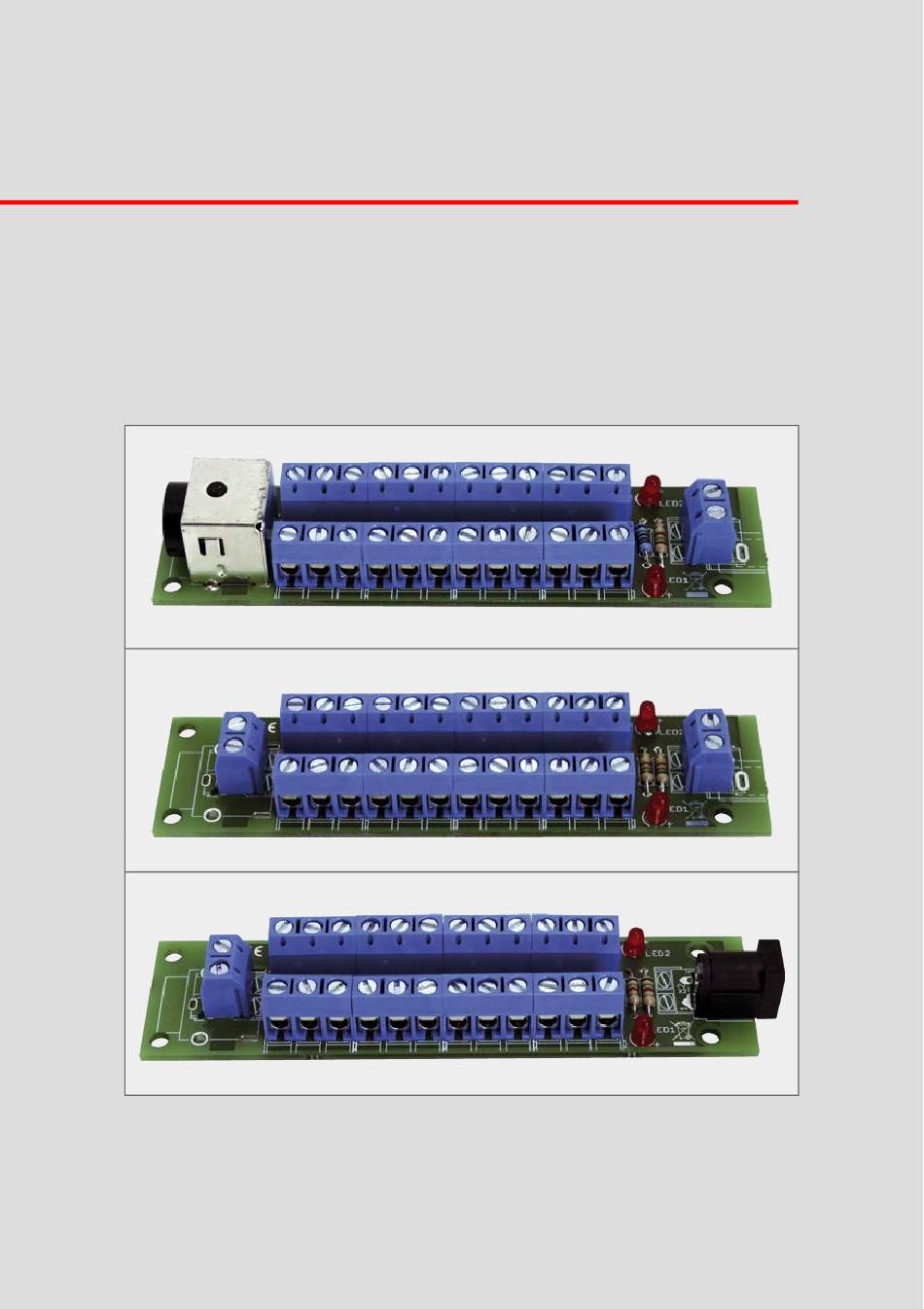

- Page 1 Power-Block Power distribution board Manual DC Version | Item number 72-00326 TB Version | Item numbers 72-00335 | 72-00336 HC Version | Item number 72-00346 tams elektronik n n n...
- Page 2 © Tams Elektronik GmbH All rights reserved, in particular the right of reproduction, distribution and translation. Copies, reproductions and alterations in any form require the written permission of Tams Elektronik GmbH. We reserve the right to make technical changes. Printing the manual The formatting is optimised for double-sided printing.
-
Page 3: Table Of Contents
Power-Block Contents 1. Getting started......................4 1.1. Contents of the package..................4 1.2. Accessories......................4 1.3. Intended use.......................5 1.4. Safety instructions....................5 2. Operation overview.......................6 2.1. Versions.......................6 2.2. Subdivision into two sections.................7 2.3. Indicator LEDs.....................7 2.4. Cascading several circuit boards................8 3. Assembling the kit (TB version only)................9 3.1. -
Page 4: Getting Started
Power-Block tams elektronik 1. Getting started The instructions will help you step by step with the safe and proper assembly of the kit and installation and use of your Power-Block. Before you start to assemble the kit or put the Power-Block into operation, read this manual completely, especially the safety instructions and the section on possible errors and their elimination. -
Page 5: Intended Use
Power-Block 1.3. Intended use The Power-Block is intended for use in model making and in model railway layouts as specified in the instructions. Any other use is not in accordance with the intended use and will result in the loss of the warranty claim. -
Page 6: Operation Overview
Power-Block tams elektronik 2. Operation overview If a large number of electronic components are to be wired together with one connection, conventional cabling quickly becomes confusing and error-prone due to the large number of cables. Both the creation of the connections and the search for faults are therefore very time- consuming. -
Page 7: Subdivision Into Two Sections
Power-Block 2.2. Subdivision into two sections The Power-Block is electrically divided into 2 sections (A and B). The 13 or 14 connections in the two sections are connected to each other. In the TB version, the two sections can be electrically connected to form one section by bridging one of the two 2-pole terminal (blocks) on the narrow sides (-→... -
Page 8: Cascading Several Circuit Boards
Power-Block tams elektronik Both LEDs light up when connected to an AC voltage source. Example: TB version The function of the DC and HC versions is identical when supplied with AC voltage. 2.4. Cascading several circuit boards If the number of connections on one board is insufficient, several power distribution boards can be connected in series (cascaded). -
Page 9: Assembling The Kit (Tb Version Only)
Power-Block 3. Assembling the kit (TB version only) You can skip this section if you have purchased a ready-built module. 3.1. Safety instructions Mechanical hazards Cut wires can have sharp ends and can cause serious injuries. Watch out for sharp edges when you pick up the PCB. -
Page 10: Soldering Properly
Power-Block tams elektronik 3.2. Soldering properly Use a soldering iron with temperature control, which you set to approx. 300 °C. Only use electronic solder with a flux. Never use soldering water or soldering grease when soldering electronic circuits. These contain an acid that destroys components and conductor paths. -
Page 11: Preparation
Power-Block 3.3. Preparation Put the sorted components in front of you on your workbench. The separate electronic components have the following special features you should take into account in assembling: Resistors Resistors reduce current. The value of resistors for smaller power ratings is indicated through colour rings. -
Page 12: Assembly
Power-Block tams elektronik 3.5. Assembly Proceed according to the order given in the list below. First solder the components on the solder side of the PCB and then cut the excess wires with the side cutter. Follow the instructions on soldering in section 3.2. -
Page 13: Connecting The Power-Block
Power-Block 4. Connecting the Power-Block 4.1. Connection of loads to a power supply The connection examples show the common connection of numerous loads to a common power supply. The following can be used as a power supply: ... -
Page 14: Connection Of Loads To Circuits
Power-Block tams elektronik 4.2. Connection of loads to circuits Only the TB version of the Power-Block is suitable for connecting loads to the outputs of circuits. By using the Power-Block the wiring remains clear, even if several loads are connected to one output ... - Page 15 Power-Block Connection example 4 More than 12 loads are connected to the circuit in this example. Areas A and B of the Power- Block are therefore connected to each other at terminal (block) X2, thus cancelling the electrical separation of the two areas.
-
Page 16: Checklist For Troubleshooting And Error Correction
Power-Block tams elektronik 5. Checklist for troubleshooting and error correction Warning: If you notice a strong heat development, immediately disconnect the connection to the supply voltage. Fire hazard! Possible causes: One or more connections are faulty. à Check the connections. - Page 17 Power-Block Carrying out the repair(s) By sending in the product(s), you give us the order to inspect and repair it. We reserve the right to refuse the repair if it is technically impossible or uneconomical. In the event of a warranty or guarantee claim, you will then receive a replacement free of charge.
-
Page 18: Technical Data
Power-Block tams elektronik 6. Technical data Connections TB Version Number of connections: 28 Divided into 2 sections with 14 connections each Design: 28 screw terminals DC Version Number of connections: 27 divided into 2 sections with 13 connections each and one connection for a power supply unit... - Page 19 Power-Block Other features Dimensions of the PCB approx. 105 27 mm Weight of the assembled TB Version: approx. 35 g board DC Version: approx. 40 g HC Version: approx. 35 g Technical data | 19...
-
Page 20: Warranty, Eu Conformity & Weee
Power-Block tams elektronik 7. Warranty, EU conformity & WEEE 7.1. Guarantee bond For this product we issue voluntarily a guarantee of 2 years from the date of purchase by the first customer, but in maximum 3 years after the end of series production. The first customer is the consumer first purchasing the product from us, a dealer or another natural or juristic person reselling or mounting the product on the basis of self-employment. -
Page 21: Eu Declaration Of Conformity
Power-Block 7.2. EU Declaration of Conformity This product fulfils the requirements of the following EU directives and therefore bears the CE marking. 2001/95/EU Product Safety Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS) 2014/30/EU on electromagnetic compatibility (EMC Directive). - Page 22 Power-Block tams elektronik...
- Page 23 Power-Block...
- Page 24 Further Information and Tips: http://www.tams-online.de Warranty and Service: tams elektronik GmbH Fuhrberger Str. 4 30625 Hannover / GERMANY Phone: +49 (0)511 / 55 60 60 Fax: +49 (0)511 / 55 61 61 Email: support@tams-online.de...
