Summary of Contents for modway Mirella EEI-6773

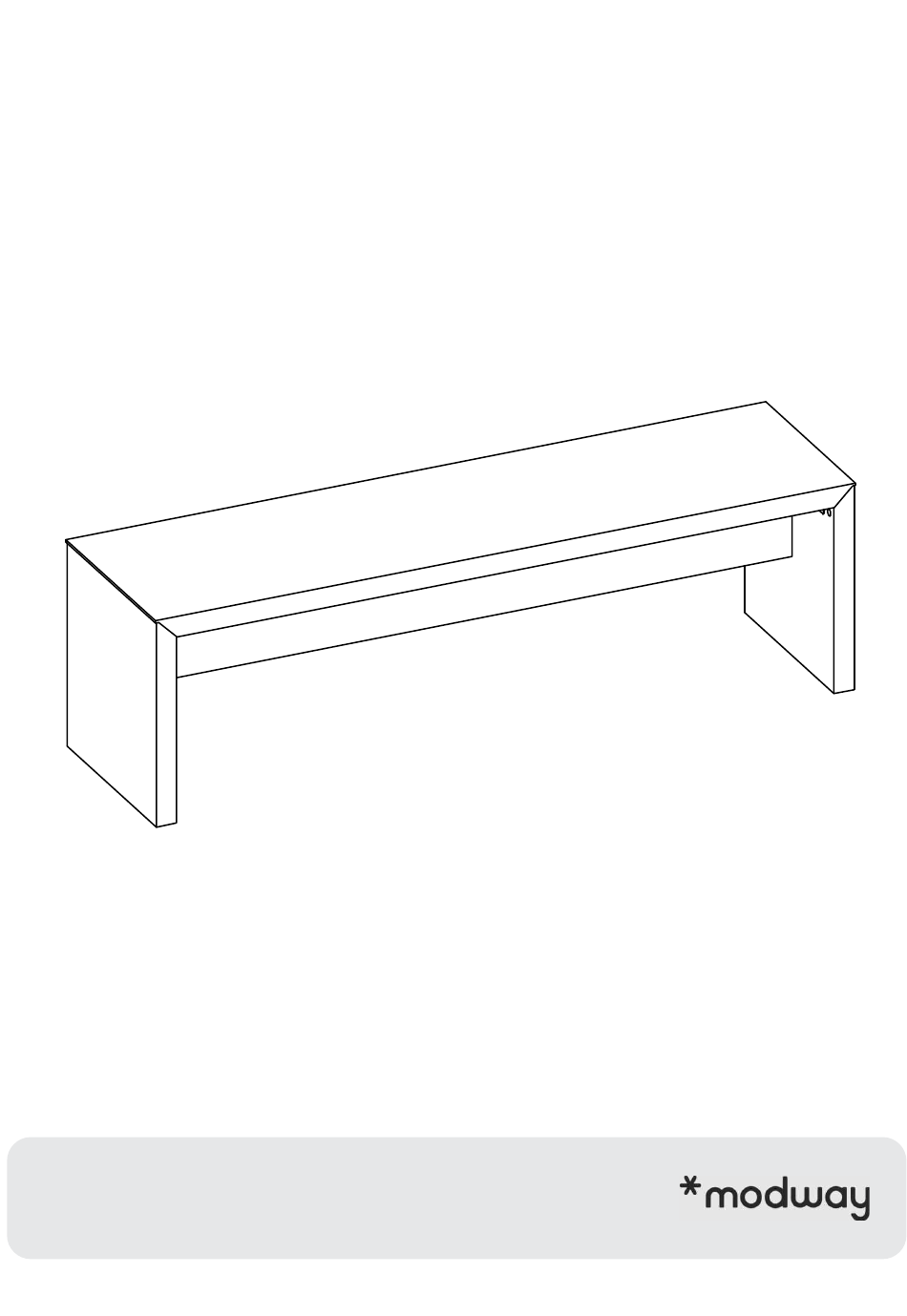

- Page 1 A S S E M B LY I N S T R U C T I O N S EEI−6773 V0.04.12.23 Questions? Contact us! 609.256.9000 • cs@modway.com www.modway.com...
-
Page 2: Let's Get Started
Dowel Ø7.8 x 32 mm Connecting Bolt Angle x4 Corner Plate Screw Ø6 x 19 mm Floor Glide Missing parts or hardware? Need assistance? Contact us before returning your item. We're here to help! 609.256.9000 • cs@modway.com PAGE 2 OF 5... - Page 3 Step 1 C O M P O N E N T S Side Panel Horizontal Panel H A R D WA R E Cambolt Ø6 x 32 mm Dowel Ø7.8 x 32 mm Corner Plate Screw Ø6 x 19 mm Floor Glide TO O L S ( N O T P R O V I D E D ) Step 2...
- Page 4 Step 3 C O M P O N E N T S Top Panel H A R D WA R E Cambolt Ø6 x 32 mm Camlock Ø15 mm 90° Connecting Bolt Angle TO O L S ( N O T P R O V I D E D ) <90°...
- Page 5 Not contract grade. Clean using a non-abrasive cloth and a mild cleaner. CONNECT WITH US! Tag us @modway_furniture and #modway for a chance to be featured. PAGE 5 OF 5...
