Summary of Contents for Vmax Fitness ELiTE-300

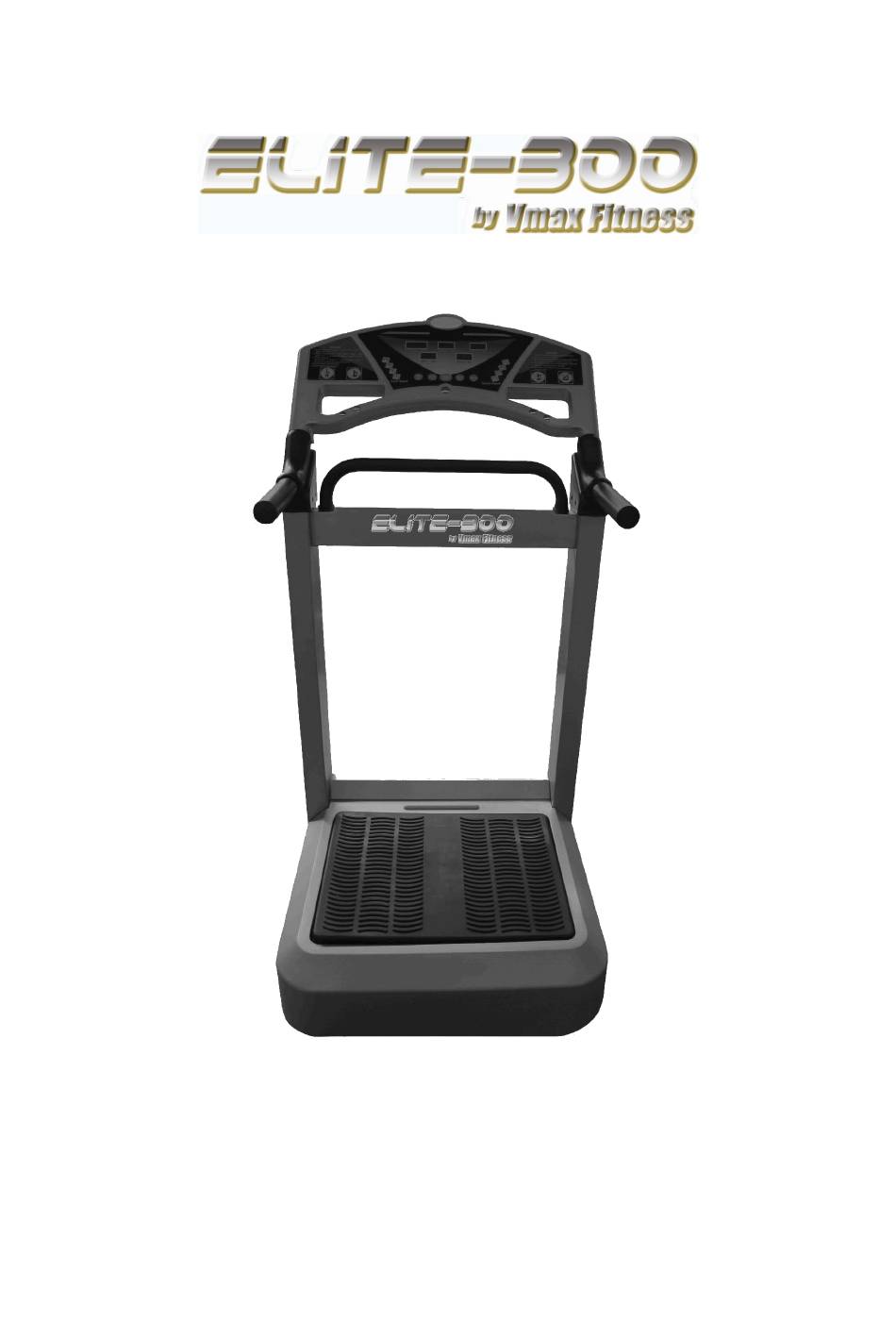

Page 1 USER MANUAL...
Page 2: Table Of Contents
Table of Content WARRANTY INFORMATION........................3 PRODUCT FEATURES..........................4 FEATURES............................4 EFFECTIVENESS ..........................4 STRUCTURAL ILLUSTRATIONS......................5 NAME OF PARTS...........................5 DISPLAY & BUTTON FUNCTIONS.....................6 INSTALLATION ............................7 PARTS..............................7 STEPS ...............................8 OPERATING INSTRUCTIONS .......................10 EXERCISE ILLUSTRATIONS........................11 SAFETY PRECAUTIONS.........................14 HEALTH SYMPTOMS WARNING ......................16 PRODUCT MAINTENANCE ........................17 SPECIFICATIONS.............................18...
Page 3: Warranty Information
Pick-up, delivery, or freight charges involved with repairs beyond the first 30 days of the warranty period. After this time, the owner is responsible for the cost of shipping the machine to Vmax Fitness for repair. Vmax Fitness will cover the cost of shipping the repaired machine back to the owner.
Page 4: Product Features
PRODUCT FEATURES A. FEATURES 30 Speed Levels Get a great workout with 30 speed levels for all levels of training and fitness goals. Ergonomic Construction with Fashionable Streamline Design Unique ergonomic design with original streamline form factor. Easy-to-operate Control Panel with LCD Display Screens Design with an easy-to-operate control panel with LCD display screens that you can manually customized your workout and preset your training goals-show your desired workout time and level of speed.
Page 5: Structural Illustrations
STRUCTURAL ILLUSTRATIONS A. NAME OF PARTS 1. Console 2. Safety Handle-Left 3. Safety Handle-Right 4. Traverse Frame 5. Support Tube-Left 6. Support Tube-Right 7. Vibration Plate 8. Base Cover 9. Adjustable Feet Cushion Moving Wheel...
Page 6: Display & Button Functions
B. DISPLAY & BUTTON FUNCTIONS 1. Vmax Fitness Logo Position 2. Time Indicator Calorie Indicator Distance Indicator Time Indicator Speed Indicator Usage Notes Time Shortcut Button (3 minutes, 5minutes, 8minutes, 10minutes) Speed Shortcut/Mode Selection Button (auto, low, med, high) Time Increase And Decrease Button...
Page 7: Installation
INSTALLATION A. PARTS No Parts Parts Console Washer (M6) Signal Cable A Spring Mattress (M6) Cross recessed pan head tapping screw Screw (M6X20) Plastic Handle Cover Support Tube-Right Signal Cable B Traverse Frame Support Tube-Left Base Cover Washer (M8) Signal Cable C Spring Mattress (M8) Adjustable Feet Cushion Screw (M8X80)
Page 8: Steps
INSTALLATION B. STEPS STEP 1 Connect the signal cable C (17) and the signal cable D (10), then mount the support tube-Left (6) into the pedestal, and lock them with screws (13), spring mattress (12), and washers (11); then also put the support tube-right (14) into the pedestal and tighten it.
Page 9 INSTALLATION STEP 3 Remove the plastic handle cover(4) first, and connect the signal cable A(2) and the cable B(5), then put the console (1) on the support tube-left, then lock the plastic handle cover(4) on the console(1) with Cross recessed pan head tapping screws(3).
Page 10: Operating Instructions
OPERATING INSTRUCTIONS 1. Insert the power plug correctly into the power switch of the machine, switch on power. 2. Choose your desire posture on the machine as shown by the exercise illustrations. 3. Press the start button to begin the programs. Console Instruction Time...
Page 11: Exercise Illustrations
EXERCISE ILLUSTRATIONS Tones the Back, hips and legs. Tones the back and arm muscles Tones the waist, stomach muscles Tones the leg muscles, shoulder and thighs waist muscles and stomach.
Page 12 Tones the leg muscles and waists. Tones the waist, stomach muscles and legs Tones the leg, thigh and hip muscles Tones the shoulder, chest, arms and upper bobby muscles...
Page 13 Tones the hands and shoulders. Tones the shoulders, arms and upper bobby muscles. Tones the thigh, chest, hips and Tones the thighs and buttocks. all bobby muscles.
Page 14: Safety Precautions
SAFETY PRECAUTIONS To maintain the operational standard of the Vmax Elite 300, please note the following: A. BEFORE OPERATING THE VMAX ELITE 300 1. Use the Vmax Elite 300 as described in this user guide. 2. Do not use the machine within 30 minutes before or after meal. 3.
Page 15 SAFETY PRECAUTIONS Please follow the warnings and cautions strictly. This will prevent damage of your machine or any harm to your body caused by any improper use of the machine. ▲ This appliance is not intended for use by persons (including children ) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Page 16: Health Symptoms Warning
Vmax Fitness. □It might lead to fire or electrocution. ----■Please do not disassemble, repair or modify the machine without authorization from Vmax Fitness as this may void your warranty. □Non-compliance will lead to product damage or financial damage due to fire or malfunctioning of the machine.
Page 17: Product Maintenance
PRODUCT MAINTENANCE A. ---------■ STORAGE ■--------- 1. Do not store the Vmax Elite 300 ---■ Near heat or open flame. ---■ Under direct sunlight for a long period of time. ---■ In harmful gas or dust, especially humidity. 2. Keep the Vmax Elite 300 ---■...
Page 18: Specifications
SPECIFICATIONS Product Name: Vmax Elite 300 Electricity Input--------------------100V ~ 120V Frequency ------------------------- 50Hz ~ 60Hz Speed Range --------------------- 30 levels Max Power--------------------------2HP Motor--------------------------------1000W Amplitude---------------------------0-10mm Preset programs-------------------3 preset programs Display-------------------------------Time、Speed、Exercise Amount、Calorie Indicator、Distance Dimensions: ------------------------730mm (L) X 940mm(W) X 1470mm (H) Load weight ------------------------200KGS Net weight---------------------------58KGS Gross weight------------------------ 64KGS www.VmaxFitness.com...
