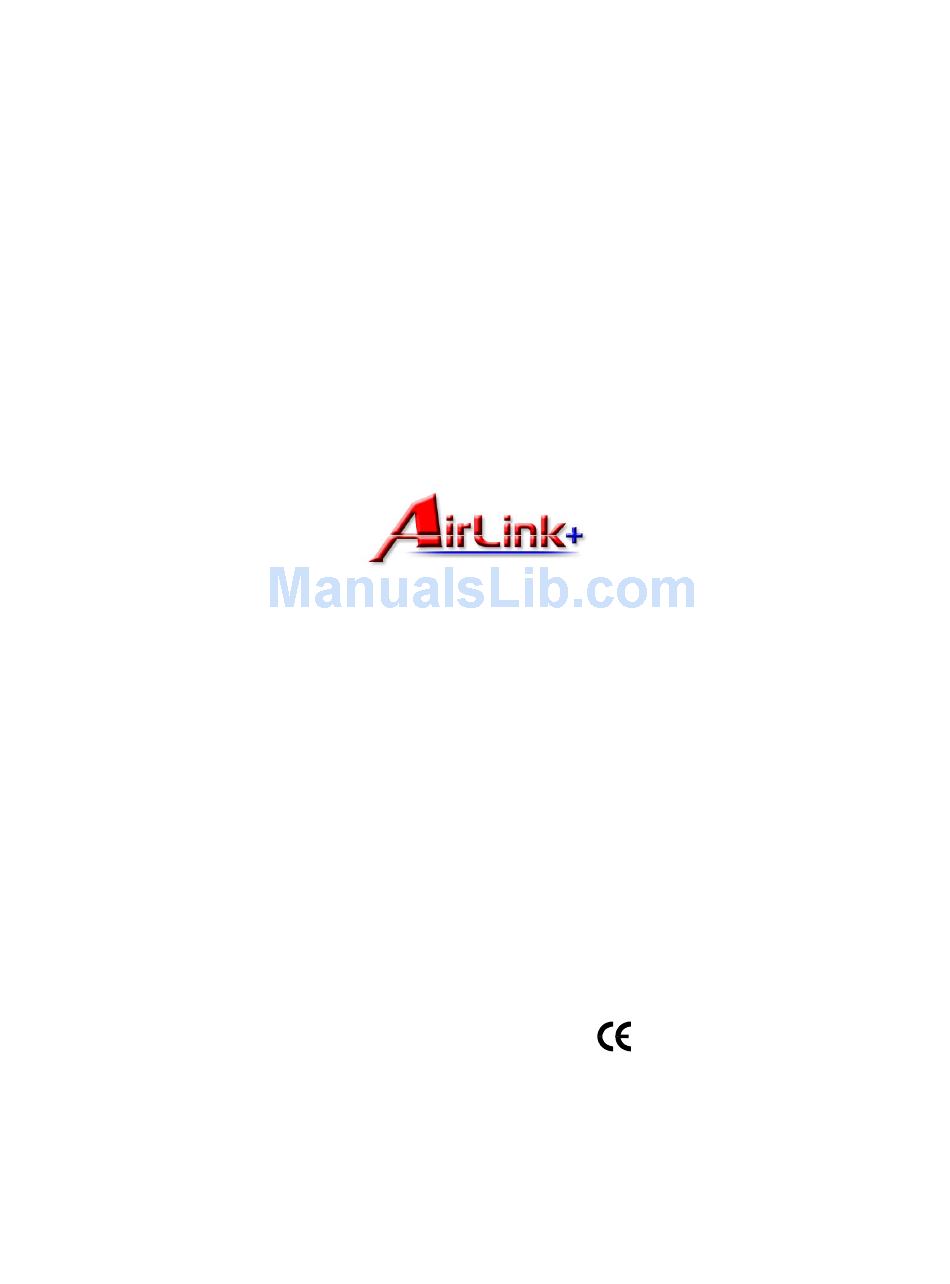

- Page 1 10/100Mbps PCI Fast Ethernet Adapter User’s Manual...
-
Page 2: Fcc Compliance Statement
This equipment has been tested and found to comply with the limits of a Class B computing devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This... - Page 3 20Mbps/200Mbps. Real hassle free installation is achieved by conforming to PCI bus. Just plug in the card and all setup is done automatically. No more software to run ! Furthermore, this adapter support the Wake On LAN (WOL) feature allows users to configure network adapters that are capable of “listening to”...
- Page 4 Supports early interrupt on transmit to increase performance. Supports ODI driver for NetWare 3.x/4.x/5.x; NDIS driverforLANManager,Windows95/98/NT/2000/Me/XP, Linux, and Packet Driver for TCP/IP software. Provides diagnostic software and one LEDs to indicate LNK/ACT selection. Supports smart remote Boot ROM( depends on Models )
- Page 5 Standard : IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX Transmission Rate : 10Mbps or 20Mbps 100Mbps or 200Mbps Hardware Required : IBM compatible PC with available PCI slot ( PCI 2.1 or PCI 2.2 ) IRQ Line : Assigned by system...
- Page 6 Installation (1) Hardware Installation To insert the network adapter into your PC, follow the steps bellow : 1. Turn off the computer and remove its cover. 2. Insert the adapter into a PCI slot. 3. Secure this adapter to the rear of the computer chassis and put back the computer cover.
- Page 7 3. Attach the 3-pin auxiliary power cable to the connector on the PC motherboard. (4) Driver Installation Use the drivers supplied by the diskette included in this product. For detail description, please refer to readme.doc or readme.exe in the diskette provides by...
- Page 8 The adapter provides one LEDs to indicate network status. Lnk/Act A green LED indicates if the NIC has been LINK ok or not. When the light is OFF, it indicates that the UTP port has not been connected or LINK not ok. When the light is ON, it indicates that the UTP port LINK ok.
- Page 9 2. Boot up the PC, run setup program to configure the adapter as “Active Low”(Default setting is “Active High”) 3. Turn off the PC and reconnect the 3-pin cable to the 4. Boot up the PC again. The PC does not boot up when a Magic Packet or Wake Up Frame is sent.
