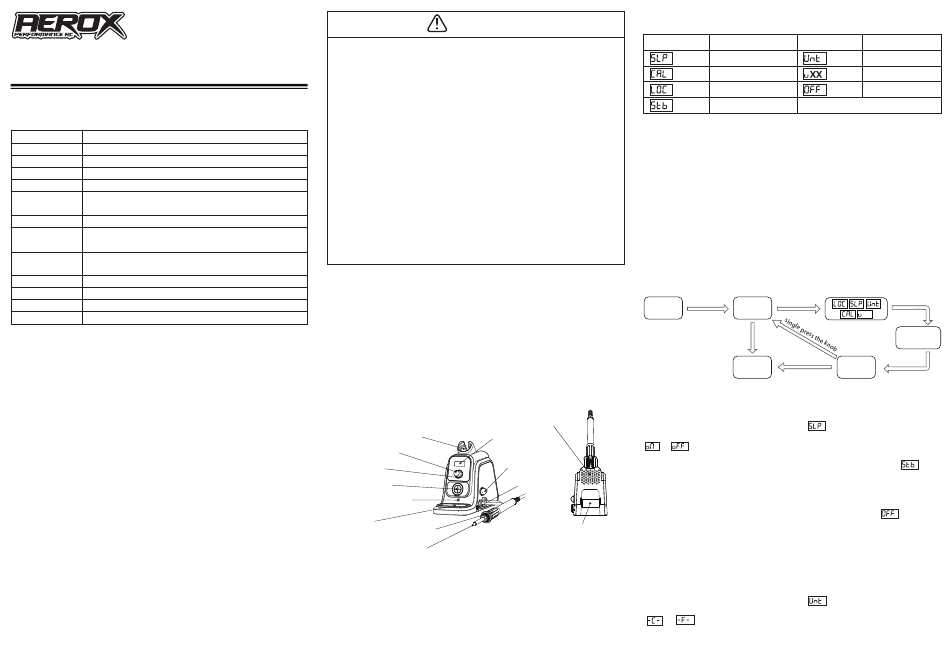

Aerox 150HS User Manual

AEROX 150HS - Soldering Station
User manual
SPECIFICATIONS
Model 150HS
Power 150W
Input voltage 120VAC/230VAC (50-60Hz)
Temp. range 100-500℃(212-932℉)
Temp. stability ±2℃(±4℉) {>200℃(400℉)}
Temp.
±50℃(±90℉)
compensation
Temp. display digital
Tip to ground
<0.1Ω
impedance
Tip to ground
<2mV
voltage
Heater T60 integrated PTC ceramic heater
Cable length Power cord: 90cm
main unit: 80 x 184 x 142mm
Dimensions
Net weight 516g
Note:
Specifications and appearance are subject to change without prior notice.
PACKING LIST
Main unit x 1 Handle x 1 Sponge x 1 Brass Wool x 1
ATTENTION
● This product falls under electrical appliances and must be used in
compliance with safety precautions to prevent accidents.
● This manual provides essential information on accident prevention and
product usage methods. Please read this manual carefully. Use this product
safely. After reading the manual, store it for future reference.
● The product undergoes testing before shipment, so the soldering tip may
contain a small amount of tin and the S.S tube might have a slight yellowish
tint, which is a normal occurrence.
● Once powered on, the soldering tip can reach a high temperature of 230℃
within a short period. Please use it correctly and be cautious to avoid burns.
● We require users to have some basic knowledge of electrical operations
before using this product. For underage users, it is mandatory to use this
product under the guidance of professionals or guardians.
1
When power is on, the temperature of the soldering iron tip might reach
200-500℃ (392 -932℉). Misuse may cause burns and fire, please strictly
observe the following precautions:
● Do not use it around combustibles
● This appliance is not intended for use by persons(including children)
with reduced physical sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
● Children should be supervised to ensure that they do not play with the
appliance
● Do not use or operate this product with wet hands or in damp
environments to prevent electric shock.
● Do not modify this product or its accessories without authorization.
● When replacing parts or soldering tips, ensure the power is turned off
and wait for the device to cool down completely before proceeding.
● Use original manufacturer parts when replacing components of the
product.
● Always turn off the iron when the product is not in use or temporarily
not needed.
● If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard.
WARRANTY TERMS
Handle cable: 1.2m
handle: 24.5 x 224mm
● We offer a six month limited warranty for this machine (excluding
consumables such as soldering tips and heating elements).
● The warranty covers materials and manufacturing defects from factory
shipment collection date and includes both replacement parts and labour.
● The warranty becomes void if the damage is caused by improper use or if
the equipment has been altered or repaired by unauthorized personnel.
User Manual x 1
PRODUCT APPEARANCE
Set/Select Knob/Button
Blue Halo Light
Brass Wool Cleaner
Solder Dispensing Hole
Sponge
Set/Select Knob/Button：Used for temp and parameter settings.
Blue Halo Light：Displays the Soldering Station status.
Brass Wool Cleaner：Cleans the soldering tip.
Sponge：Cleans the soldering tip.
Bracket Fixing：Use to install option support arms.
Solder Reel：Used for solder spool.
WARNING
Ventilation Holes
LED Display
Handle Stand
ON/OFF Switch
Bracket Fixing
Solder Reel
Handle
Integrated Tip
Model 150HS
2
SCREEN DISPLAY EXPLANATION
Screen display Function Screen display
auto sleep
temp. calibration
temp. locking
auto standby
OPERATION
Power On: Plug in the power cord, turn on the ON/OFF switch, and the Blue
Halo lights up.
*Set the temperature to 350℃. It takes approximately 14 seconds for the
150HS to heat up from room temperature to the set temperature.
Heating: After powering on, rotate the knob to set the appropriate
temperature. Power Off: Turn off the ON/OFF button, and the Blue Halo Light
turns off.
FUNCTIONS SETTING
long press the
rotate left or right
normal function
knob
operating
menu
mode
selection
long press
the knob
long press the knob
setting save
exit setting
Auto standby/Auto sleep Function
Long press the knob button to enter the function settings menu. Rotate left
or right to switch until the screen displays
Short press the knob to enter function selection. Rotate left or right to select
or .
*Once enabling the auto standby/auto sleep mode, the machine will enter
standby status after 3 minutes of inactivity, and the display shows
The heating temperature is reduced to set temperature (250℃ maximum).
If the machine remains in standby mode for another 10 minutes, it enters
sleep mode and turns off the heating. During standby period, if the machine
detects any movement, or if the adjustment knob is short-pressed, it will
resume to the working mode. Short-press the knob button in
return to the working mode.
Temperature unit switch
Long press the knob button to enter the function settings menu. Rotate left
or right to switch until the screen displays
Short press the knob to enter function selection. Rotate left or right to select
or .
3
Function
temp. unit
software version
power off
single press the
knob
xx
enter selection
mode
function
menu
selection
rotate left or right
.
.
status to
.
