Summary of Contents for bigboi XTRACTR

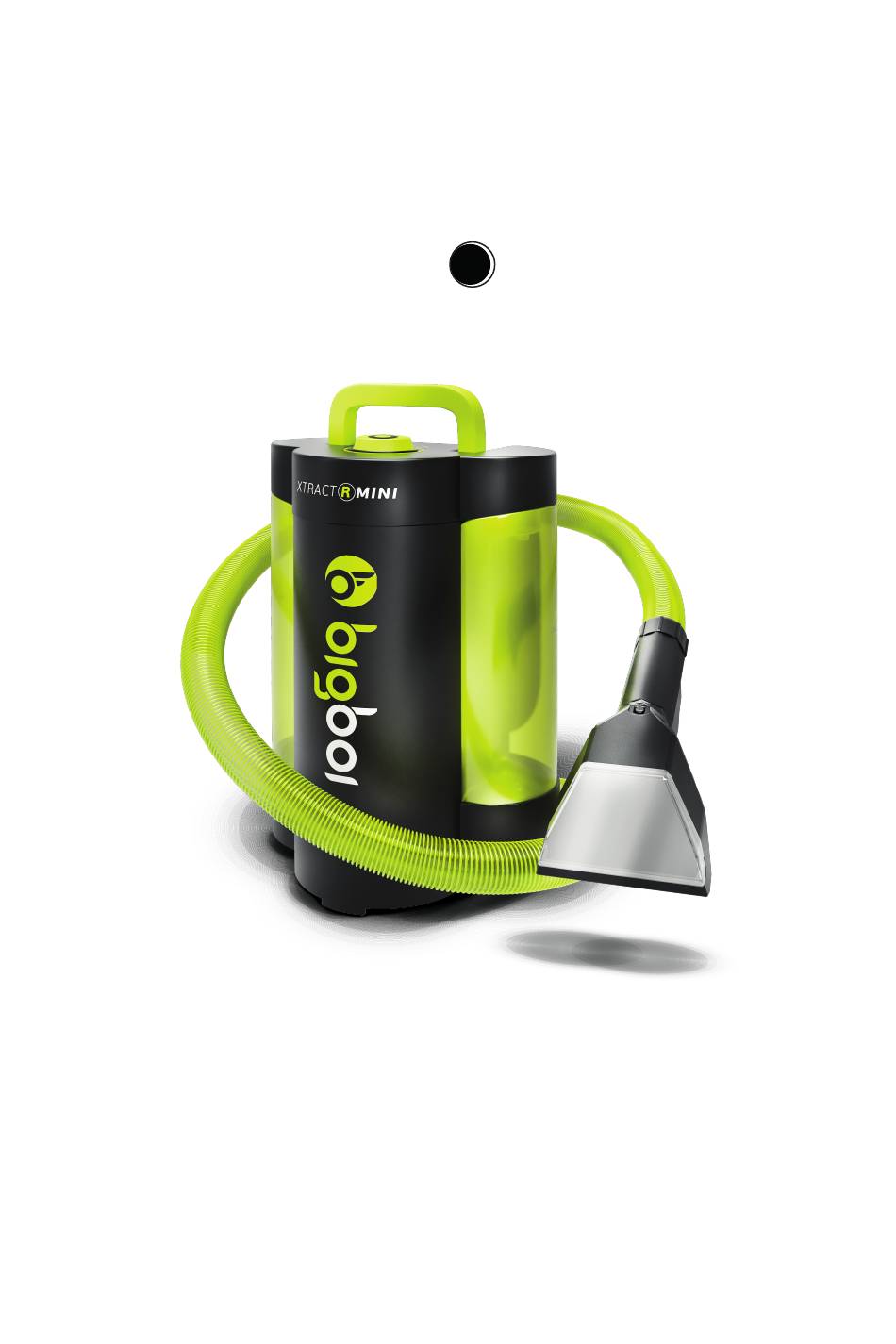

- Page 1 BIGBOI XTRACTR INSTRUC TION MANUAL MINI XTRACT XTRACTR MINI Please read the operating instructions carefully before use.
- Page 3 INTRODUCTION Thank you for purchasing the bigboi XTRACTR MINI. Please read the following instructions carefully to help to ensure your personal safety and the correct assembly, use and maintenance of this equipment. Please ensure that you have read and understand the information contained in the manual before attempting to use the equipment.
- Page 4 Name Amount 1 Handle 2 Switch 3 Cover 4 Shell Cable management system 6 Dirty water Tank 7 Clean water/Solution tank 8 Shell 9 Duct outlet 10 Motor cover 11 Shock absorber 12 Motor 13 Shock absorber 14 Base 15 Elbow connector 16 Hose connector 17 Hose 18 Stain head...
-
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING YOUR PRODUCT. When using an electrical product, basic precautions should be observed, including the following: WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY: To unplug, grasp the plug, not the cable. ●... -
Page 6: What's In The Box
Damage to internal components may result. Plastic tanks are not dishwasher safe. Do not put tanks in dishwasher. ● WHAT’S IN THE BOX? Bigboi XTRACTR MINI 4 inch extraction tool TOOLS MACHINE FILLING THE CLEAN WATER TANK 2. - Page 7 WARNING TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK DUE TO INTERNAL COMPONENT DAMAGE, USE ONLY Bigboi XTRACTR CLEAN formula INTENDED FOR USE WITH THIS MACHINE. GETTING READY TO CLEAN BEFORE YOU START CLEANING 1.
-
Page 8: Using The Tools
USING THE TOOLS 4 INCH SPRAYING TOOL 1. Point the tool approximately 2. Release the spray nozzle 1 inch above the spot or stain trigger and gently scrub the stain. and press the spray trigger. Repeat the process if needed. AFTER-CLEANING CARE 1. -
Page 9: Storing Your Machine
6. Place back the tank by 4. Rinse with water until all 5. Return the float stack to lining up the bottom of the debris is removed the Dirty Water Tank. Ensure tank as in image. Push the top and let air dry. all pieces are assembled, of the tank into place until you as shown. -
Page 10: Troubleshooting
Excess solution in Flex Hose. Liſt tool and point upwards to allow water in hose to flow into the Dirty Water Tank. Incorrect cleaning formula. Use BIGBOI® Portable Machine formulas only. Dirty Water Tank is Remove and reseat tank. improperly seated onto base. -
Page 11: Warranty
WARRANTY This product is under warranty to the original retail consumer against defects in material and workmanship for a period of 1 (ONE) year on machine, 30 days on gun and hose assembly, from the date of retail purchase and is not transferable. -
Page 12: Safety First
For more information please visit or contact us on hello@bigboi.com ANOTHER PRODUCT FROM BIGBOI INTERNATIONAL...
