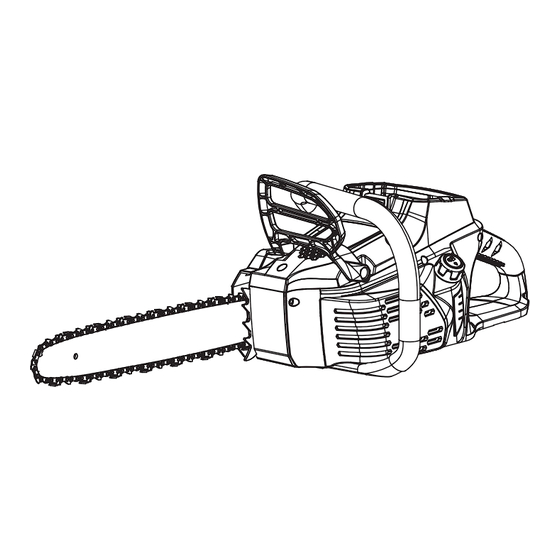

- Page 1 80V BRUSHLESS CHAINSAW 239-1523 2000094ME CSB401 OPERATOR’S MANUAL CAUTION To Reduce The Risk Of Injury, User Must Read And Understand Operator’s Manual. Save These Instructions For Future Reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Symbols ......................Page 2 Safety Instructions ...................... Page 3 Overview ........................Page 8 Assembly ........................Page 10 Operation ........................Page 11 Maintenance ......................Page 14 Troubleshooting ......................Page 17 Notes ........................Page 19 Warranty ........................Page 22... -
Page 3: Safety Symbols
SAFETY SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. Symbol Name Designation / Explanation Volts Voltage Amperes... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS The purpose of safety symbols is to attract our attention to possible dangers. The safety symbols, and the explanations with them, deserve your careful attention and understanding. The symbol warnings do not by themselves eliminate any danger. The instructions and warnings they give are no substitutes for proper accident prevention measures. - Page 5 • K e e p c h i l d r e n a n d b y s t a n d e r s hazards. away while operating a power tool. Distractions can cause you to lose control. • Use only Masterforce Batteries: BAB726 or other BAB series. • Use only Masterforce Charger: CAB809 or ELECTRICAL SAFETY other CAB series.
- Page 6 SAFETY INSTRUCTIONS SERVICE • Store idle power tools out of the reach of children and do not allow persons • Have your power tool serviced by a unfamiliar with the power tool or these qualified r epair p erson using only instructions to operate the power tool.
- Page 7 SAFETY INSTRUCTIONS precautions as given below: and/or throw the chainsaw out of control. • Use ex treme caution when cut ting • M a i n t a i n a f i r m g r i p , w i t h t h u m b s brush and saplings.
- Page 8 SAFETY INSTRUCTIONS area and under the watchful care of a responsible adult. • Do not allow children under the age of 14 to operate this chainsaw. Children who are 14 years of age and older must read and understand the operating instructions and safety rules in this m a n u a l a n d m u s t b e t r a i n e d a n d supervised by a parent.
-
Page 9: Overview
OVERVIEW Scabbard Front hand guard / Chain Brake On/Off Switch Rear Handle Guide Bar Chain Tension Screw Chain Cover Nuts Chain Cover On-Board Wrench Storage Oil tank cap Oil Indicator Lock out button Front Handle Saw Chain Page 8... - Page 10 SPECIFICATIONS Type Cordless, battery operated Motor 80V Brushless No load speed 11 m/s Guide bar length 18'' (458 mm) Chain pitch 3/8” (9.5 mm) Chain gauge 0.05” (1.27 mm) Drive links Chain oil capacity 200 ml 11 lbs (4.98 kg) Weight ((without battery pack) Chain 91P062X...
-
Page 11: Assembly
ASSEMBLY UNPACKING INSTALL THE BATTERY PACK This product requires assembly. WARNING Follow these instruc- • Carefully remove the product and any tions in order to avoid injury and to reduce the accessories from the box. Make sure that all risk of electric shock or fire: items listed in the package contents section •... -
Page 12: Operation
OPERATION EXAMINE THE CHAIN OIL FIG. 4 NOTE: Do not use the machine without On/Off switch sufficient chain oil. BRAKE ON 1. Examine the oil level of the machine from the oil indicator. 2. Add the oil if it is necessary. HOLD THE MACHINE 1. - Page 13 OPERATION the tree fall in the correct direction. 2. Hit utility lines. If the tree touches 4. When the tree starts to fall, utility lines, immediately tell the utility • Remove the chainsaw from the cut. company. • Stop the machine. 3.
- Page 14 OPERATION BUCK A LOG FIG. 11 To buck is to cut a log into lengths. CAUTION Do not let the chain saw touch the ground. It is important to make sure your footing is se- cure and your weight is evenly distributed. If possible, lift the log and hold it with branches, logs or chock.
-
Page 15: Maintenance
MAINTENANCE FIG. 15 CAUTION Do not let brake fuids, gasoline, petroleum-based materials touch the plastic parts. Chemicals can cause damage to the plastic, and make the plastic unserviceable. CAUTION Do not use strong solvents or detergents on the plastic housing or components. CAUTION Remove the battery pack from the machine before maintenance. - Page 16 MAINTENANCE ADJUST THE CHAIN TENSION hang approximately 1/16 in. (1,58 mm) out of the bar groove. The more you use a chain the longer it be- FIG. 19 comes. It is therefore important to adjust the chain regularly to take up the slack. Tension the chain so that it can only just be pulled away from the bar at its centre point.
- Page 17 MAINTENANCE FIG. 22 FIG. 23 4. File all the cutters to the specified angles and the same length. NOTE: During the process, Replace the bar if: • Keep the file flat with the surface to be • the groove does not fit with the height of sharpened.
-
Page 18: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION The guide bar and The chain is too tight. Adjust the chain tension. the chain become The oil tank is empty. Add oil. hot and release smoke. Contamination causes a Remove the guide bar and clean the blockage of the discharge discharge port. - Page 19 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION The motor runs, The machine is in the Release the trigger and start the machine but the chain does protection mode to protect again. Do not force the machine to cut. not cut correctly, the PCB. or the motor stops The battery is not charged.
- Page 20 EXPLODED VIEW ITEM NO. PART NO. DESCRIPTION R0201688-00 R0200049-00 Sprocket Kit R0201689-00 Oil Cap Assembly R0200016-00 Wrench RB341041075 Front hand guard R0201690-00 Side Cover Assembly R0200881-00 Tension Block Assembly R0201691-00 Auxiliary Handle Kit RB341182031B Scabbard R0201616-00 Chain Page 19...
-
Page 21: Notes
NOTES Page 20... - Page 22 NOTES Page 21...
-
Page 23: Warranty
WARRANTY 4-YEAR LIMITED WARRANTY This MASTERFORCE™ brand power tool carries our famous No Hassle 4-Year Limited Warranty to the original purchaser. If, during normal use, this MASTERFORCE™ power tool breaks or fails due to a defect in material or workmanship within four (4) years from the date of original purchase, simply bring the tool with the original sales receipt back to your nearest MENARDS ®... - Page 24 © 2019 Menard, Inc., Eau Claire, WI 54703 12/2019 Page 23...
Need help?
Do you have a question about the CSB401 and is the answer not in the manual?
Questions and answers
What pitch is the cutters on the chain. From measurements I know it is 3/8th but is that low profile?
The pitch of the cutters on the MasterForce CSB401 chain is 3/8 inch. Yes, 3/8 inch is considered low profile when it refers to the 3/8" low profile (3/8LP) chain type, which is common for smaller saws.
This answer is automatically generated
