- Page 2 OPERATION MANUAL DECKARD'S VOICE AN ENTRY LEVEL SEMI-MODULAR SYNTH FOR EURORACK SYSTEMS BY BLACK CORPORATION...
- Page 3 FCC COMPLIANCE STATEMENT This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. EUROPEAN UNION REGULATION COMPLIANCE STATEMENT This product complies with the Low Voltage Directive 2006/95/EC and the Electromagnetic Compatibility Directive 2004/108/EC.
-
Page 4: Installation
OPERATION MANUAL DECKARD'S VOICE INTRODUCTION Thank you for purchasing Deckard’s Voice, an entry level semi-modular synth for eurorack systems. Sharing the same paradigm and circuit as its bigger brother, Deckard’s Dream, Deckard’s Voice is trimmed down for eurorack and supplemented with the flexibility available only in modular format. -
Page 5: Panel Layout

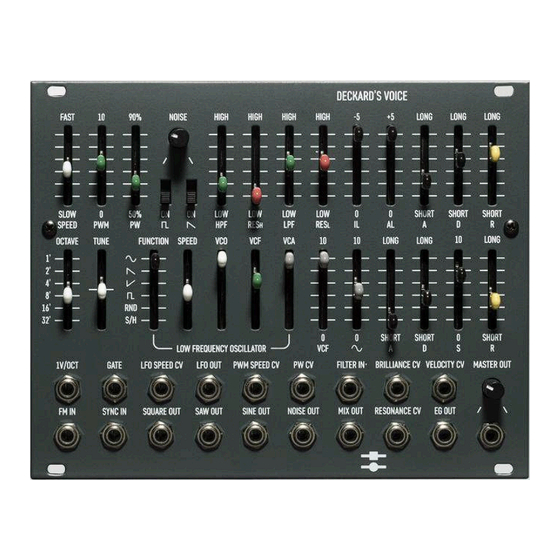

OPERATION MANUAL DECKARD'S VOICE PANEL LAYOUT CONTROLS ● PULSE WIDTH MODULATION LFO SPEED: sets speed of PWM LFO. ● PULSE WIDTH MODULATION LFO AMOUNT: determines amount of pulse width modulation, from 0 to 10. ● MANUAL PULSE WIDTH SETTING: manually sets pulse width from 50% (square wave) to 90% (thin pulse wave). - Page 6 OPERATION MANUAL DECKARD'S VOICE ● INITIAL LEVEL: Sets start of filter envelope relative to cutoff frequency of filter. Filter cutoff is modulated starting with a frequency lower than HPF/LPF cutoff settings. As IL is increased (max -5), starting frequency will be lower.
- Page 7 OPERATION MANUAL DECKARD'S VOICE Switch 1 Switch 2 LFO (HZ) A (sec) S/R (sec) Off .1-50 .001-10 .001-15 Off .05-30 .001-50 .001-50 .1-50 .001-50 .001-50 INPUTS/OUTPUTS 1V/OCT: Controls the pitch of the VCO, typically sent from a 1V/OCT keyboard, sequencer or LFO.
- Page 8 OPERATION MANUAL DECKARD'S VOICE CALIBRATION As every modular setup is unique, there will be occasions when Deckard’s Voice requires calibration. There are two types of calibration, OSCILLATOR and SLIDER. Before doing any of these procedures, power on the module for 20 minutes for it to warm up to regular usage temperature.
- Page 9 OPERATION MANUAL DECKARD'S VOICE Roman Filippov Bob Akber Aleksandr Kholenko Black Corporation G.K., All Rights Reserved 2024.
