WA-25
PAN/TILT WALL ARM

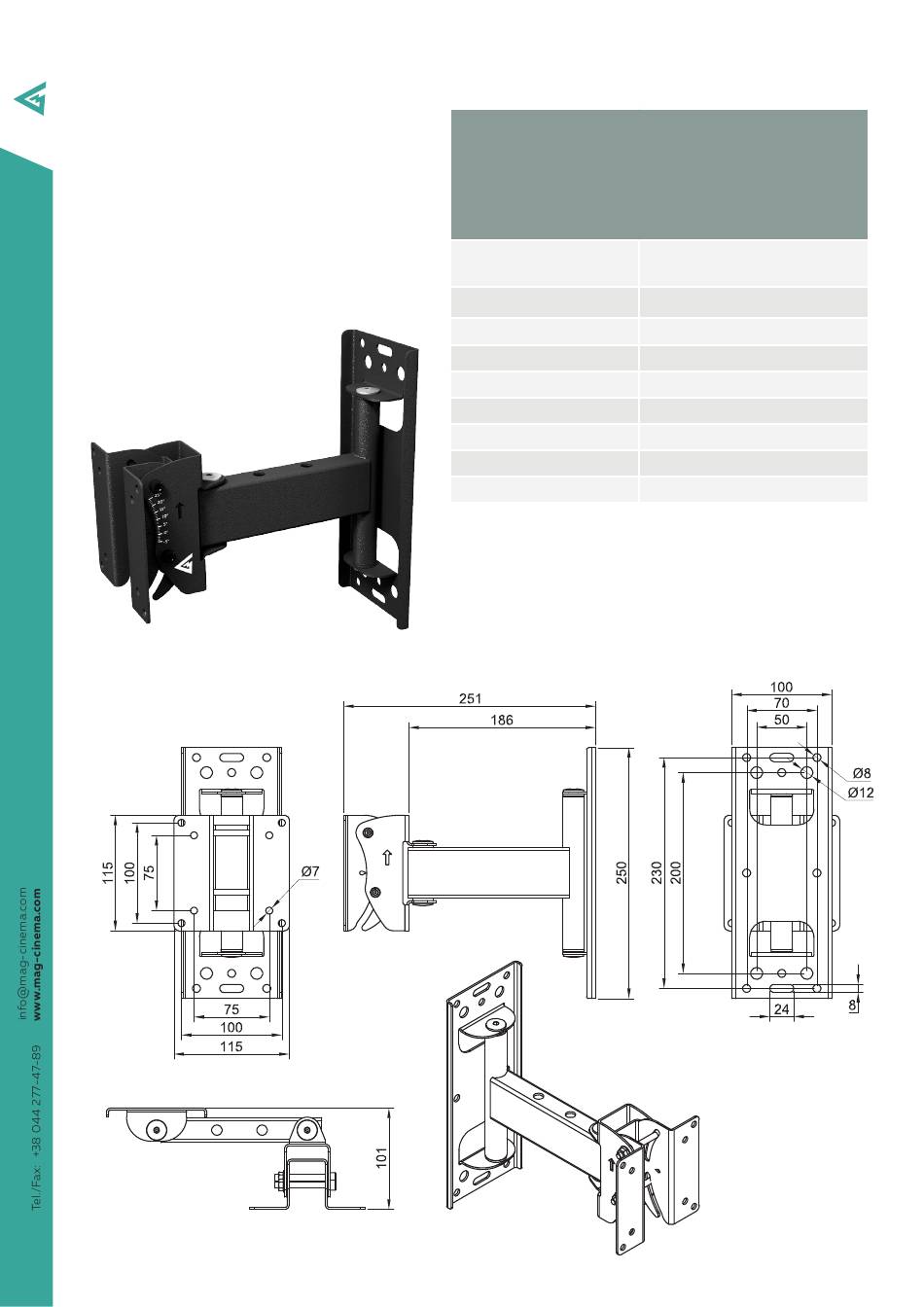

WA-25 is a versatile pan/tilt wall
arm mounting adapter. Suitable
for small to large surround speak-
ers with maximum load weight of
45 kg.
Main features:
• Pan and tilt
• VESA 100x100,and 75x75 mounting
hole patterns
• 250x100 wall mounting plate
Distance bracket
Functions
Pan
Tilt
VESA 100x100 mm
Mounting holes
VESA 75x75 mm
Wall mounting plate
250x100 mm
Pan angle
+180 deg / -180 deg
Tilt angle
+5 deg/ -25 deg
Load limit
45 kg
Dimensions
250x251x115 mm
Weight
1,9 kg
Item No
0200150025
