elock EL-RL100 Installation Manual

EL-RL100
Electric Lock Series
Features
EL-RL100 Electric Rim Lock (12V)
supports electrical control or
key operation. It has functions of high guard and high security, e.g.
protect non-key's unlock after message feedback. Fits for building
intercom or access control systems. Could be mounted in residential
building, commercial housing, hotel, warehouse, organ, school, etc.
EL-RL100
Installation Guide
Use the self-contained screws to install lock body, cylinder and door
holder into the door edge or door frame. Proposed 5mm minimum
installation distance from lock body to door holder.

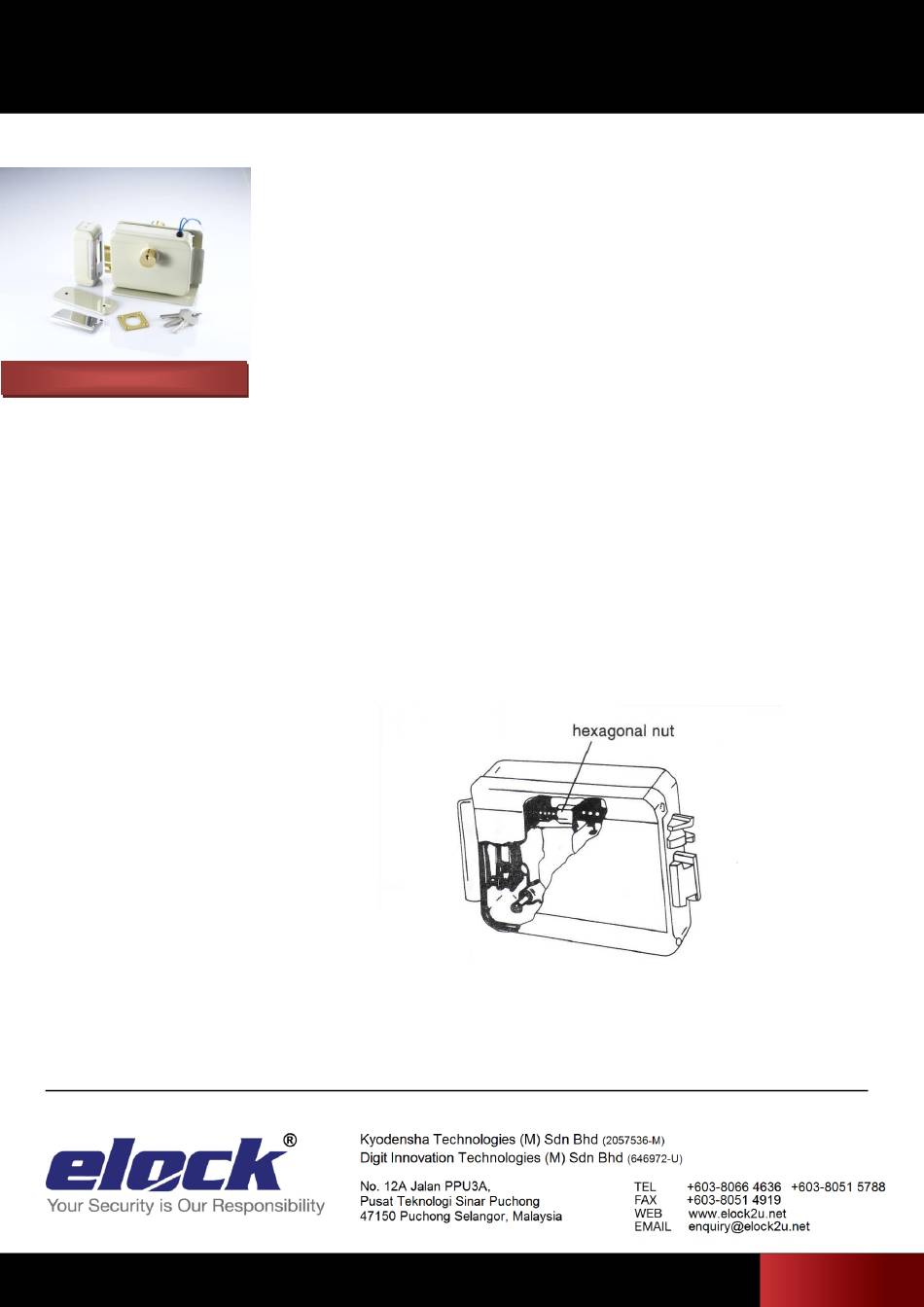

The loading spring is adjustable with the door's weight and door
closer's power. Adjust the hexgonal nut by a no.12 spanner or a pair
of pliers if it locks in a big noise or cannot close.
Dead bolts could change direction according to the open type.
Use a 9~12VDC voltage and a power higher than 12W. Push or turn
the button, lock could automatic unlock after 1 second.
