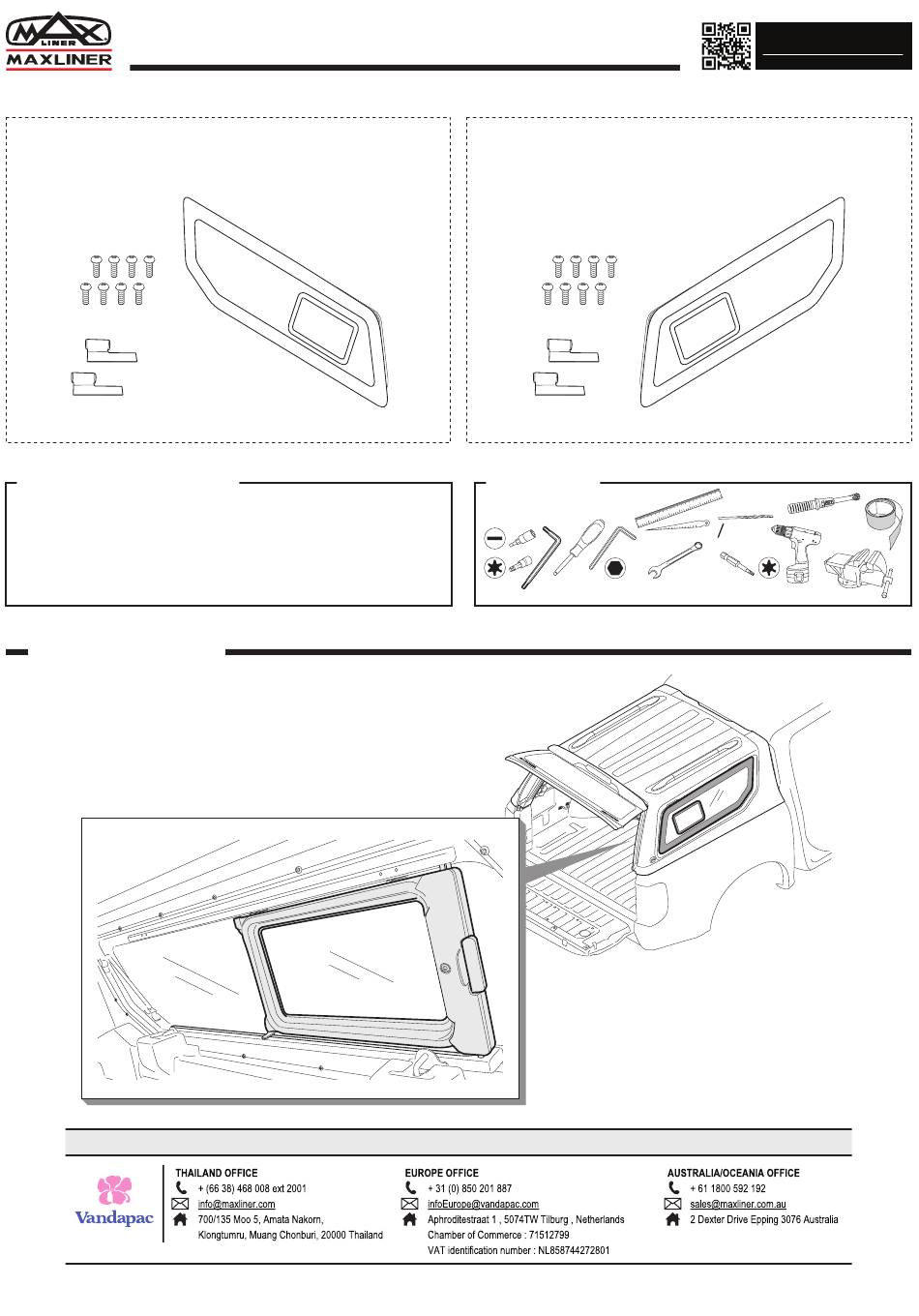

SERVICE PART INSTALLATION MANUAL
Slide in lift up side window LH
F554018674
Caution for installation
Read this mounting manual carefully, before your start the installation.
1. Area where to install product should be clean.
2. During installation, person who installed should take off any ornaments.
Installation overview
Contact us
Slide in lift up side window RH
F554018675
Tools used
T20
No.4,5
1/14
www.maxliner.com
O 3.2
No.12
T20
