Satco NUVO 65-403 Installation And Safety Instructions

LED HORIZONTAL STEP LIGHT
Models: 65-403, 65-404, 65-407, 65-408, 65-411, 65-412
INSTALLATION AND SAFETY INSTRUCTIONS
IMPORTANT: Read before installing fixuture. Retain for future reference.
WARNING:
• To reduce the risk of personal injury or property damage from fire,
electric shock, falling parts, cuts/abrasions, and other hazards read
all warnings and instructions included with and on the fixture and all
fixture labels.
• Commercial installation, service and maintenance of luminaries should
be performed by a qualified licensed electrician. For The installation:
If you are unsure about the installation or maintenance of the
luminaries, consult a qualified licensed electrician and check your
local electrical code.
• Turn off electrical power at fuse or circuit breaker before wiring fixture
to the power supply.
• Turn off the power when you perform any maintenance.
• All connections should be capped with UL approved wire connectors.
• Minimum size 18 AWG or 14 AWG for continuous runs.
• Risk of Burn. Disconnect power and allow fixture to cool
before handling.
• Verify that supply voltage is correct by comparing it with the
luminaire label information.
GROUNDING INSTRUCTIONS:
• The grounding and bonding of the overall system shall be
done in accordance with NEC Article 600 and local codes.
INSTALLATION:
1. Turn off the power

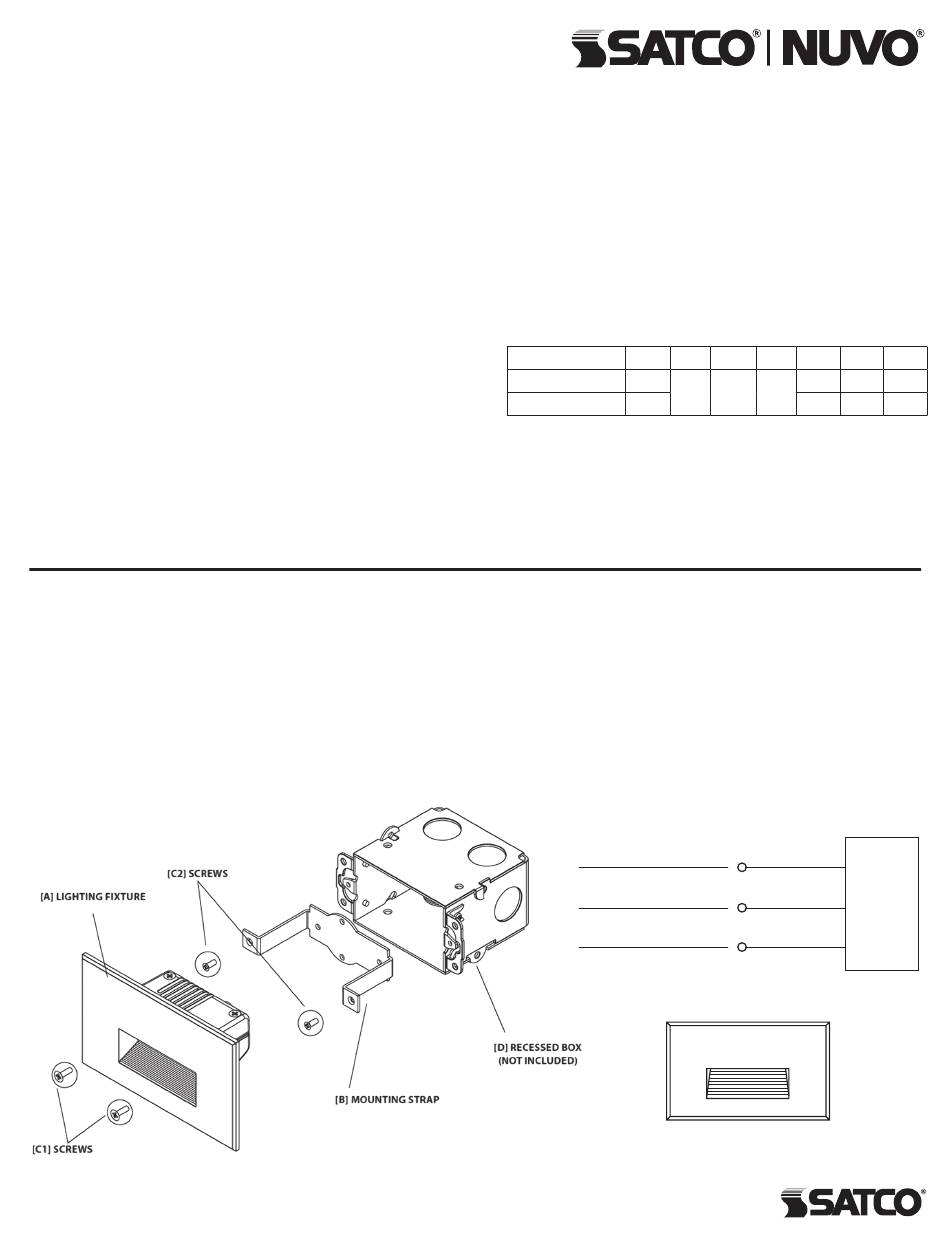

2. Feed wires from [A] Lighting Fixture through the [B]
Mounting Strap into the [D] Recessed Box.
3. Connect Main Voltage supply wire to Black luminaire
wire (+). See Wiring Diagram.
4. Connect Neutral (Common) supply wire to White
luminaire wire (–). See Wiring Diagram.
© Copyright 2017 Satco Products, Inc. 7/17
PRODUCT INFORMATION:
• Dimensions: Length 5.03" x Width 3.07" x Height 1.57"
• Weight: 0.46 lbs.
• Recessed lighting fixture. Housing made by aluminum alloy
with safety glass.
• Suitable for wet location.
• Suitable for mounting within 1.2m (4ft) off the ground.
• 5-Year Warranty.
PRODUCT SPECIFICATIONS:
Model # Volts Watts
65-403, 65-407, 65-411 120V
5W
65-404, 65-408, 65-412 227V
ELECTRICAL REQUIREMENTS:
• The LED driver must be suplied with 120 or 277V, 50/60 Hz
and connected to an individual, properly grounded branch circuit
protected by a 20 ampere circuit breaker. Use min. 75°C supply.
TOOLS REQUIRED:
• Wire Strippers
• Wire Cutters
5. Connect Green ground wire to Green luminaire wire.
See Wiring Diagram.
6. Assemble [B] Mounting Strip with [D] Recessed Box.
7. Assemble [A] Lighting Fixture with Fixed Mounting
Strap inside the Recessed Box. Make sure the lighting
fixture is oriented correctly.
8. Turn on the power.
MAIN VOLTAGE SUPPLY
NEUTRAL (COMMON)
GROUND CONNECTION
Lumens Kelvin Bronze White
65-403 65-407
407 3000K
65-404 65-408
WIRING DIAGRAM
BLACK WIRE (+)
WHITE WIRE (–)
FIXTURE
GREEN WIRE
Satco Products, Inc.
Brentwood, NY 11717
Gray
65-411
65-412
