ANBAUANLEITUNG
mounting instructions • instructions de montage • instrucciones de montaje • istruzioni di montaggio

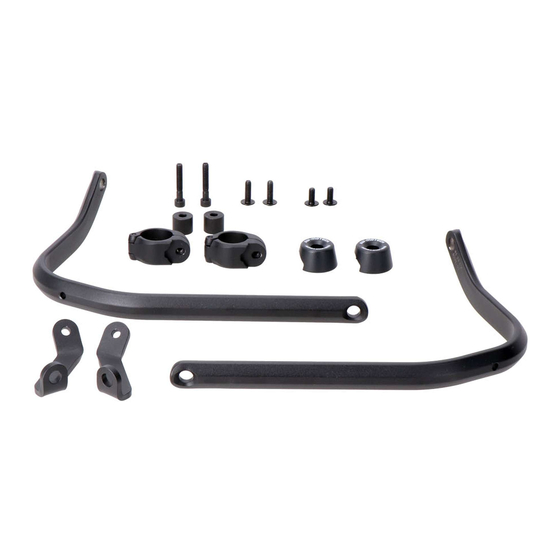

ADV.01.070.76004
beinhaltet • contains • contient • contiene • contiene
SBL.01.070.10002/B
MSS.01.070.10001/B
HDG.00.220.81402/B
HDG.00.220.10000/B

Advertisement

loading
Need help?

Need help?

Do you have a question about the ADV.01.070.76004 and is the answer not in the manual?

Questions and answers

Related Manuals for SW-Motech ADV.01.070.76004

Summary of Contents for SW-Motech ADV.01.070.76004

  • Page 1 ANBAUANLEITUNG mounting instructions • instructions de montage • instrucciones de montaje • istruzioni di montaggio ADV.01.070.76004 beinhaltet • contains • contient • contiene • contiene SBL.01.070.10002/B MSS.01.070.10001/B HDG.00.220.81402/B HDG.00.220.10000/B...

  • Page 2: Safety Warning Symbol

    ~ 1.5 h. EASY DIFFICULT ENGLISH ·Thank you for choosing this premium product from SW-MOTECH. PREPARATION: Read the mounting instructions carefully and make sure Visit our online shop for more information (e.g. model assignments). Required that all parts on the parts list are available.
  • Page 3 Do not use thread lock: Indicates that no liquid thread lock should be used at this point. The content translation is automated. Errors and omissions excepted © SW-MOTECH GmbH & Co. KG Subject to technical and design changes.
  • Page 4 Ø 22 / ø 8,4 / h 6 M8; DIN 6927 M6 x 16; DIN 912 SBL.01.070.003.11 SC.ST.08.050.02.912.088 US.ST.084.02.125 DB.ST.0220.0084.0060.02 MU.ST.08.02.6927.08 SC.ST.06.016.02.912.088 M6; DIN 985 MU.ST.06.01.985.08 The content translation is automated. Errors and omissions excepted © SW-MOTECH GmbH & Co. KG Subject to technical and design changes.
  • Page 5  WARNING: Ensure the engine is properly supported using a corresponding jack! Remove the original side panels from both sides of the vehicle. The content translation is automated. Errors and omissions excepted © SW-MOTECH GmbH & Co. KG Subject to technical and design changes.
  • Page 6 MOUNTING STEP · READ AND KEEP MOUNTING INSTRUCTIONS! Remove the indicated screws. The content translation is automated. Errors and omissions excepted © SW-MOTECH GmbH & Co. KG Subject to technical and design changes.
  • Page 7 WARNING: Fully complete steps [3] and [4] on the left side of the vehicle before starting on the right side! Remove the indicated screws. The content translation is automated. Errors and omissions excepted © SW-MOTECH GmbH & Co. KG Subject to technical and design changes.
  • Page 8 Do not tighten screws (3), (4) and (5) yet. × × × 42 Nm × 42 Nm × × × The content translation is automated. Errors and omissions excepted © SW-MOTECH GmbH & Co. KG Subject to technical and design changes.
  • Page 9 (15) as specified in the mounting instructions. 23 Nm Tighten the screws (5) according to the manufacturer's instructions. × × × × 9.6 Nm × The content translation is automated. Errors and omissions excepted © SW-MOTECH GmbH & Co. KG Subject to technical and design changes.
  • Page 10 MOUNTING STEP · READ AND KEEP MOUNTING INSTRUCTIONS! Finally, reattach the side panel. The content translation is automated. Errors and omissions excepted © SW-MOTECH GmbH & Co. KG Subject to technical and design changes.
  • Page 11 TÜV regulations. After installation, parts subject to registration should be entered in the vehicle documents by your test center. The content translation is automated. Errors and omissions excepted © SW-MOTECH GmbH & Co. KG Subject to technical and design changes.

  • Page 12: Engine Guard

    ~ 0.5 h. EASY DIFFICULT ENGLISH ·Thank you for choosing this premium product from SW-MOTECH. PREPARATION: Read the mounting instructions carefully and make sure Visit our online shop for more information (e.g. model assignments). Required that all parts on the parts list are available.
  • Page 13 Use thread locker: Indicates that a thread must be coated with liquid thread locker. H (HIGH): high strength; M (MEDIUM): medium strength; L (LOW): low strength. The content translation is automated. Errors and omissions excepted © SW-MOTECH GmbH & Co. KG Subject to technical and design changes.
  • Page 14 M8 x 16; DIN 933 ø 8,4; DIN 125 M8 x 25; DIN 7991 ø 8.4 MSS.01.070.900.01.02 SC.ST.08.016.01.933.109 US.ST.084.01.125 SC.ST.08.025.02.7991.088 SE.00.084.02 The content translation is automated. Errors and omissions excepted © SW-MOTECH GmbH & Co. KG Subject to technical and design changes.
  • Page 15 Screw mounting brackets (1) and (2) to the vehicle on both sides. Do not tighten the screw yet. × × 23 Nm × 23 Nm × × × The content translation is automated. Errors and omissions excepted © SW-MOTECH GmbH & Co. KG Subject to technical and design changes.
  • Page 16 (11), screws (9) underneath, screws (9) in front, screws (4) and screws (3). × 23 Nm × × 20 Nm × The content translation is automated. Errors and omissions excepted © SW-MOTECH GmbH & Co. KG Subject to technical and design changes.
  • Page 17 TÜV regulations. After installation, parts subject to registration should be entered in the vehicle documents by your test center. The content translation is automated. Errors and omissions excepted © SW-MOTECH GmbH & Co. KG Subject to technical and design changes.
  • Page 18 ~ 0.5 h. EASY DIFFICULT ENGLISH ·Thank you for choosing this premium product from SW-MOTECH. PREPARATION: Read the mounting instructions carefully and make sure Visit our online shop for more information (e.g. model assignments). Required that all parts on the parts list are available.
  • Page 19 Do not use thread lock: Indicates that no liquid thread lock should be used at this point. The content translation is automated. Errors and omissions excepted © SW-MOTECH GmbH & Co. KG Subject to technical and design changes.
  • Page 20 HDG.00.220.029R.25 SC.ST.06.035.02.912.088 HDG.00.220.012.25 DB.ST.0180.0064.0150.02 M6 x 22; DIN 7991 ø 6.4; DIN 9021 M6; DIN 6927 SC.ST.06.022.48.7991.088 US.ST.064.02.9021 MU.ST.06.02.6927.08 The content translation is automated. Errors and omissions excepted © SW-MOTECH GmbH & Co. KG Subject to technical and design changes.
  • Page 21 MOUNTING STEP · READ AND KEEP MOUNTING INSTRUCTIONS!  WARNING: Since the handguard mounting kit is installed in a safety- × relevant area of ​ ​ t he vehicle, SW-MOTECH recommends having the installation/maintenance of the product carried out by a qualified specialist workshop.
  • Page 22 To do so, tighten the screw (8) so that the brackets (6/7) can still be readjusted. × × 8 Nm × × The content translation is automated. Errors and omissions excepted © SW-MOTECH GmbH & Co. KG Subject to technical and design changes.
  • Page 23 BEFORE every ride, carry out a complete functional check of the handlebars and all fittings! The content translation is automated. Errors and omissions excepted © SW-MOTECH GmbH & Co. KG Subject to technical and design changes.
  • Page 24 TÜV regulations. After assembly, have parts that are subject to registration entered in the vehicle documents by your test centre. The content translation is automated. Errors and omissions excepted © SW-MOTECH GmbH & Co. KG Subject to technical and design changes.
  • Page 25 ~ 0.25 h. EASY DIFFICULT ENGLISH ·Thank you for choosing this premium product from SW-MOTECH. PREPARATION: Read the mounting instructions carefully and make sure Visit our online shop for more information (e.g. model assignments). Required that all parts on the parts list are available.
  • Page 26 Tighten by hand: Indicates that the attachment must be thread lock should be used at this point. carefully tightened by hand. The content translation is automated. Errors and omissions excepted © SW-MOTECH GmbH & Co. KG Subject to technical and design changes.
  • Page 27 PARTS LIST · READ AND KEEP MOUNTING INSTRUCTIONS! M3,5 x 12 HDG.00.220.002L.02 HDG.00.220.002R.02 HDG.00.220.008L.02 HDG.00.220.008R.02 HDG.00.220.009.02 SC.ST.035.012.02 The content translation is automated. Errors and omissions excepted © SW-MOTECH GmbH & Co. KG Subject to technical and design changes.
  • Page 28 Carefully tighten the screws (5) hand-tight (max. 1 Nm).  WARNING: Tightening too tightly can damage the plastic parts! × × × × The content translation is automated. Errors and omissions excepted © SW-MOTECH GmbH & Co. KG Subject to technical and design changes.
  • Page 29 TÜV regulations. After assembly, have parts that are subject to registration entered in the vehicle documents by your test centre. The content translation is automated. Errors and omissions excepted © SW-MOTECH GmbH & Co. KG Subject to technical and design changes.
