Beko CA7015FF Manual

Beko CA7015FF Manual

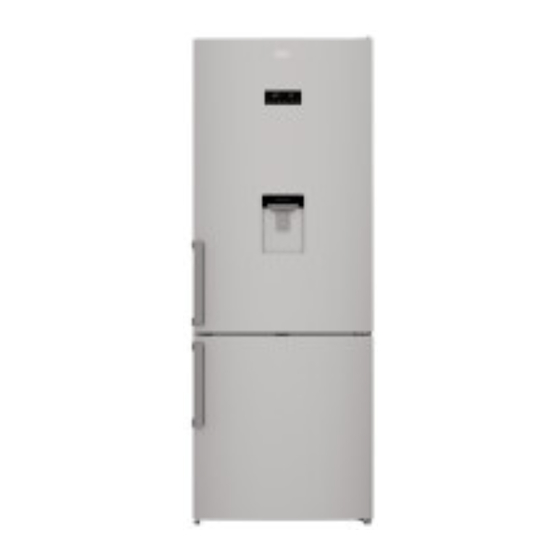

Frost free combi fridge freezer
Hide thumbs
Table of Contents

Advertisement

Quick Links

CA7015FF
CA7015FFX
CA7014FF
CA7014FFX

Advertisement

Table of Contents
loading

Related Manuals for Beko CA7015FF

Summary of Contents for Beko CA7015FF

  • Page 1 CA7015FF CA7015FFX CA7014FF CA7014FFX...

  • Page 2: Specification

    Do not connect your appliance to the electricity supply until all packing • and transit protectors have been removed. Leave to stand for at least 4 hours before switching on to allow the system • to settle if transported horizontally.

  • Page 4: Electrical Requirements

    If the fitted moulded plug is not suitable for your socket, then the plug should be cut off and an appropriate plug fitted. Destroy the old plug, which is cut off as a plug with a bared cord could cause a shock hazard if inserted into a socket elsewhere in the house.
  • Page 5 If during the course of transport the appliance has to be transported horizontally, the product must only be laid on its right hand side (when facing the door front) and it must not be operated for at least 4 hours to allow the system to settle after the appliance is brought back to upright position.
  • Page 6 • Do not put your appliance in a cold room where the temperature is likely to go below +5 degrees C (41 degrees F) during night time and/or especially in winter. • This appliance has been designed to operate in room (ambient) temperatures between +5 and +32 degrees C (41 and 90 degrees F).

  • Page 7: Installation

    Adjustable feet A special receptacle is supplied to store the mains plug during transit. The receptacle is fixed at the back of the cabinet on the Plug receptacle side of the compressor. Gently remove the plug from the receptacle.

  • Page 8: Switching On For The First Time

    Insert the plug in to the wall socket and switch on the electricity supply. • The blue mains on ‘power’ light on the door trim will be on when the appliance is connected to the mains. • When the fridge door is open, the interior light in the fridge compartment will come on.

  • Page 9: Temperature Control And Adjustment

    5 you will obtain a colder fridge and freezer temperature and vice versa. Some sections of the fridge may be cooler or warmer ( such as the salad crisper and the top part of the cabinet ) which is quite normal.

  • Page 10: Repositioning The Doors

    Reposition the hinge bushing and the tap on the freezer door. (14) Unscrew and reposition the bottom hinge bushing. (15) Unscrew bolt of the pin on the bottom hinge. Fit the pin to the other hole on the hinge and tighten the bolt on the new position. (16) Fit the bottom hinge and other feet, and tighten the screws.
  • Page 11 45 ° 180°...

  • Page 12: Short Term Storage In The Fridge Compartment

    • Capacity of water dispenser tank is 2.2 litres [3.8 pints], do not overfill. and storage Push the water dispenser lever with a rigid cup. If you are using a plastic disposable cup, then push the • store fresh food lever with your fingers from behind the cup.

  • Page 13: Long Term Storage In The Freezer Compartment

    Do not leave frozen food at room temperature to thaw; the best way to • defrost food is to put it in the fridge to thaw slowly. Make sure you avoid defrosting food or food juices drip onto other food.
  • Page 14 Crisper bins Bottle shelf for fresh fruit and Tall large bottles vegetables Twist & Serve ice cube trays and ice cube storage tray Make and store ice cubes Fast Freeze Compartment at the top...

  • Page 15: How To Use The Accessories

    Please note, how much water flows from the dispenser depends on how far you depress the lever. As the level of water in your cup / glass rises, gently reduce the amount of pressure on the lever to avoid overflow.
  • Page 16 To do this, slide the locking latch from left to right as illustrated in the figure. You must slide the latch back to left position in order to use the water dispenser. To avoid accidental water dispensing, we recommend you to lock the water dispenser.

  • Page 17: Energy Saving Tips

    • Ensure the time between buying chilled/frozen food and placing them in your appliance is kept to a minimum, particularly in summer. We recommend you use a cool bag or a special carrier bag to carry frozen food. • Don’t leave the door(s) of your appliance open longer than necessary and ensure they are closed properly after each opening.

  • Page 18: Care And Cleaning

    & cleaning Care If the appliance is not going to be used for a long period of time, switch it off, remove all food, clean it and leave the door ajar. Don’t use pointed sharp edged objects such as knives and forks to remove ice.

  • Page 19: Internal Light

    4. If the light still fails to work, switch off at the socket outlet and pull out the mains plug. Replace the bulb with a new 15 watt (max) screw cap (SES) bulb.
  • Page 20 Important notes. • Your Beko product is designed and built for domestic household use only. • The guarantee will be void if the product is installed or used in commercial or non-residential domestic household premises. • The product must be correctly installed, located and operated in accordance with the instructions contained in the User Instructions Booklet provided.
  • Page 21 You should also complete the details below; it will help us assist you when requesting service. (The model number is printed on the Instruction Booklet and...
  • Page 24 Printed in Turkey Part no: 48 0708 00 10 Revision no: 10...

This manual is also suitable for:

Ca7015ffxCa7014ffCa7014ffx
