- Page 1 INSTALLATION AND OPERATION MANUAL PAA-30 , PAA-60 , PAA-120 Mixer Amplifiers with Mp3/FM/BT Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty...
- Page 2 SAFTY WARNINGS! Read and keep these instructions. Heed all warnings and follow all instructions. Do not use this apparatus near water. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat. Do not defeat the safety purpose of the polarized or grounding-type plug.
- Page 3 INTRODUCTIONS Description The PA Mixer Amplifier with MP3, FM tuner & blue tooth, its rated power output from 30W, 60W to 120W, it is ideal for school, super market, bank, hotel BGM and speech use. It is all in one solution with two sources, pre amplifier and mixer power amplifier into one unit, which is economy but of high reliable performance.
-
Page 4: Front Panel

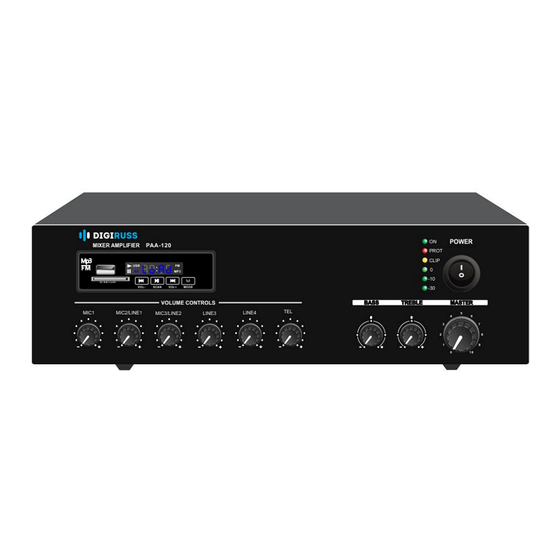

FRONT PANEL Mp3/FM/Blue tooth media player module. Mic/Line Input 3 Attenuator. Power indicator. 10. Line Input 1 Attenuator. Protection Indicator. 11. Line Input 2 Attenuator. Clip Indicator. 12. Tel Input Attenuator Output Level Meters. 13. Bass AC power switch. 14. Treble Mic1 Attenuator. -
Page 5: Speaker Terminals
AMPLIFIER OPERATION GUIDANCE 100V Line System For 100V line systems, connect the amplifier to the first speaker in the system using double-insulated speaker wire which has adequate current rating to handle the total output of the amplifier. Connect the “100V” output terminal to the positive (+) connection of the speaker and “COM” output to the negative (-) connection of the speaker. -
Page 6: Operation Steps
Operation Steps When all connections to the amplifier are made, turn all rotary controls down and switch on the power and a power “ON” LED will illuminate. Turn BASS and TREBLE controls to the 12 o’clock position (pointing straight up) and turn MASTER rotary control up part way for testing. -
Page 7: Music On Hold
Music on Hold This output will feed music on your telephone system or PABX for people waiting to be answered. A dedicated input should be available on your telephone system. Please refer to a qualified technician if you can’t identify this input. Outgoing signal should be connected to G and H. -
Page 8: Specification Sheet
SPECIFICATION SHEET Model PAA-30 PAA-60 PAA-120 Description PA Amplifier with USB/SD & FM & Blue Tooth Rated Power Output 120W Speaker Outputs 100V or 70V & 4Ohms-8 Ohms-16 Ohms Connector Mic1 input by balanced XLR with phantom power Input2-3 inputs Mic/Line switchable unbalanced 6.3mm phone jack Line1-2 inputs by RCA;...
